Home >> Mazda >> 2002 >> Millenia P V6-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Connector Views >> Computers and Control Systems

Computers and Control Systems

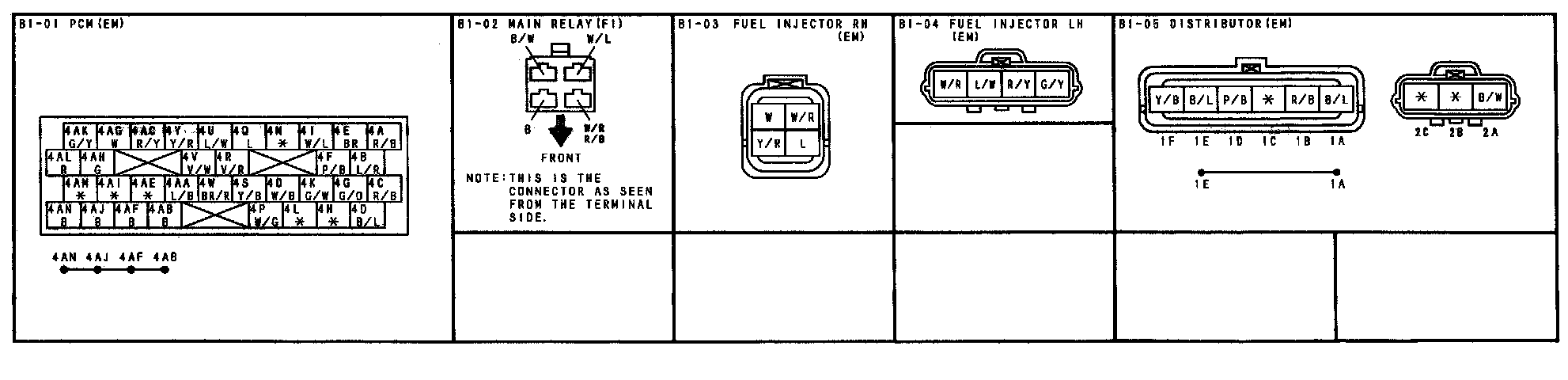

B-1a - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Connectors:

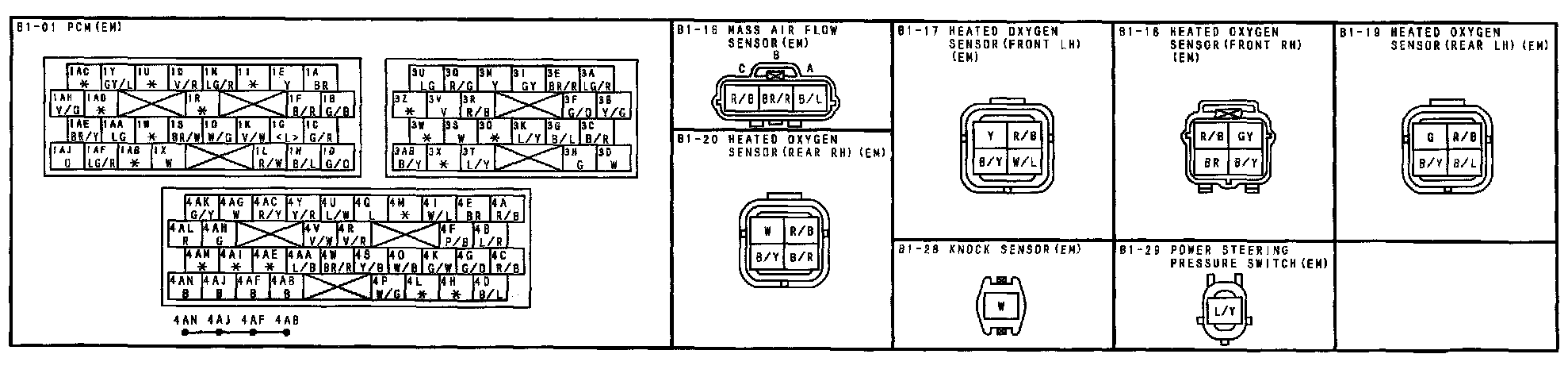

B-1b - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Connectors:

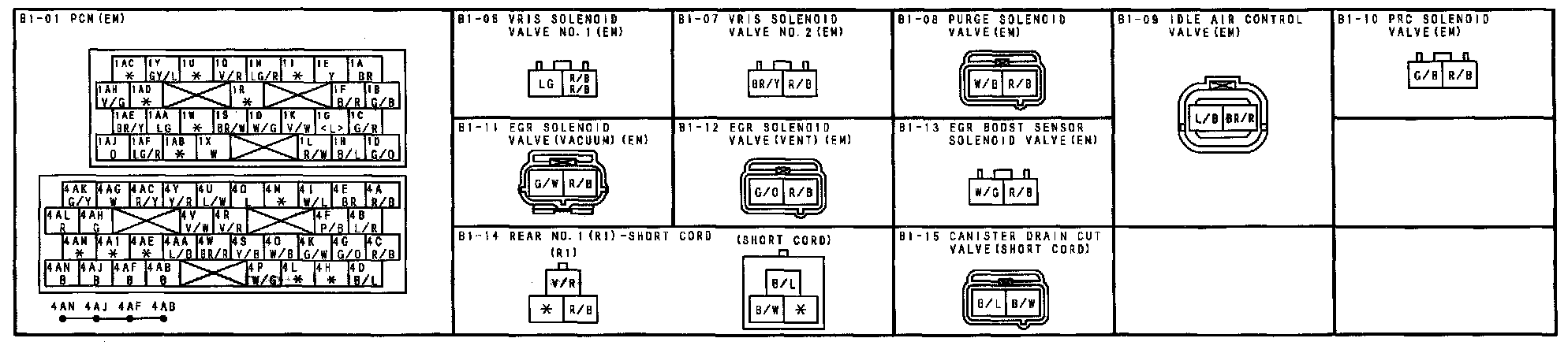

B-1c - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Connectors:

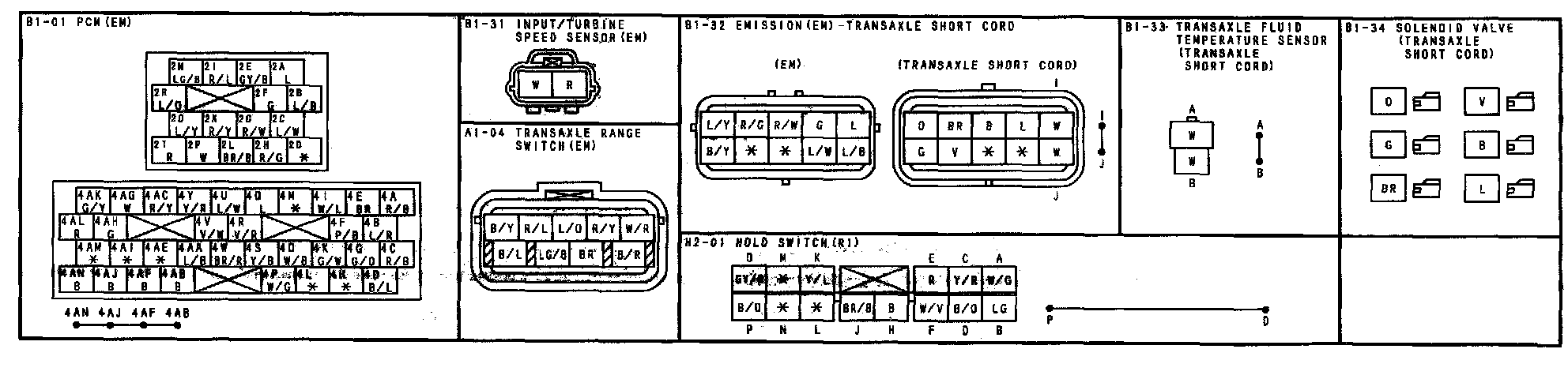

B-1d - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Connectors:

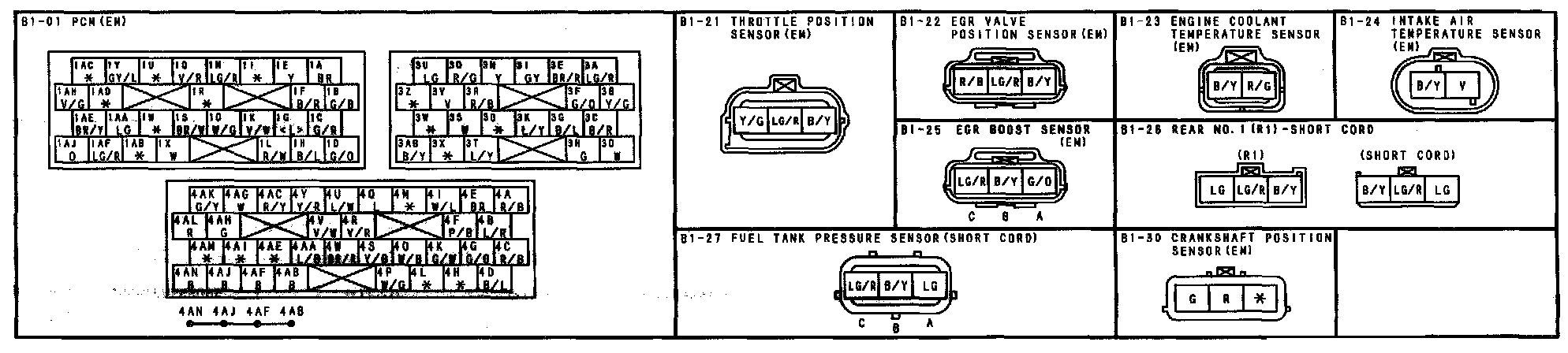

B-1e - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Connectors:
