Cruise Control Module: Service and Repair

CRUISE CONTROL MODULE REMOVAL/INSTALLATION

1. Remove the scuff plate and front side trim.

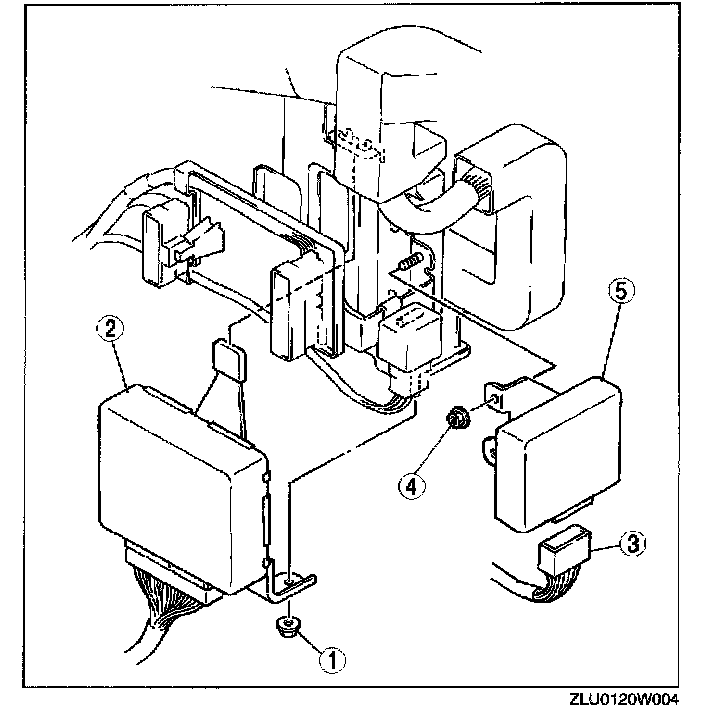

2. Remove in the order indicated below:
1. Nut
2. ABS/TCS control module
3. Cruise control module connector
4. Nut
5. Cruise control module

3. Install in the reverse order of removal.
