Central Control Module: Service and Repair

CPU REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the scuff plate.
3. Remove the front side trim.

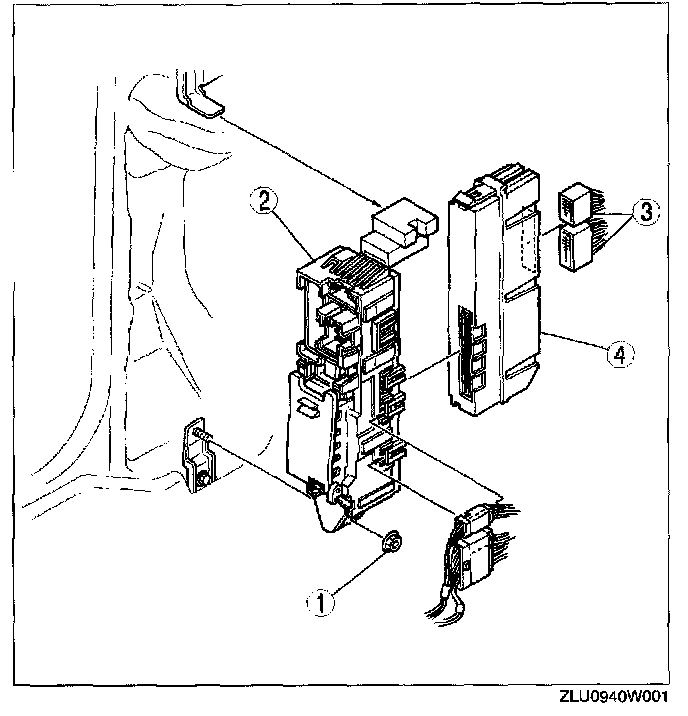

4. Remove in the order as indicated below.




1. Nut
2. Joint box
3. Connector
4. CPU

5. Install in the reverse order of removal.
