Computers and Control Systems

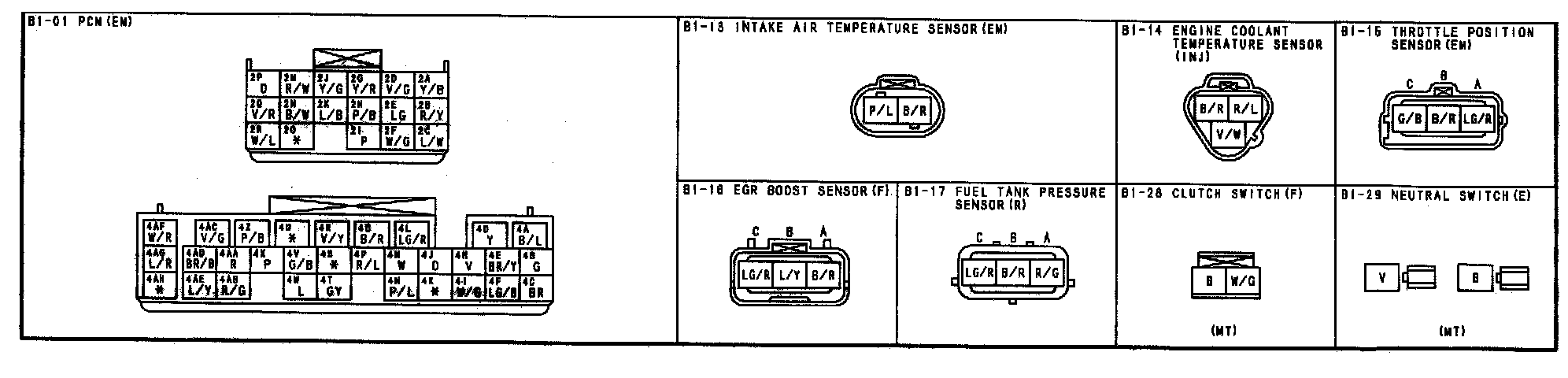

B-1a - Engine Control System Connectors:

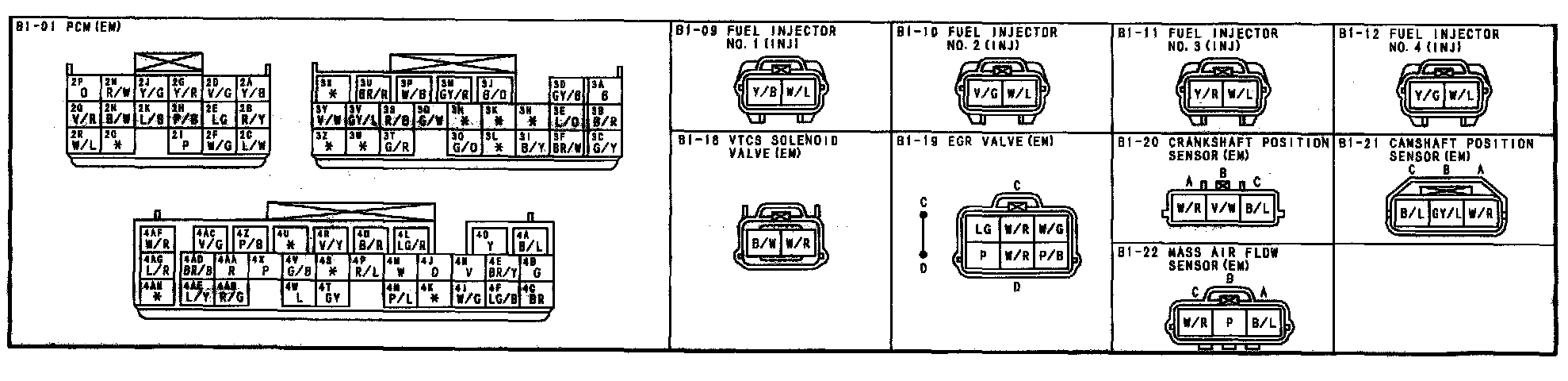

B-1b - Engine Control System Connectors:

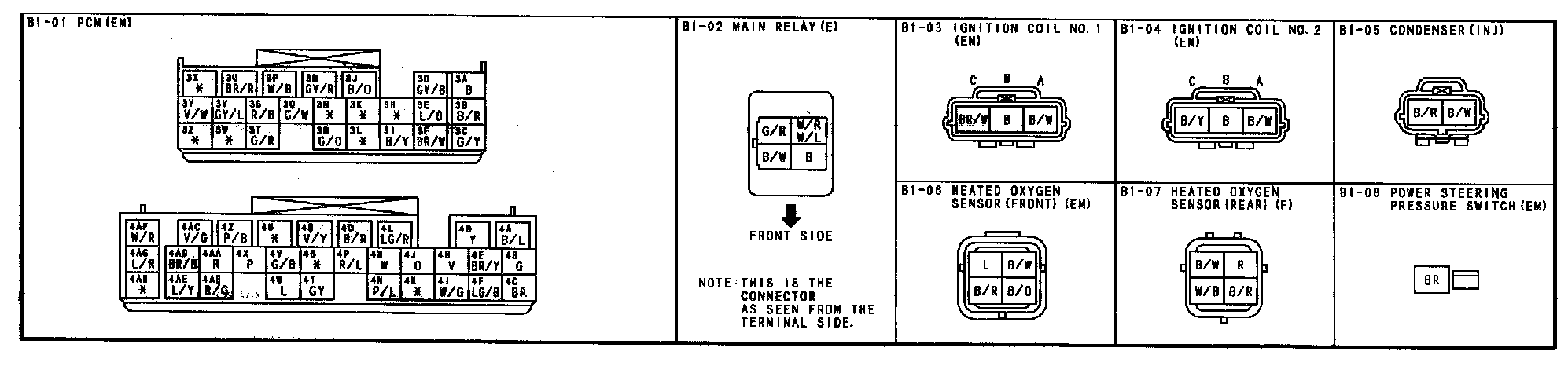

B-1c - Engine Control System Connectors:

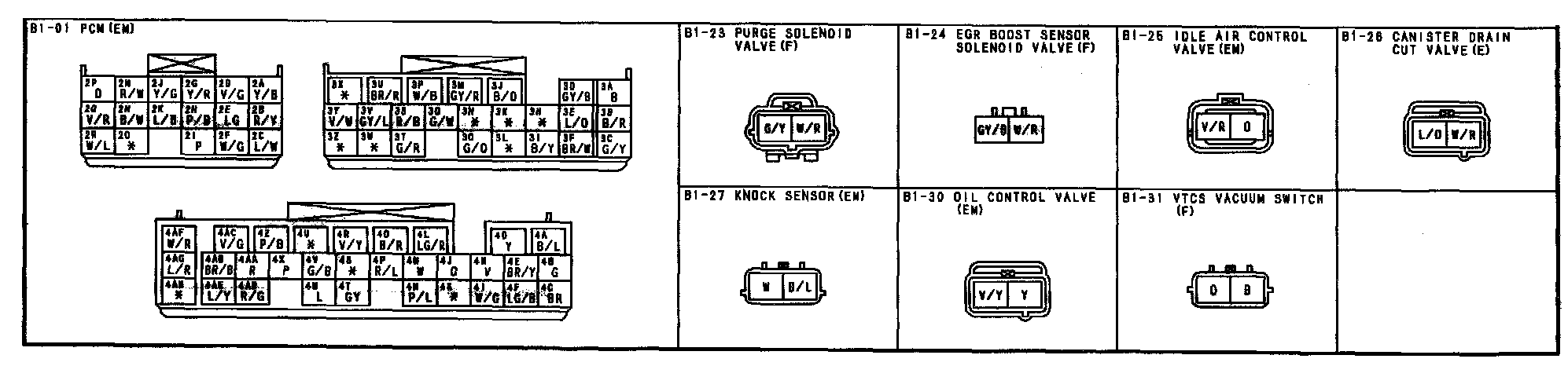

B-1d - Engine Control System Connectors:
