Engine Control Module

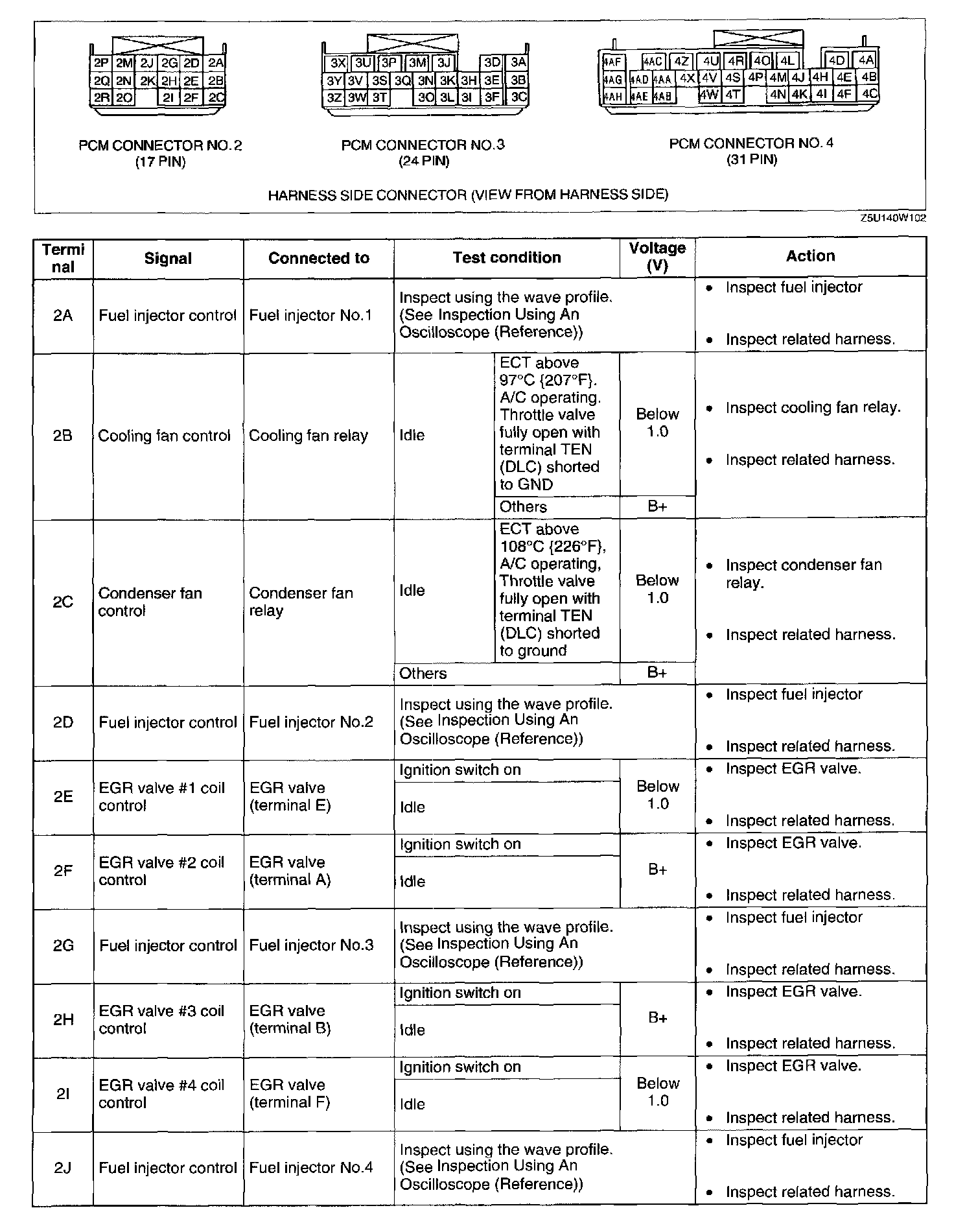

PCM Terminal Voltage Table (Reference) - Terminals (2A - 2J):

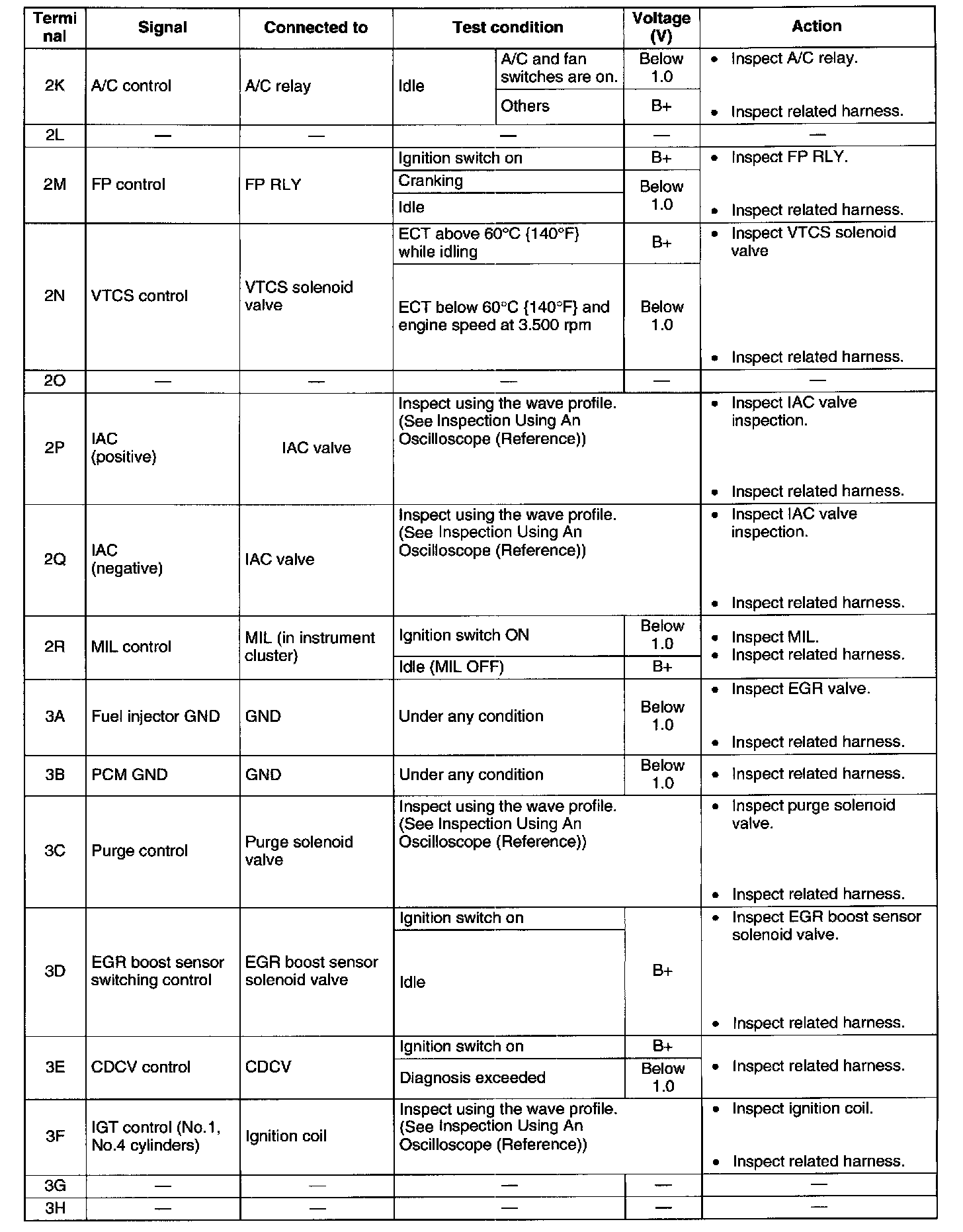

PCM Terminal Voltage Table (Reference) - Terminals (2K - 3H):

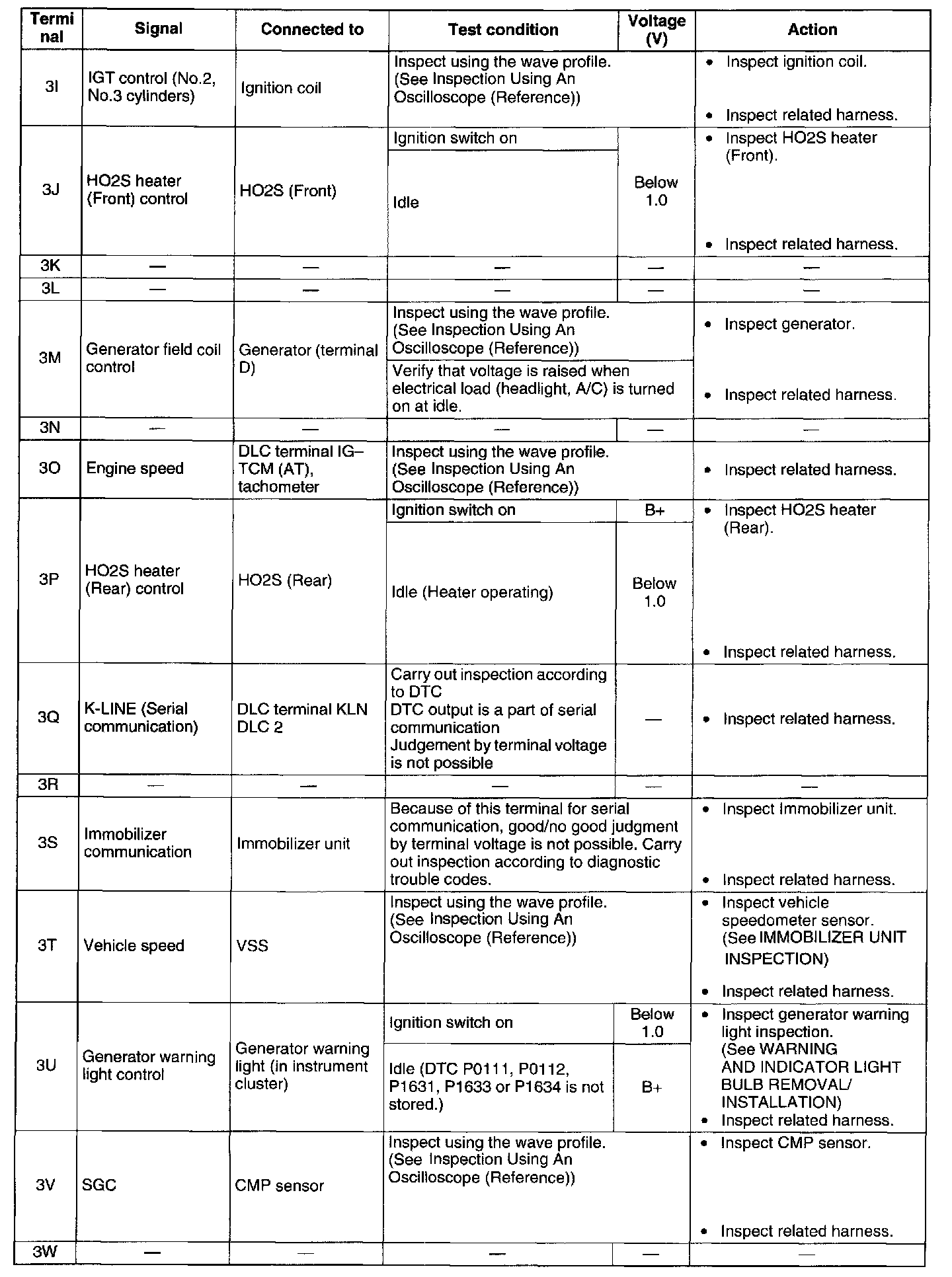

PCM Terminal Voltage Table (Reference) - Terminals (3I - 3W):

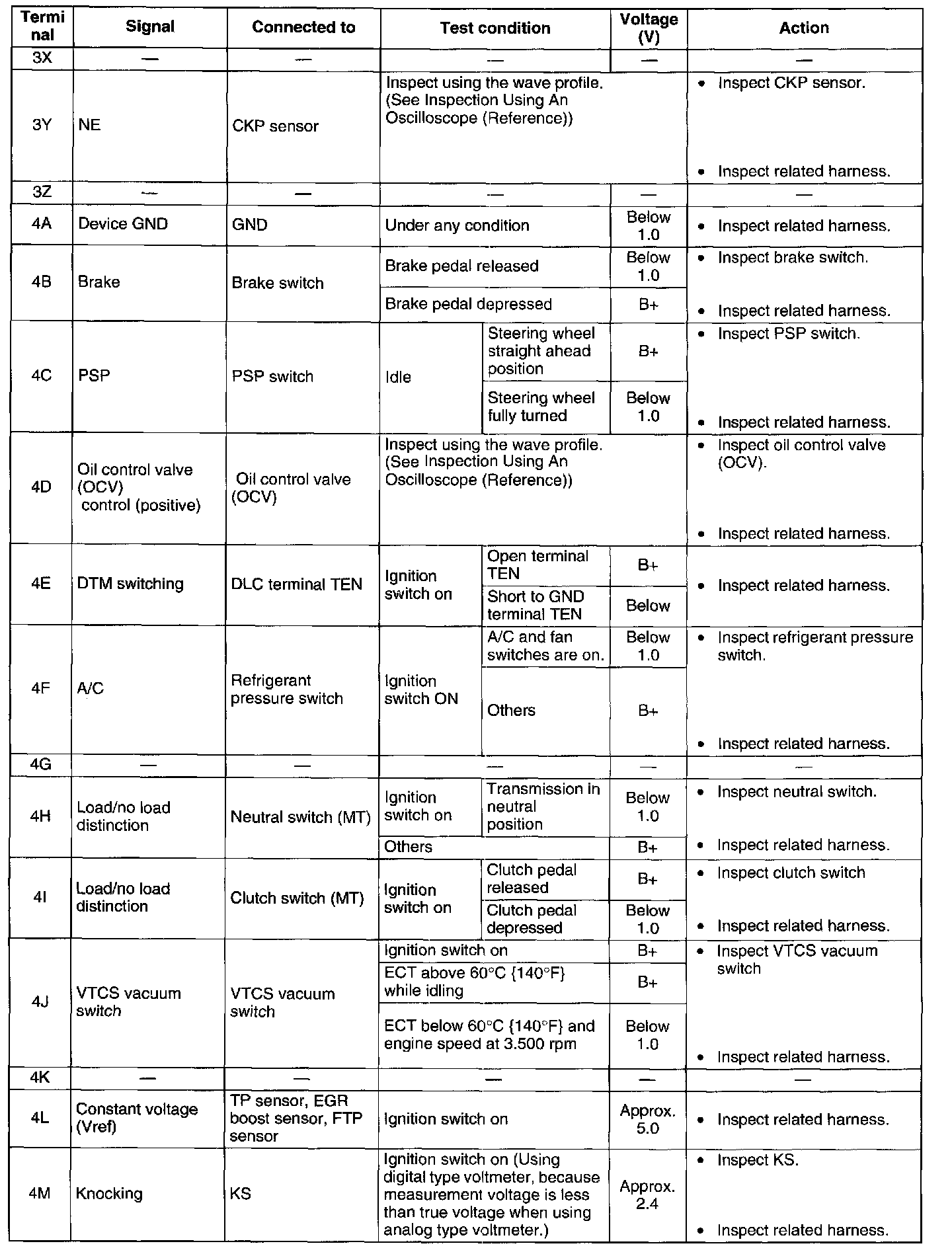

PCM Terminal Voltage Table (Reference) - Terminals (3X - 4M):

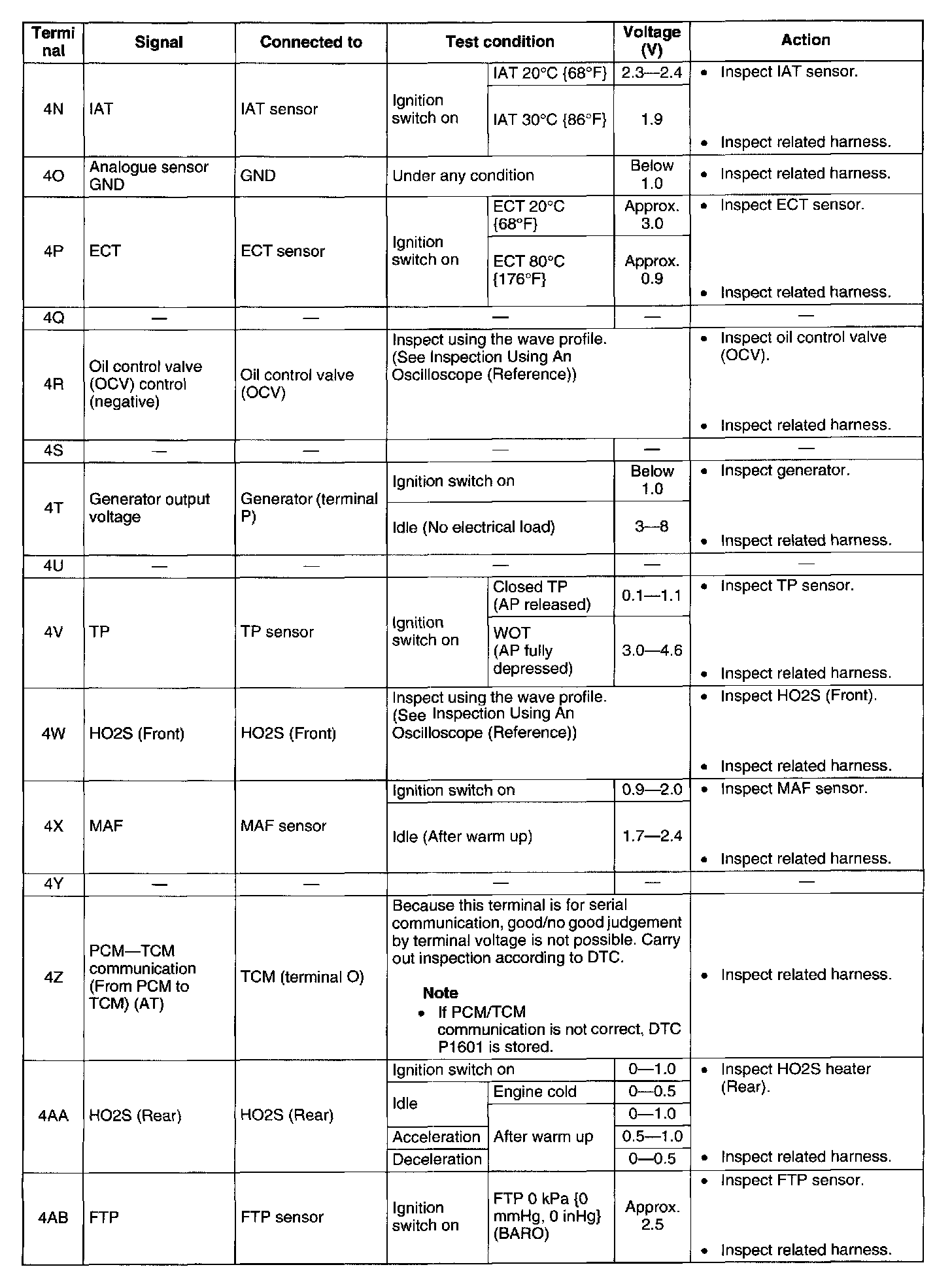

PCM Terminal Voltage Table (Reference) - Terminals (4N - 4AB):

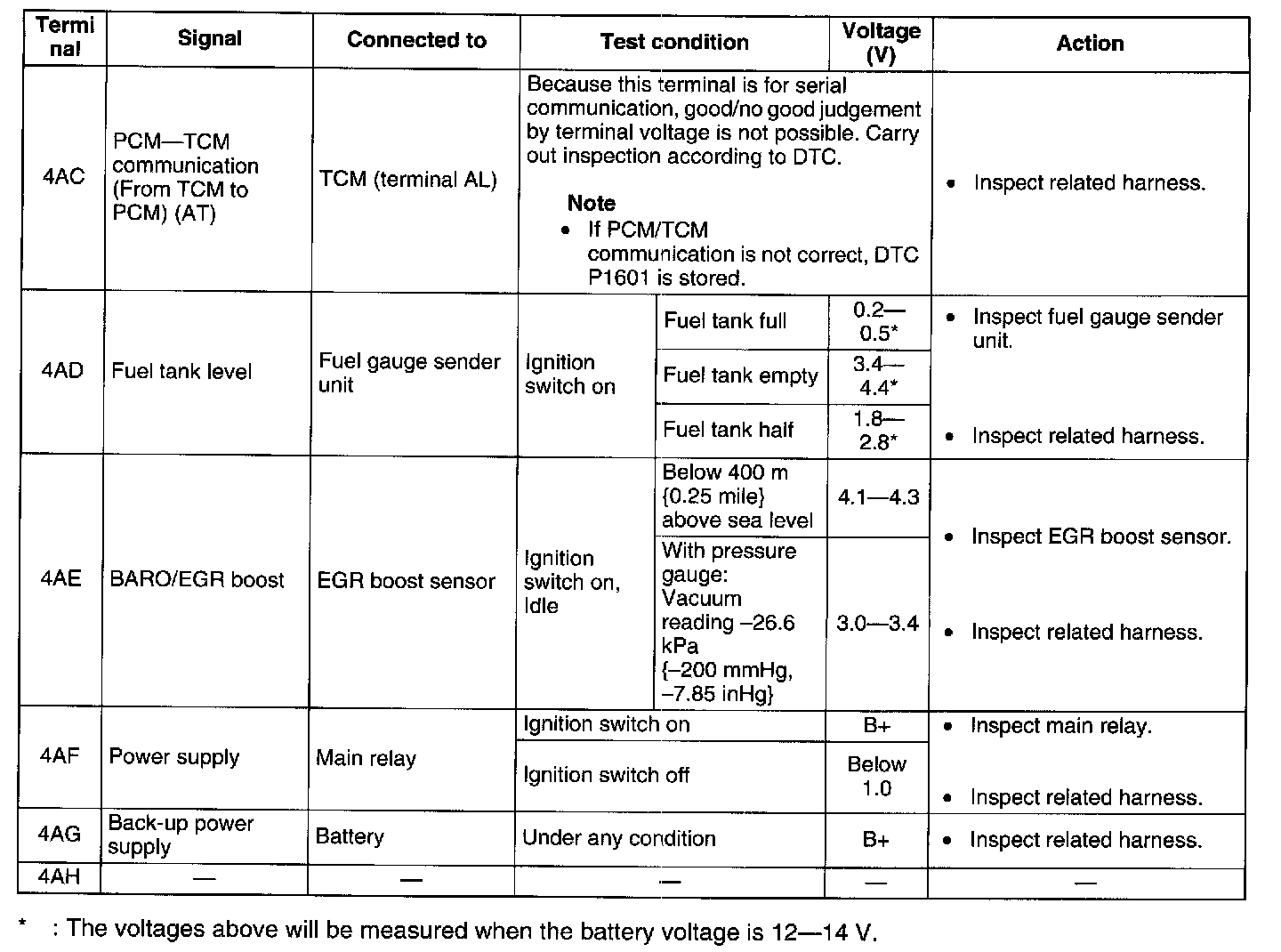

PCM Terminal Voltage Table (Reference) - Terminals (4AC - 4AH):
