Home >> Mazda >> 2002 >> MPV V6-3.0L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

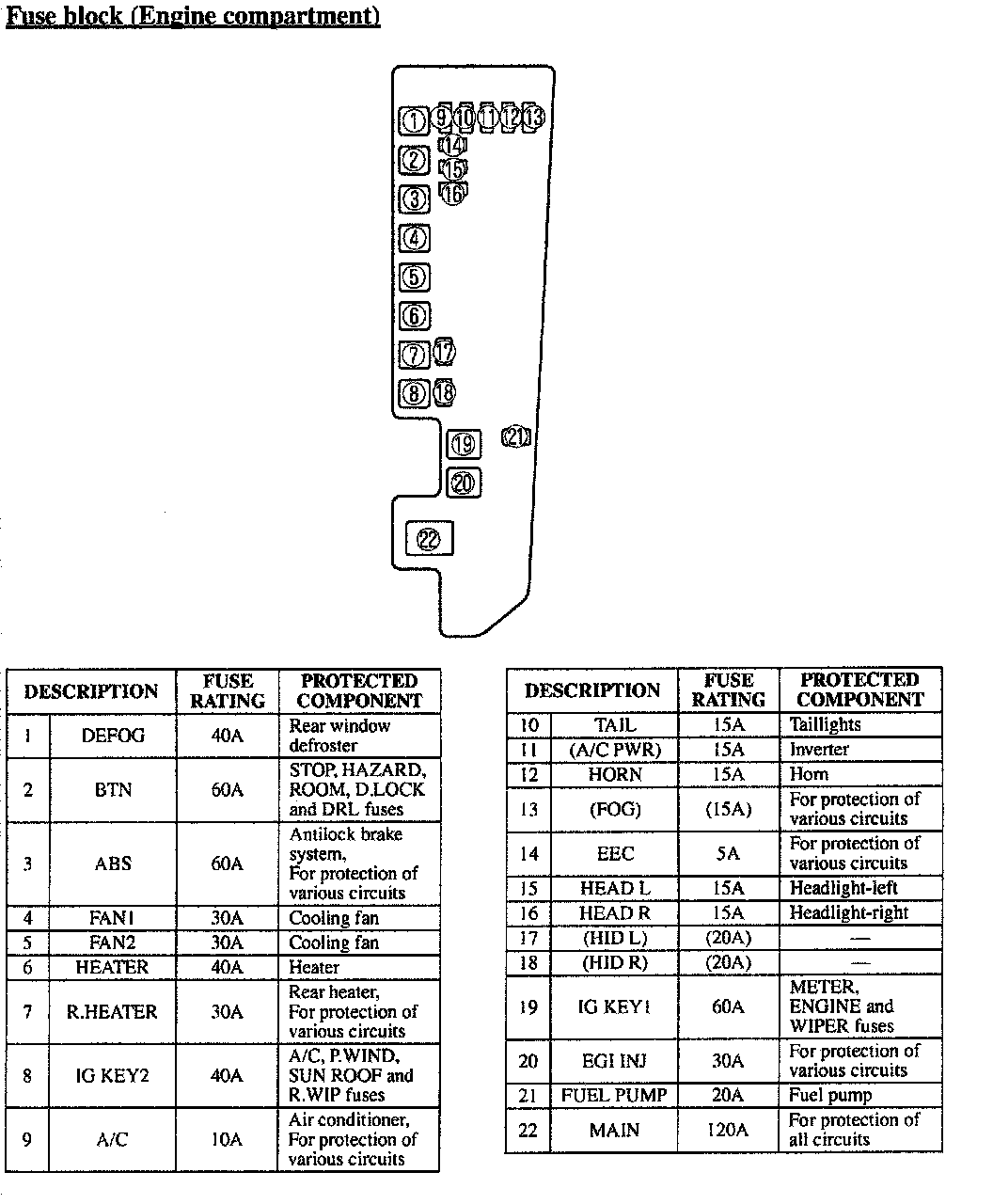

ENGINE COMPARTMENT





FUSE PANEL
