Mazda
>>
2002
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
H-2 - Key Interlock System / Shift-Lock System
H-2 - Key Interlock System / Shift-Lock System

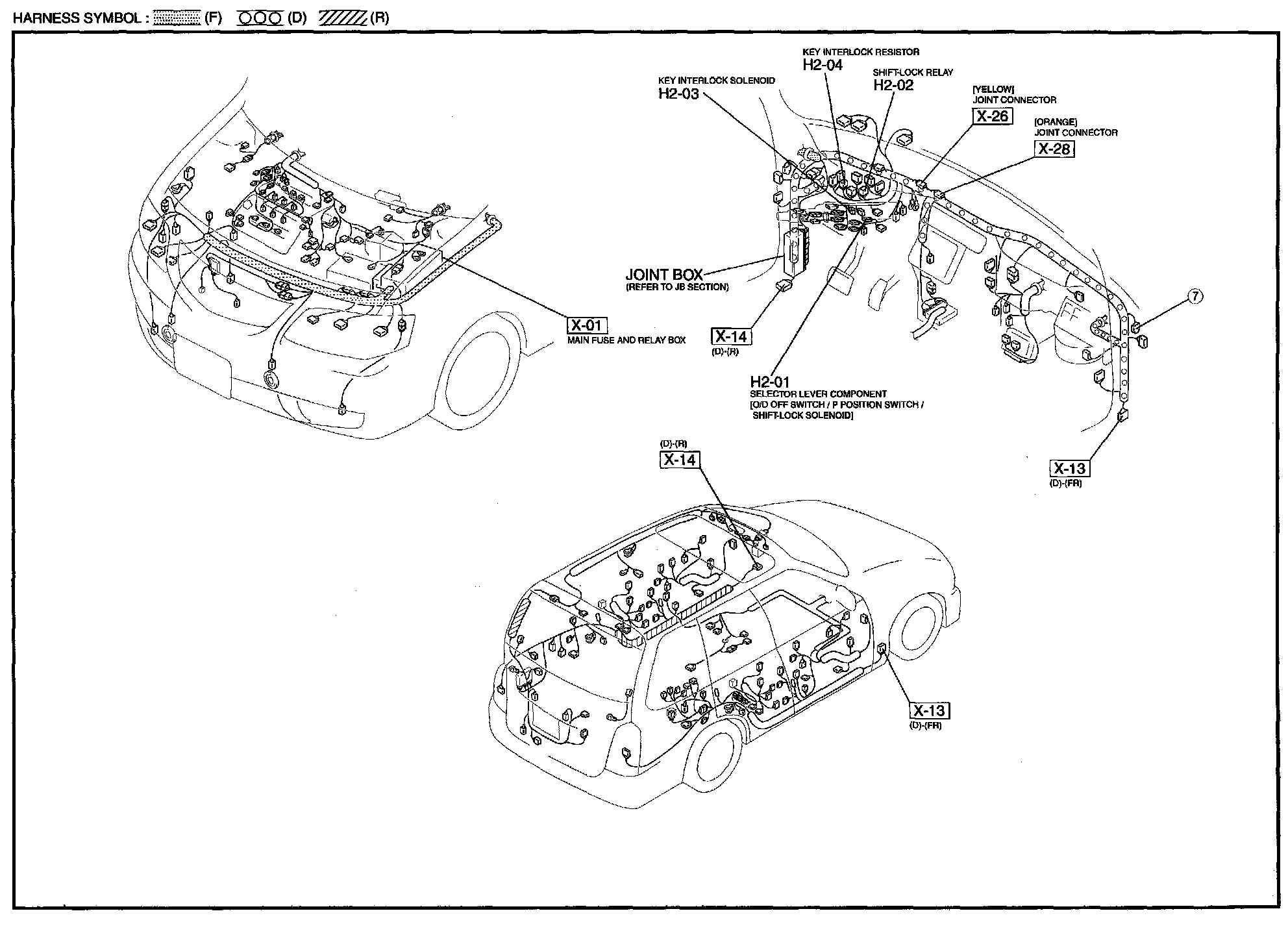

H-2 - Key Interlock System / Shift-Lock System Harness/Connector Symbols:
