DTC C1119 (83): Torque Reduction Inhibit Signal Line: Notes

CAUTION:

• When attaching the tester lead to the ABS/TCS HU/CM or the ABS/TCS HU/CM harness connector, the SST (49 G066 001) must be used. See ABS/TCS HU/CM (WITH TCS) OR ABS HU/CM (WITHOUT TCS) SYSTEM INSPECTION  .
• When attaching the tester lead to the PCM, the SST must be used. See POWERTRAIN CONTROL MODULE .

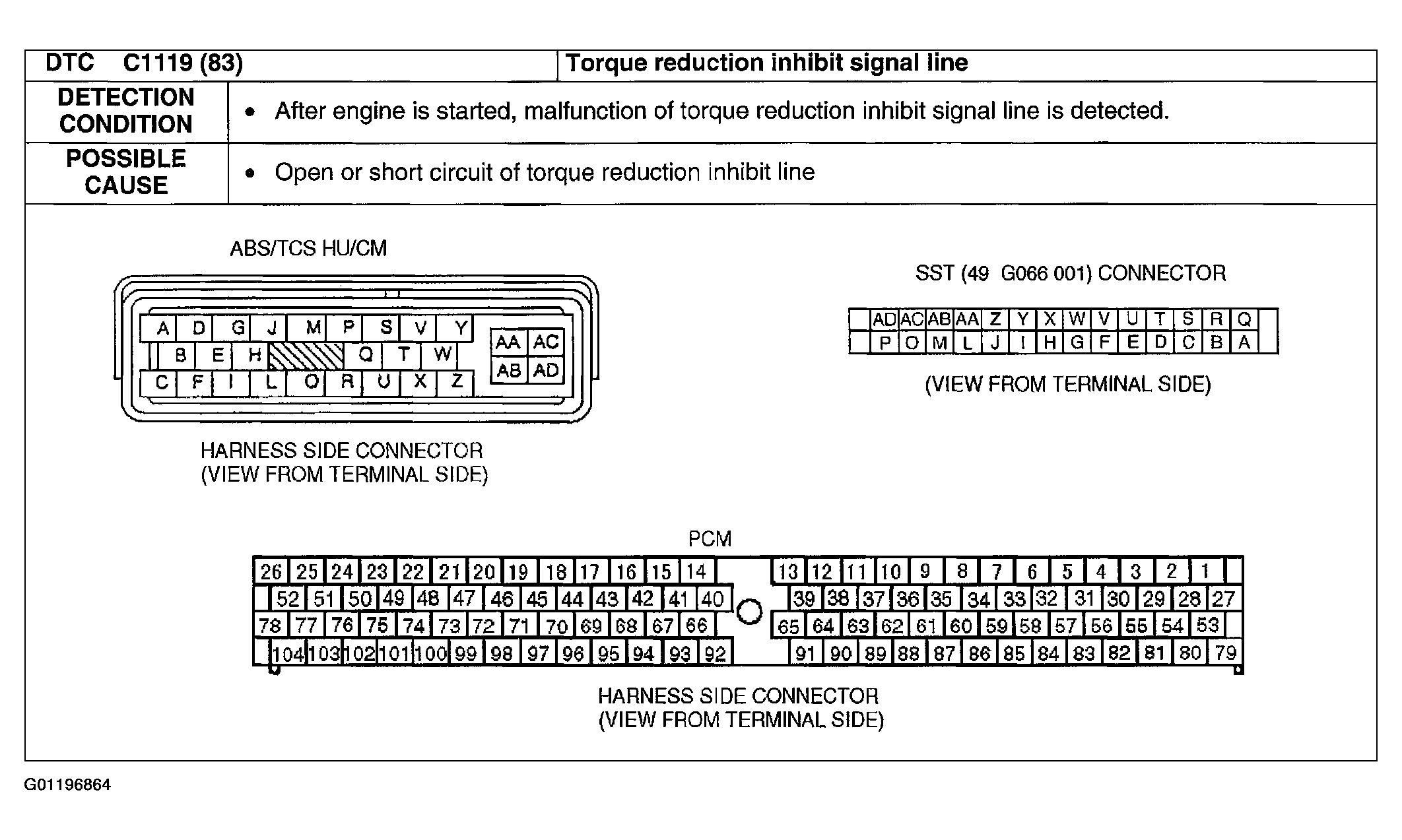

Fig 1: DTC C1119 (83) Detection Condition & Possible Cause

Courtesy of MAZDA MOTORS CORP.
