Dashboard Disassembly/Assembly

  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

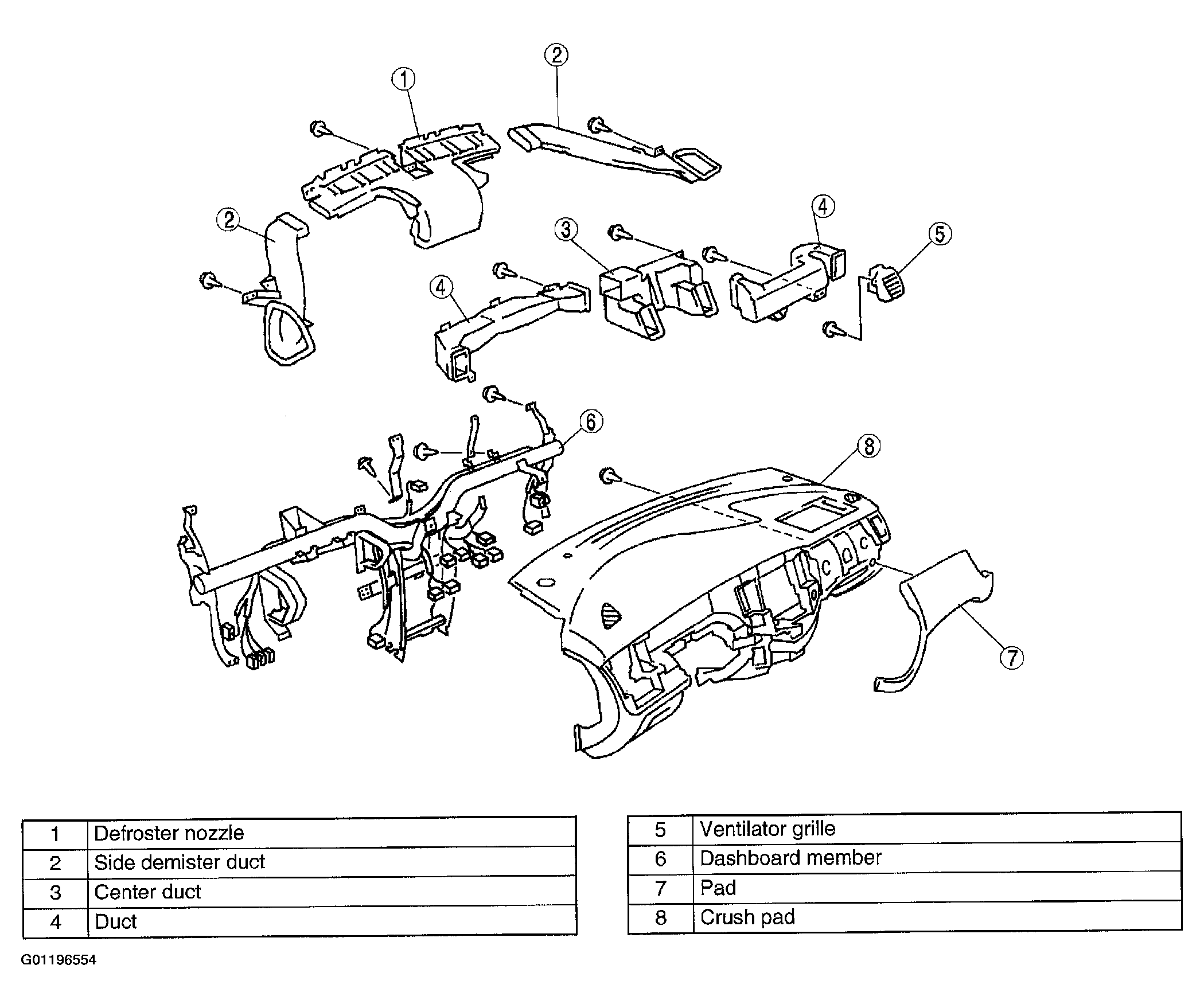

Fig 1: Disassembling Dashboard
G01196554Courtesy of MAZDA MOTORS CORP.
