Power Sliding Door (PSD) Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the rear side trim.
  3. Remove the woofer. (LH only.)
  4. Remove the nuts, and screw.

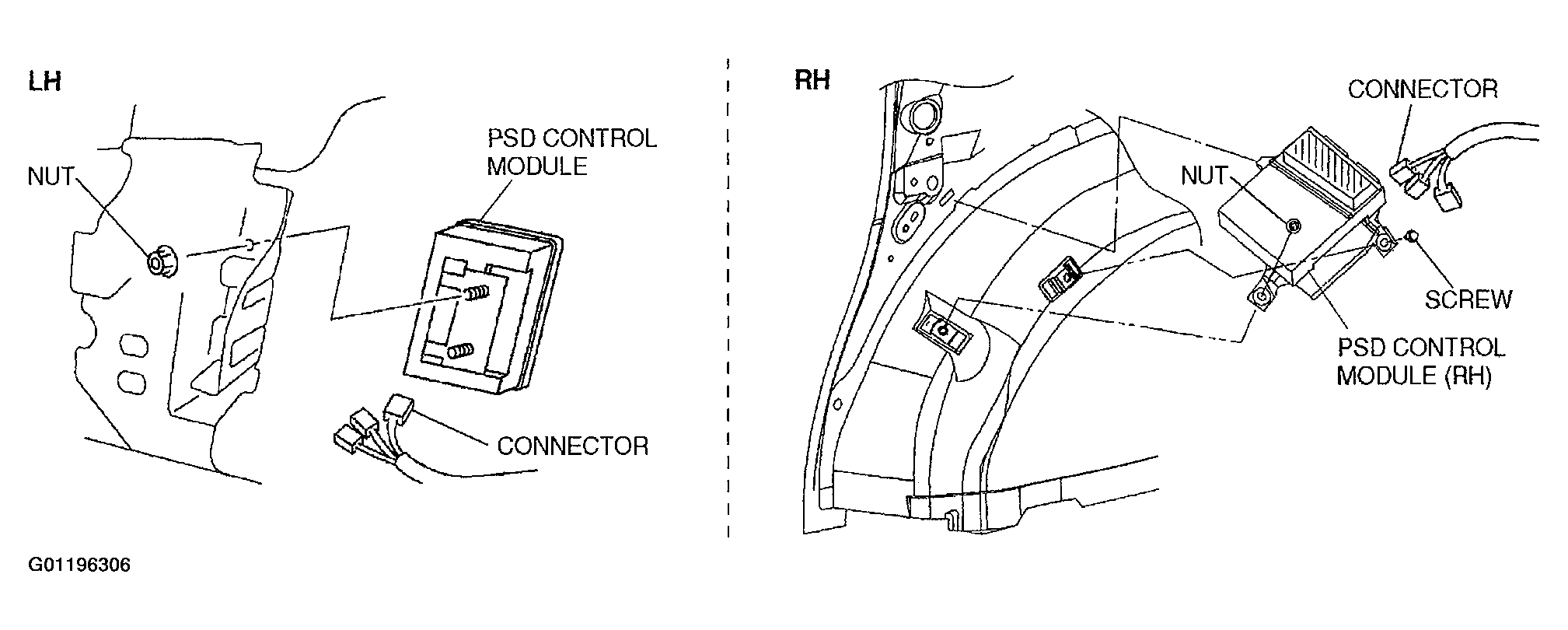

    Fig 1: Removing Power Sliding Door (PSD) Control Module
    G01196306Courtesy of MAZDA MOTORS CORP.
  5. Remove the PSD control module.
  6. Disconnect the PSD module connector.
  7. Install in the reverse order of removal.
