Front Manual Window Regulator

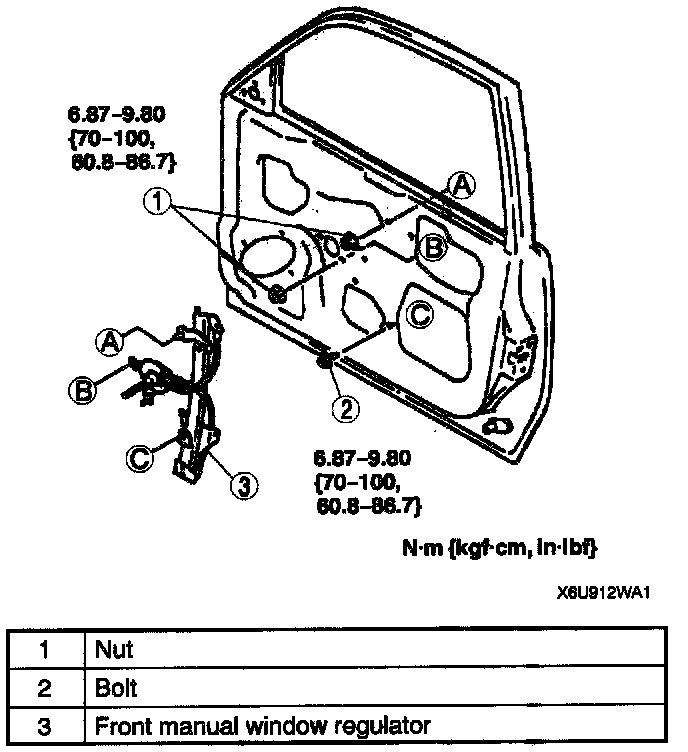

FRONT MANUAL WINDOW REGULATOR REMOVAL/INSTALLATION

1. Remove the regulator handle. (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)
2. Remove the front door glass. (See FRONT DOOR GLASS AND GUIDE REMOVAL/INSTALLATION.)




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
