EC-AT Control System
EC-AT Control System

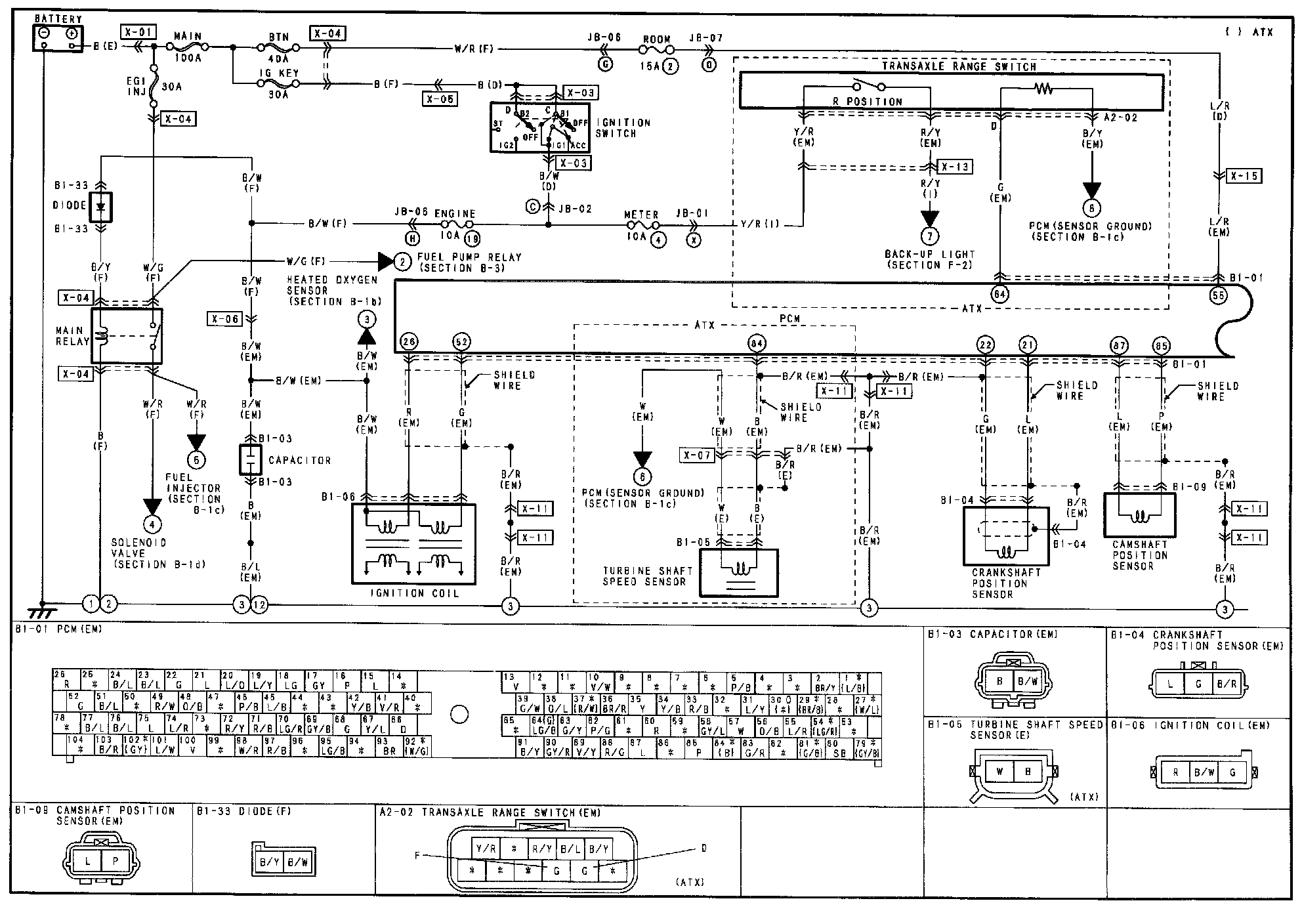

B-1a - EC-AT Control System (FS)/Engine Control System (FS) Circuit:
B-1a - EC-AT Control System (FS)/Engine Control System (FS) Harness/Connector Symbols:
