Control System

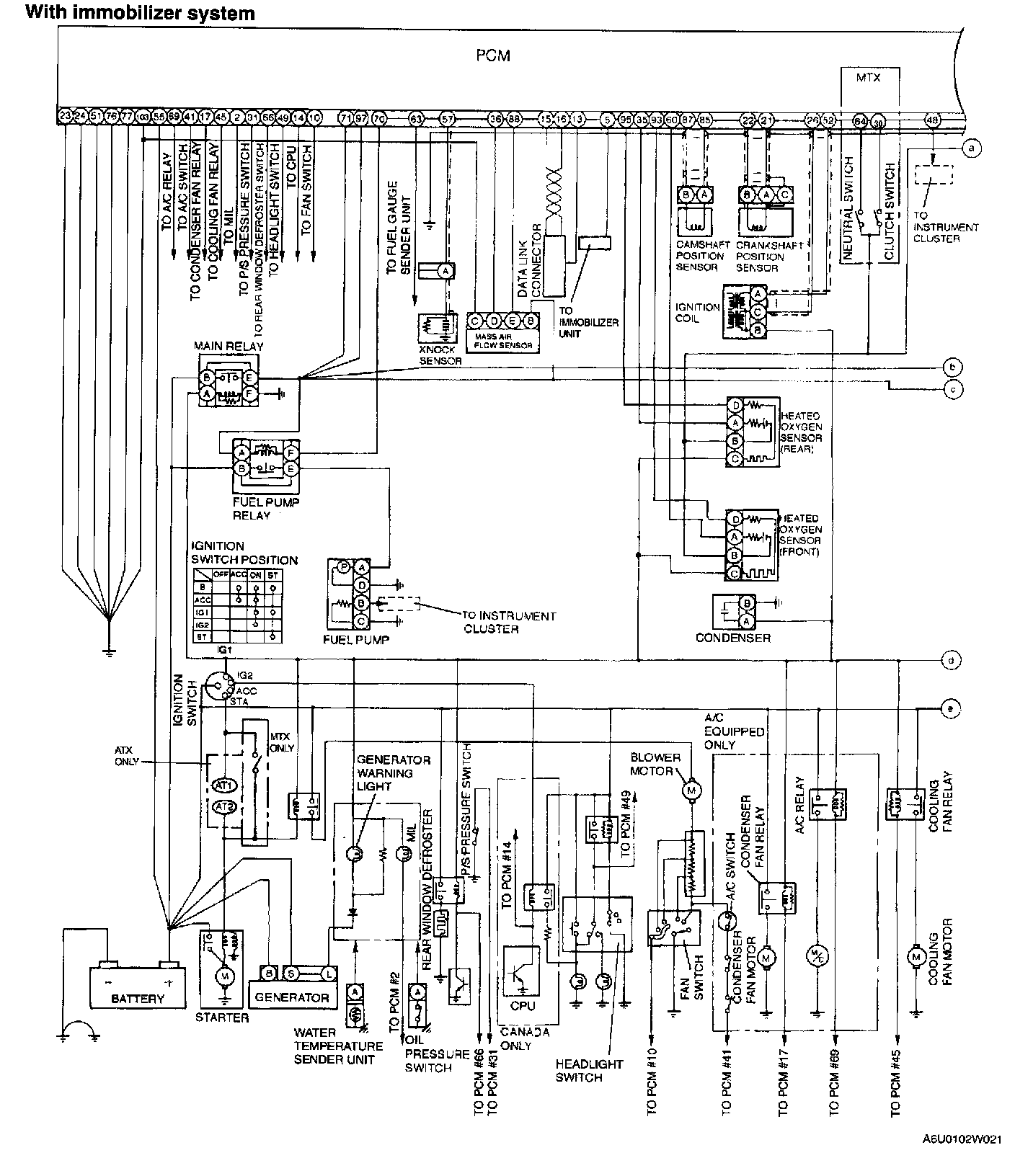

Control System Wiring Diagram - With Immobilizer System Part 1:

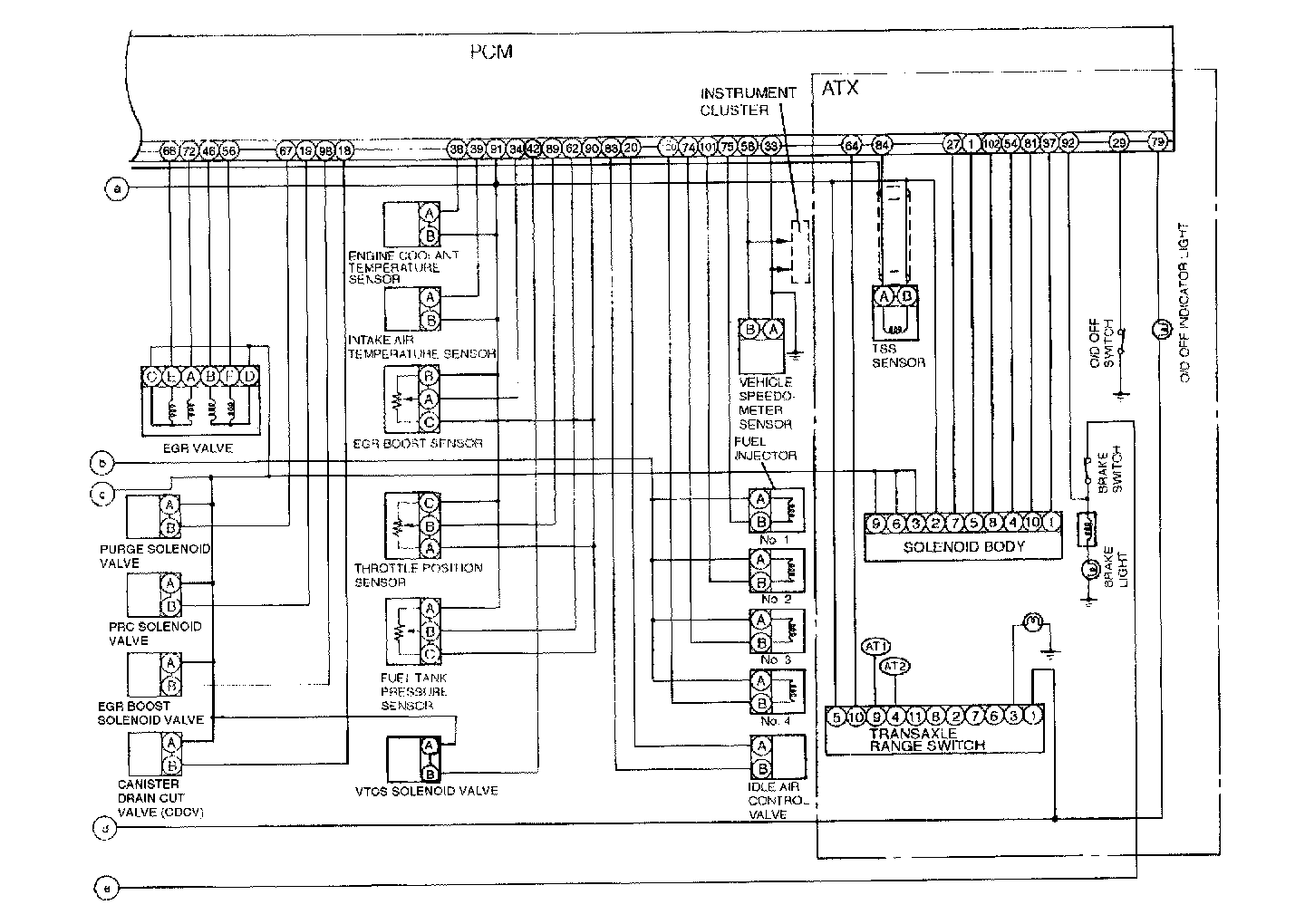

Control System Wiring Diagram - With Immobilizer System Part 2:

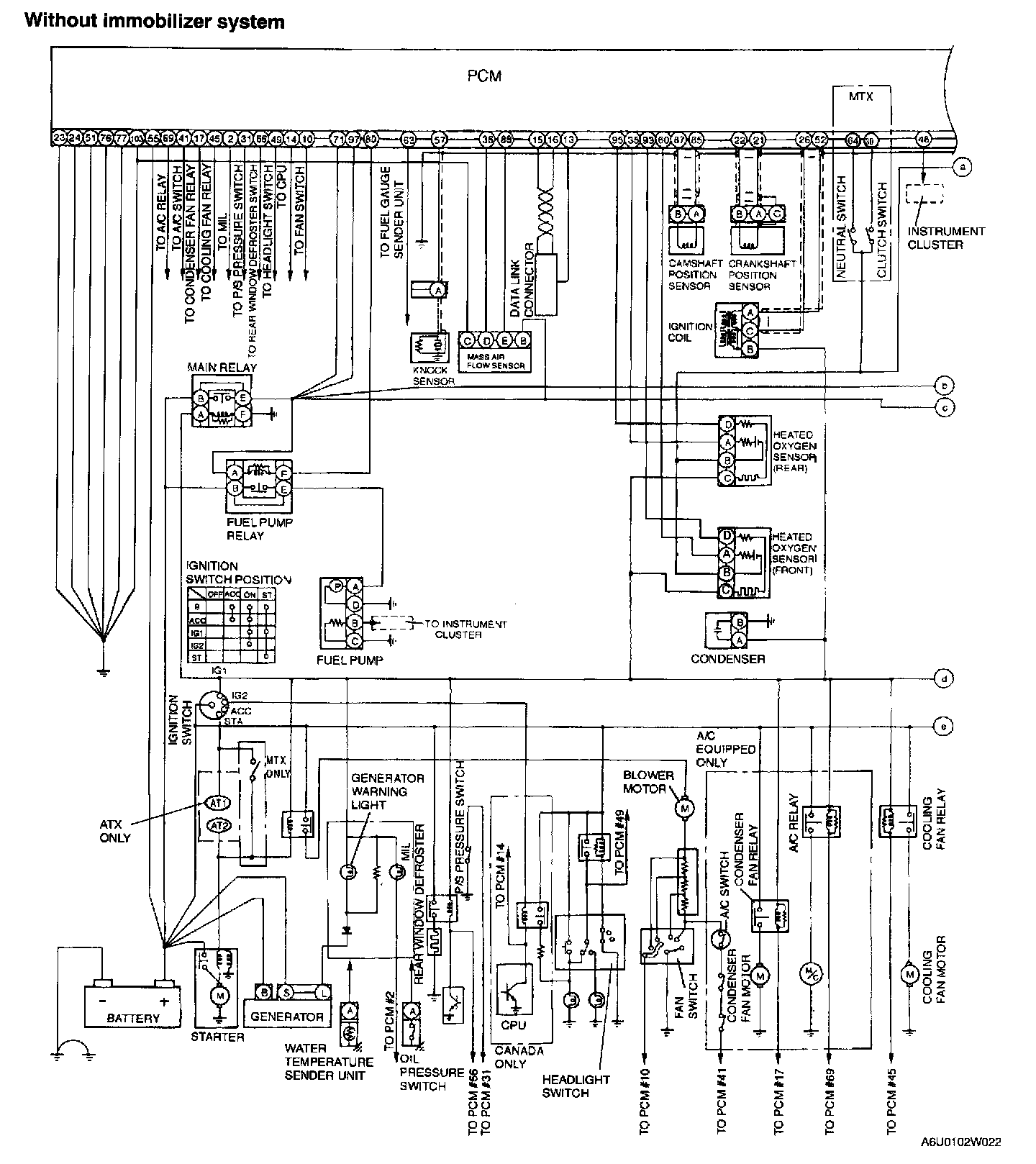

Control System Wiring Diagram - Without Immobilizer System Part 1:

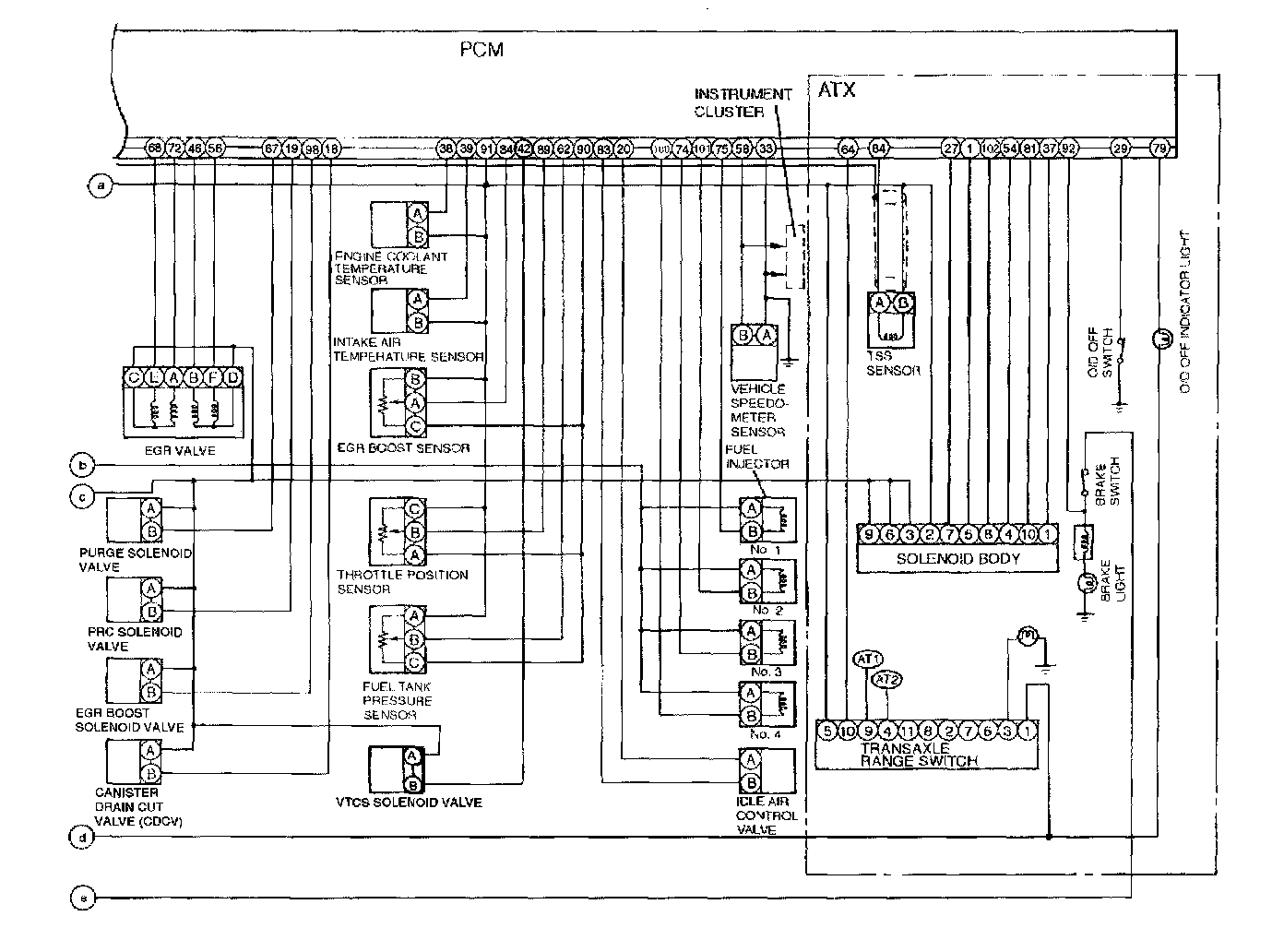

Control System Wiring Diagram - Without Immobilizer System Part 2:
