Diagnostic Monitoring Test Results Access Procedure

Diagnostic Monitoring Test Results Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.

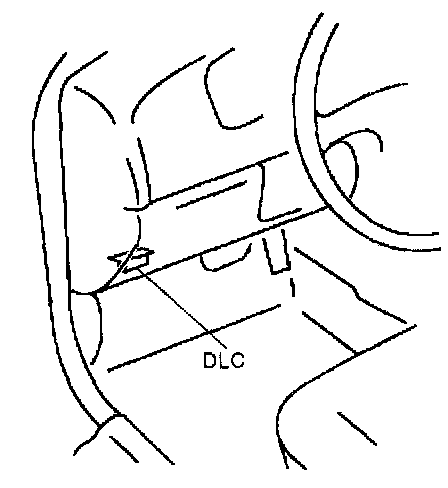

2. Connect WDS or equivalent to the vehicle DLC 16-pin connector located the left side of the center console.
3. Access to the DIAGNOSTIC MONITORING TEST RESULTS and read the test results by WDS or equivalent.
