Home >> Mazda >> 2002 >> 626 ES, Standard >> Repair and Diagnosis >> Brakes >> Anti-Lock/Traction Control System >> Dual Proportioning Valve Inspection >> Fluid Pressure

Fluid Pressure

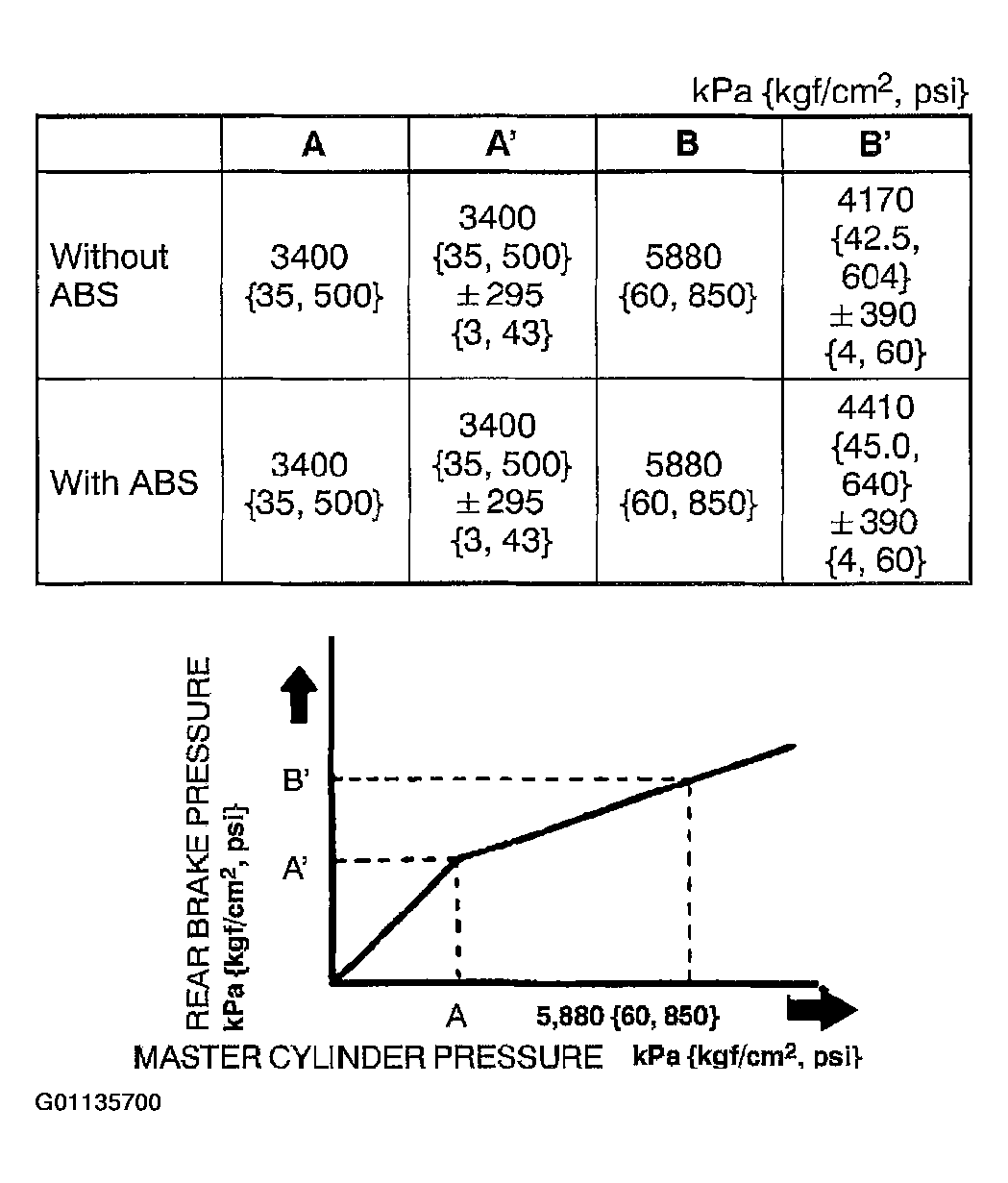

Fig 1: Fluid Pressure Specifications

G01135700

Courtesy of MAZDA MOTORS CORP.
