Home >> Mazda >> 2001 >> Tribute DX 4WD L4-2.0L >> Repair and Diagnosis >> Cruise Control >> Locations >> Connector Locations

Connector Locations

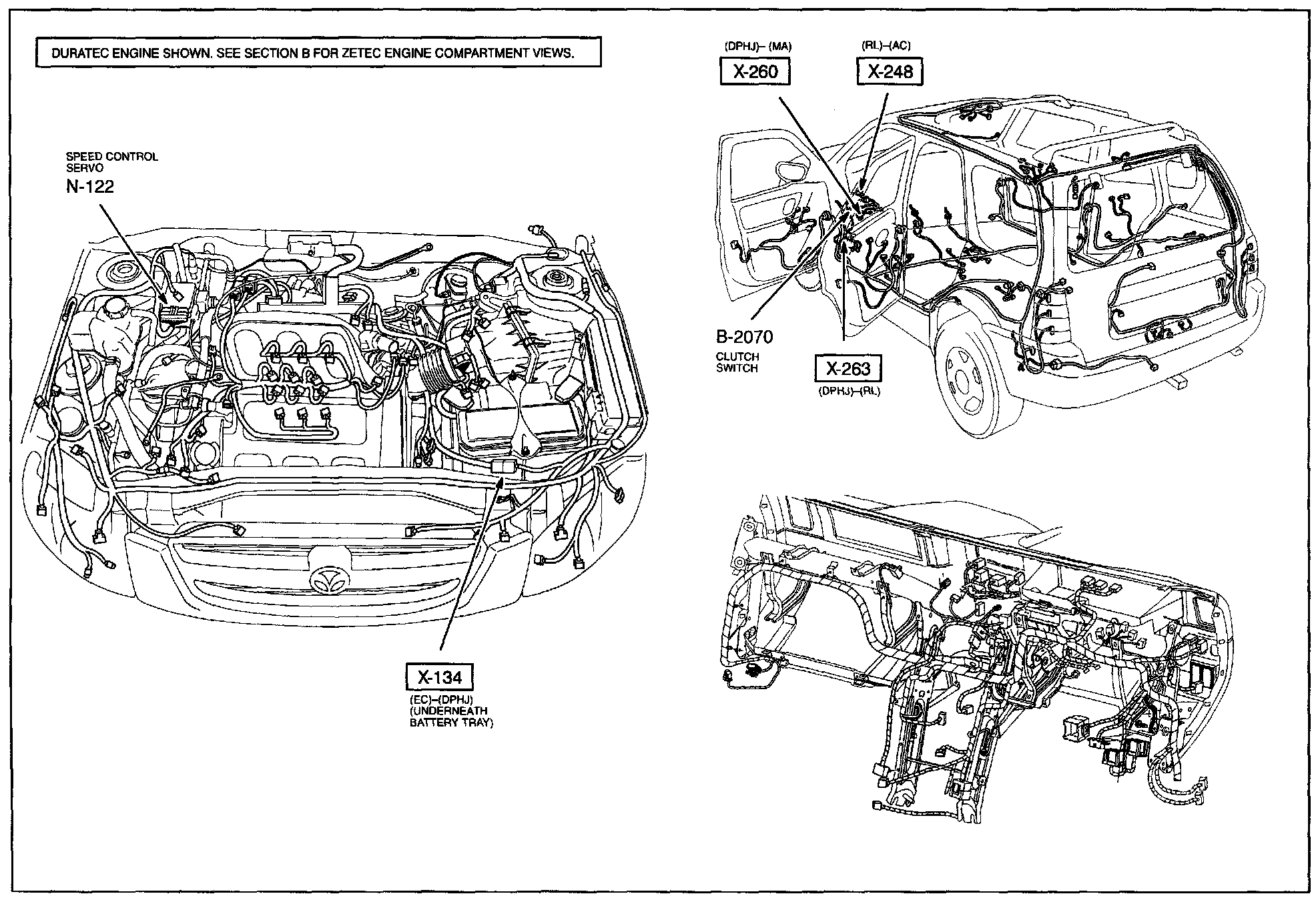

N-a - Cruise Control Harness/Connector Symbols:

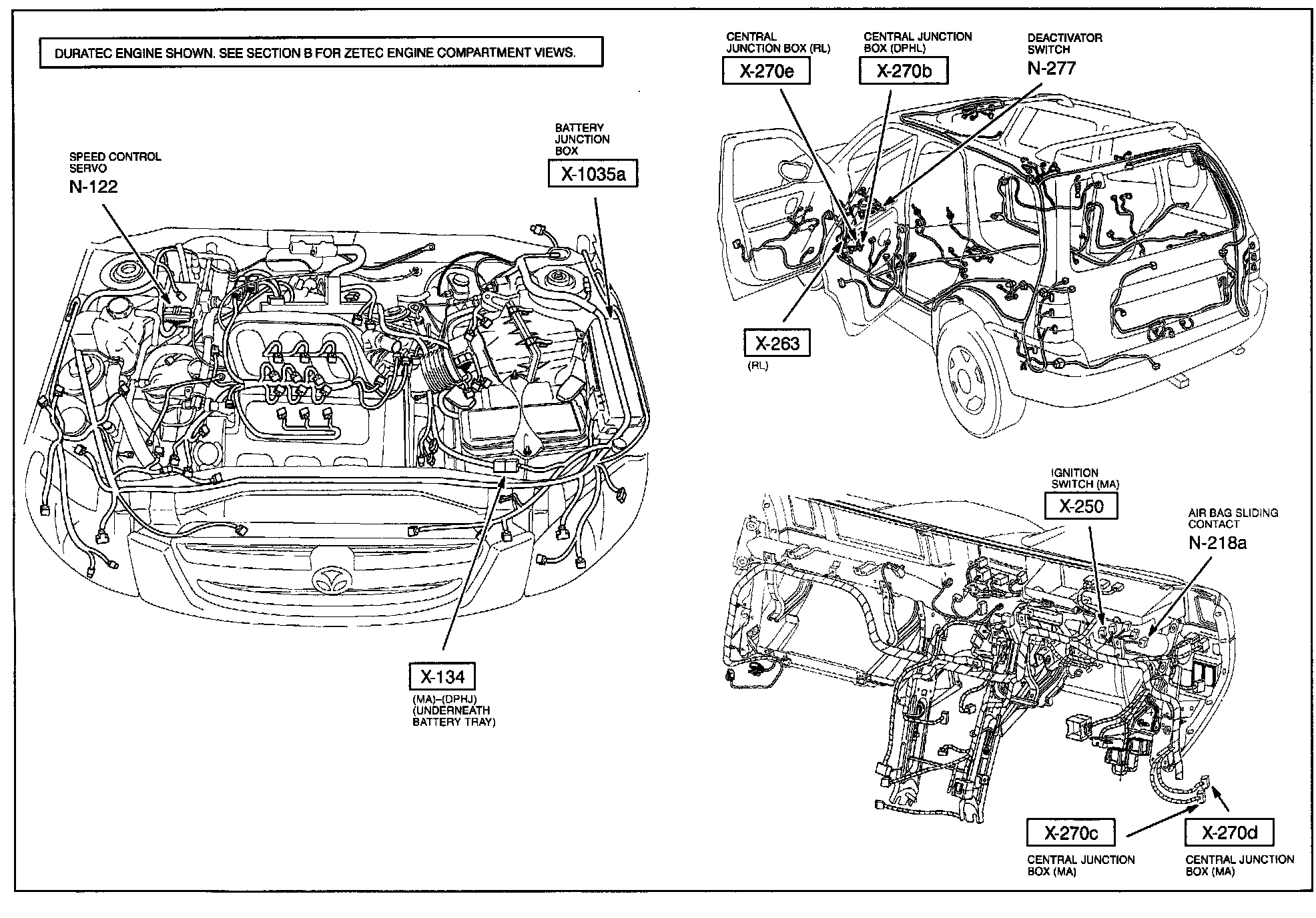

N-b - Cruise Control Harness/Connector Symbols:
