Mazda
>>
2001
>>
Tribute DX 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

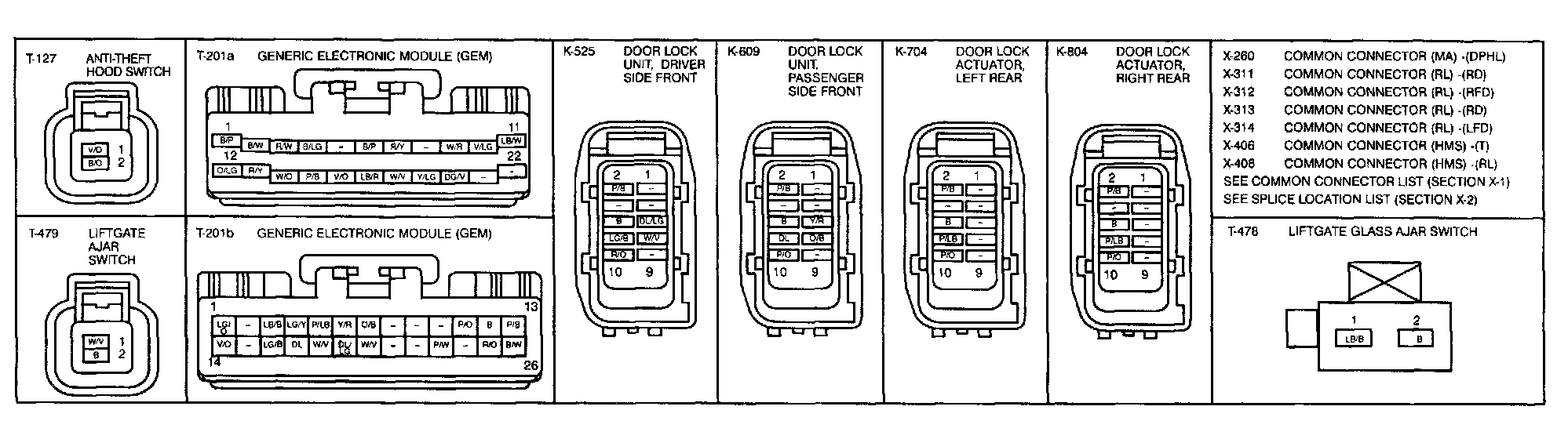

T-2 - Anti-Theft - Perimeter Connectors:
