Home >> Mazda >> 2001 >> Tribute DX 2WD L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> General Module >> Testing and Inspection >> Pinpoint Tests >> 1: No Module/Network Communication - SCP Link

1: No Module/Network Communication - SCP Link

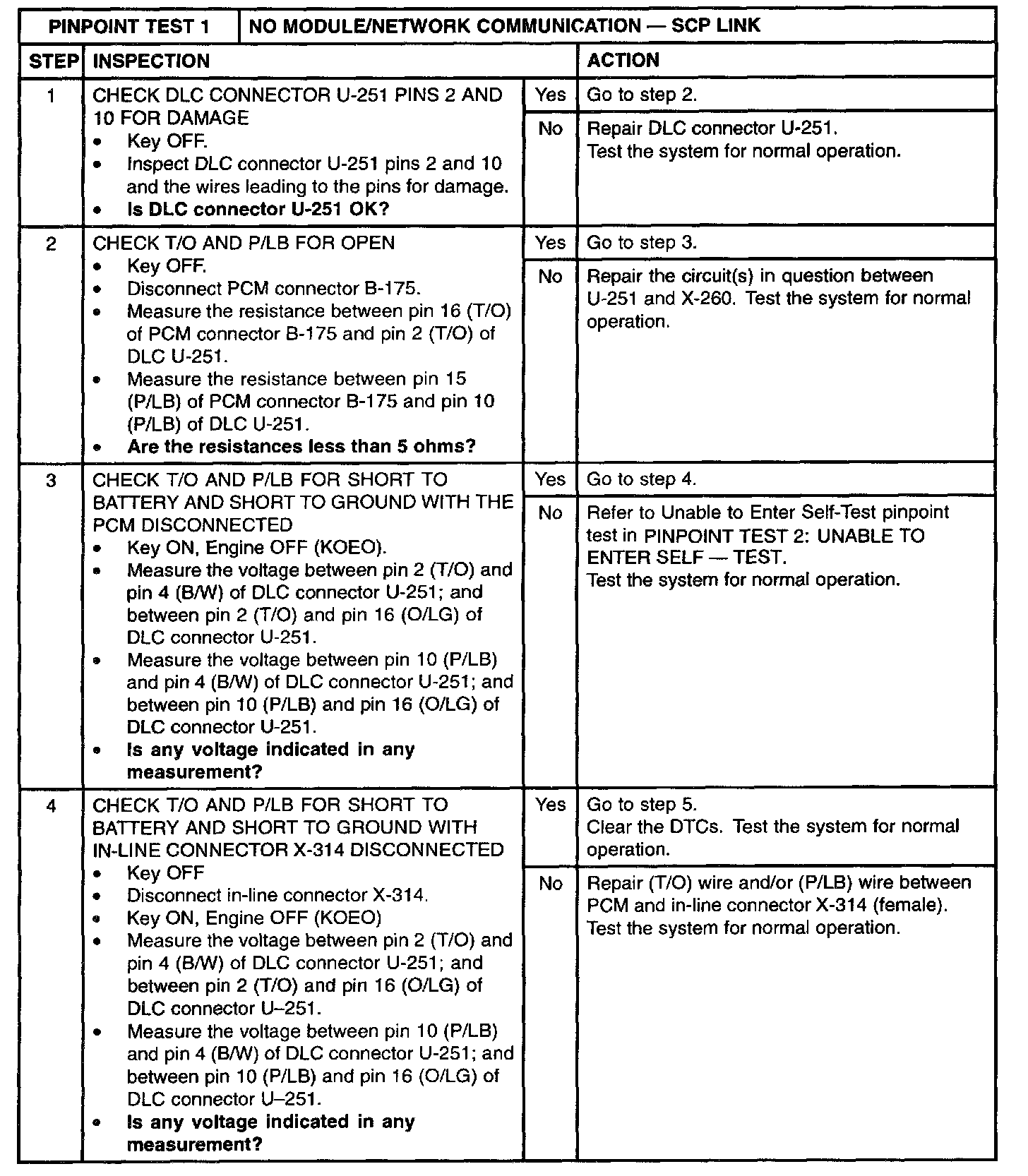

Step 1 - 4:

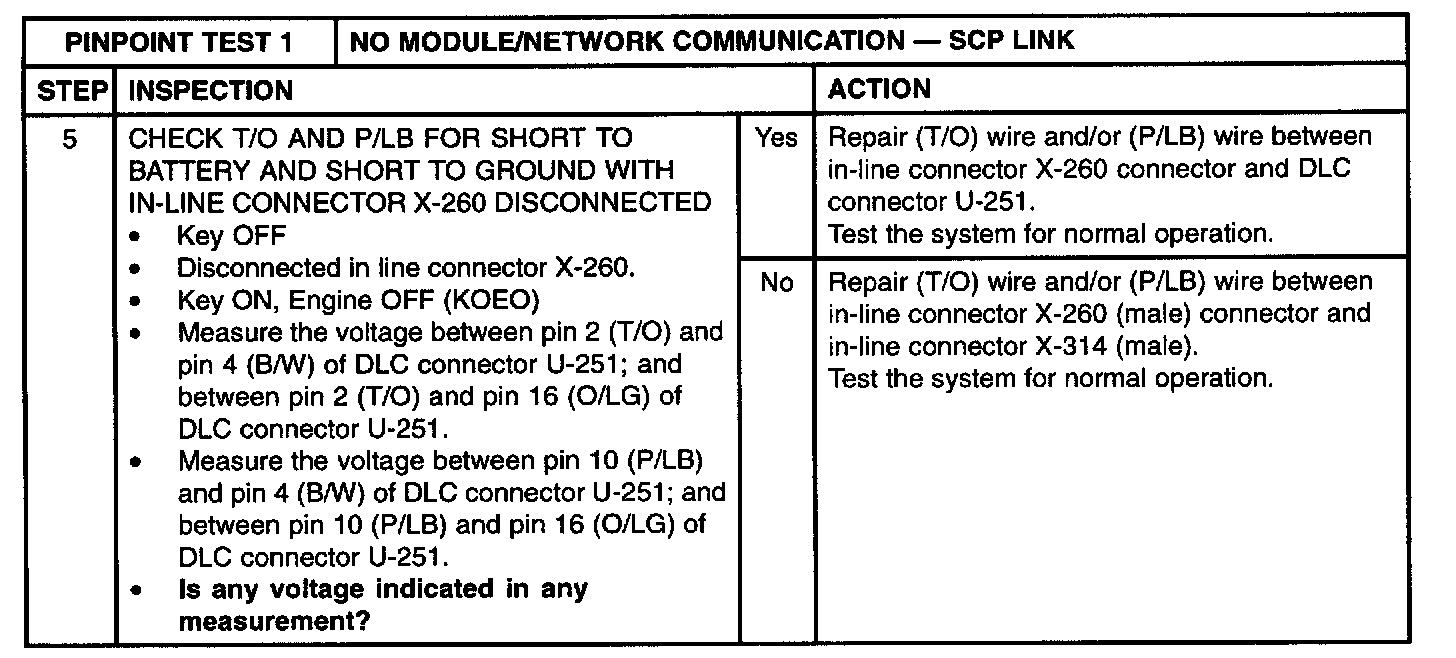

Step 5:
