Diagnostic Monitoring Test Results Access Procedure

NOTE: This is a generic function.




1. Perform the NGS tester hook-up procedure.
2. Move the cursor to GENERIC OBD-II FUNCTIONS.
3. Press the TRIGGER key to enter this selection.
4. Press CONT.
5. Turn the menu dial clockwise to scroll the screen.




6. Move the cursor to DIAGNOSTIC MONITORING TEST RESULTS.
7. Press the TRIGGER key to enter this selection.




8. The screen displays the results of each test with thresholds. Read the values.

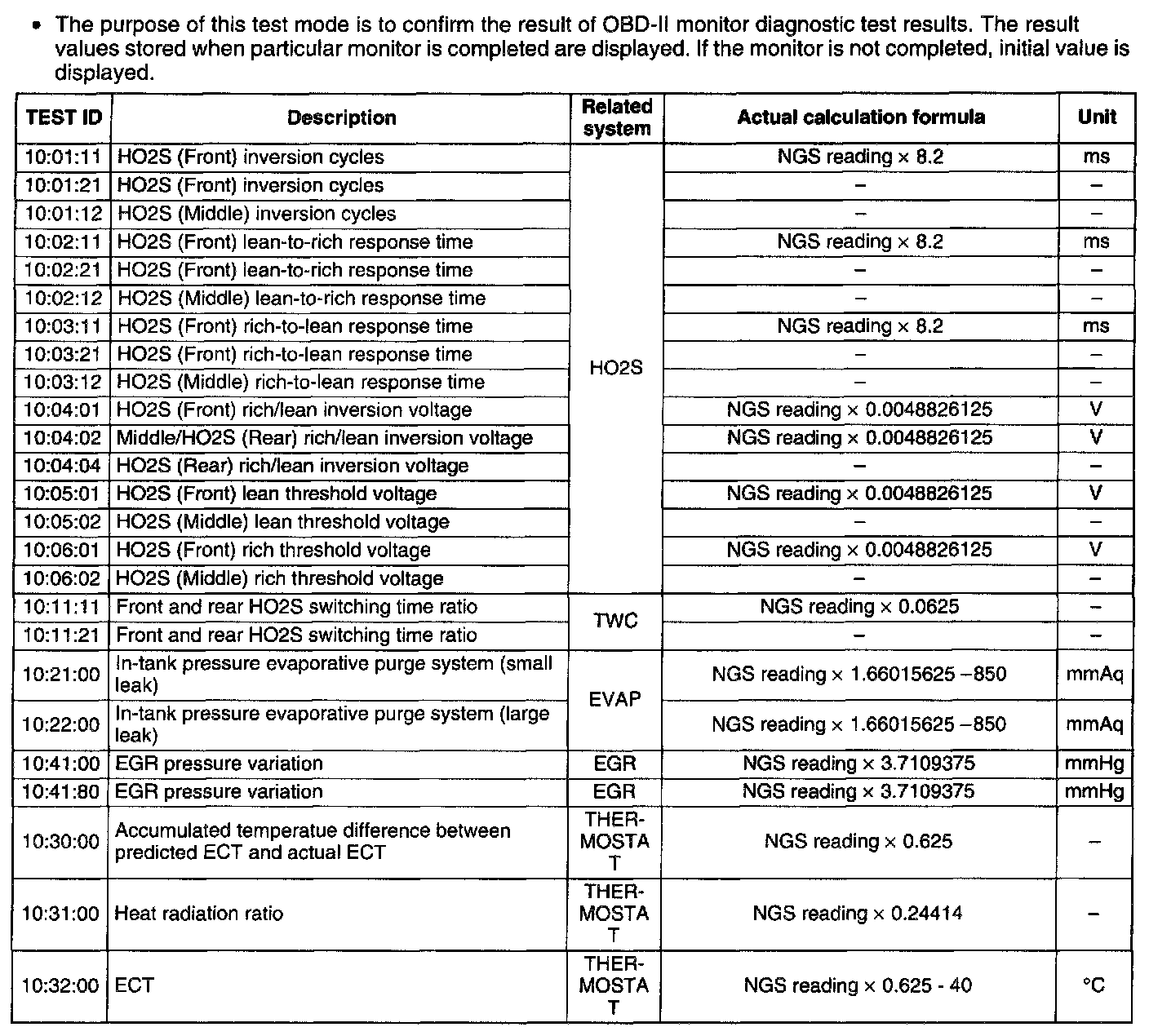

Diagnostic Monitoring Test Results:
