Home >> Mazda >> 2001 >> MPV ES V6-2.5L DOHC >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> Power Window Subswitch

Power Window Subswitch




1. If inspecting the passenger's side, remove the switch panel.
2. If inspecting the rear, remove the power window subswitch.

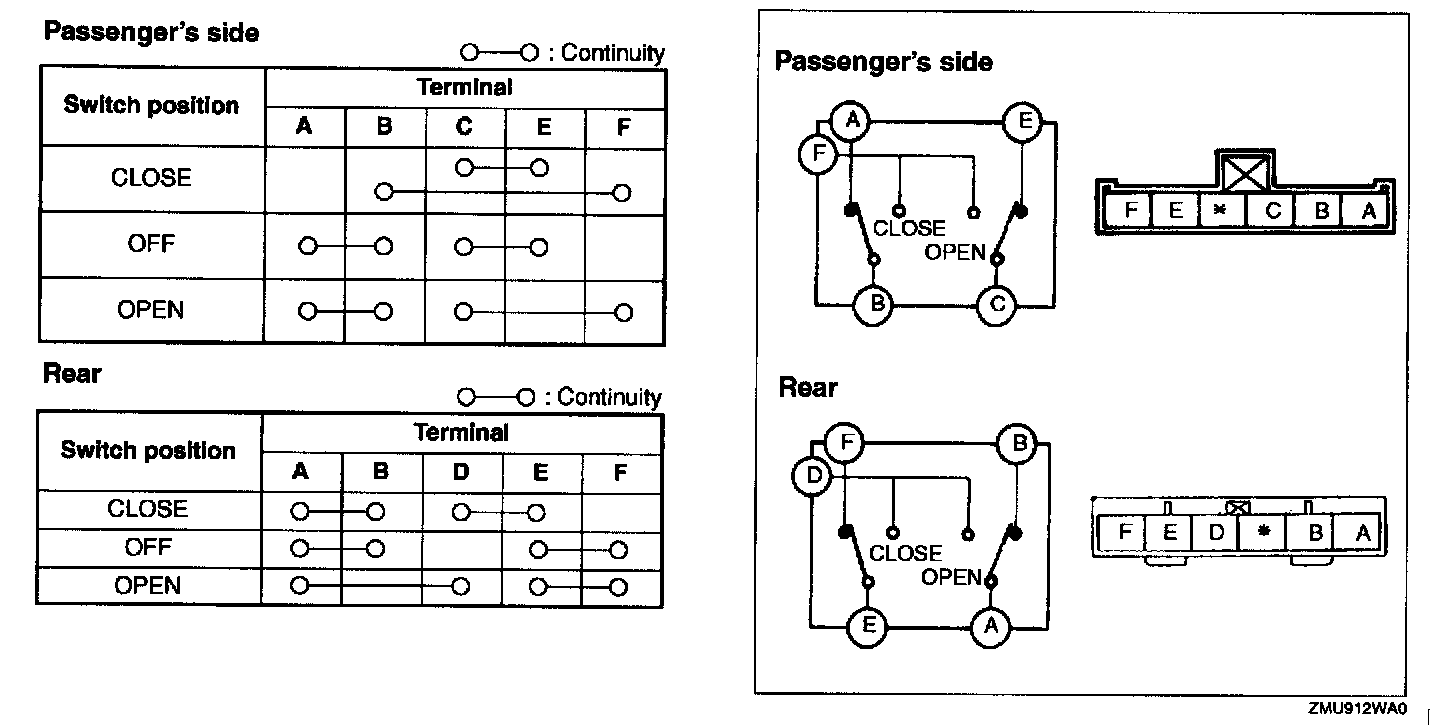

3. Inspect for continuity between the power window subswitch terminals using an ohmmeter.
- If not as specified, replace the power window subswitch.
