Home >> Mazda >> 2001 >> MPV ES V6-2.5L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Service and Repair >> Rear Climate Control Unit >> Disassembly and Assembly

Disassembly and Assembly

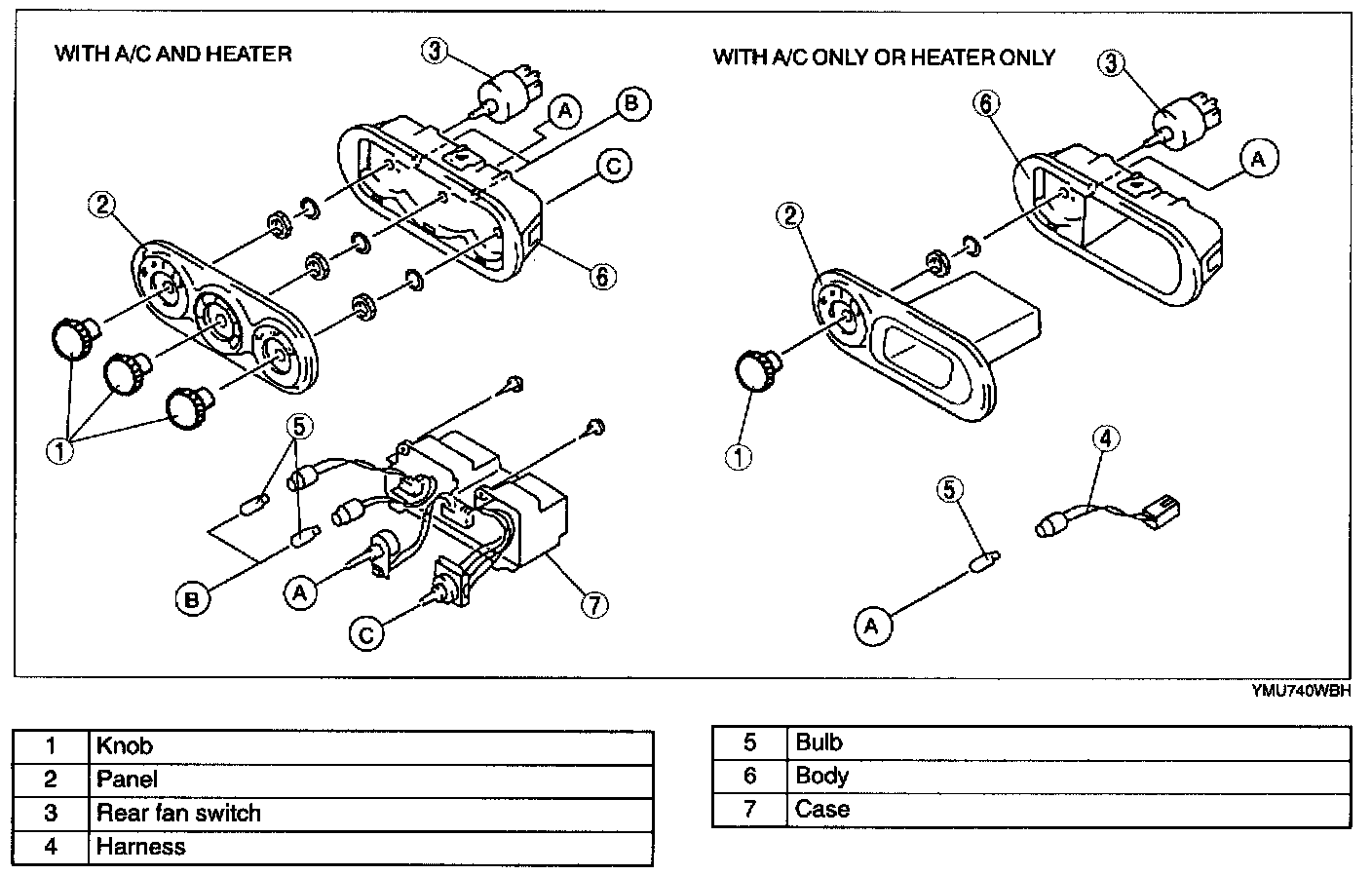

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
