Cooling System
Cooling System

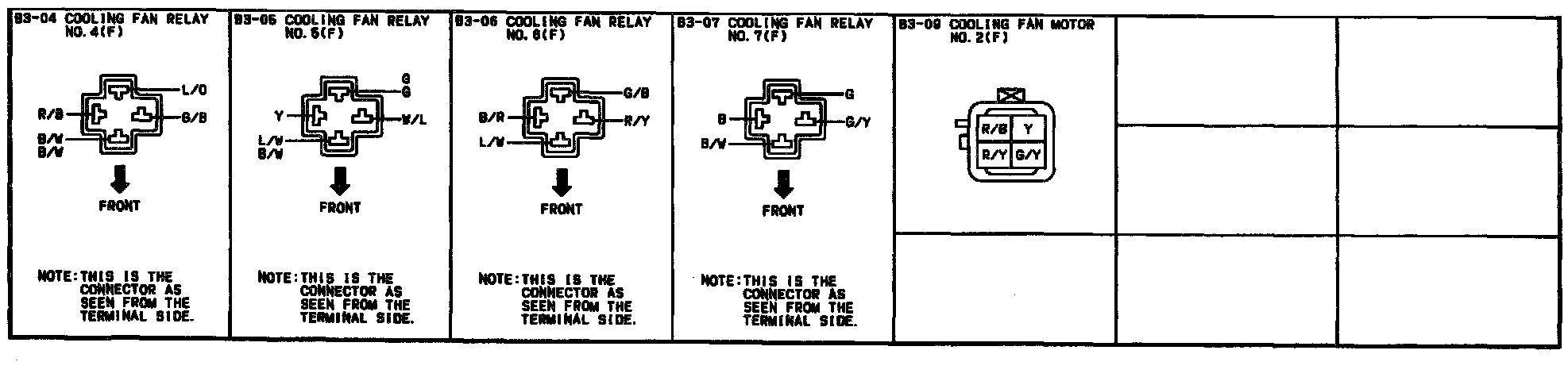

B-3a - Cooling Fan System (With A/C) Connectors:
B-3b - Cooling Fan System (With A/C) Connectors:
B-4 - Cooling Fan System (Without A/C) Connectors:
