Emission Control Systems: Service and Repair






1. Remove the fuel tank.

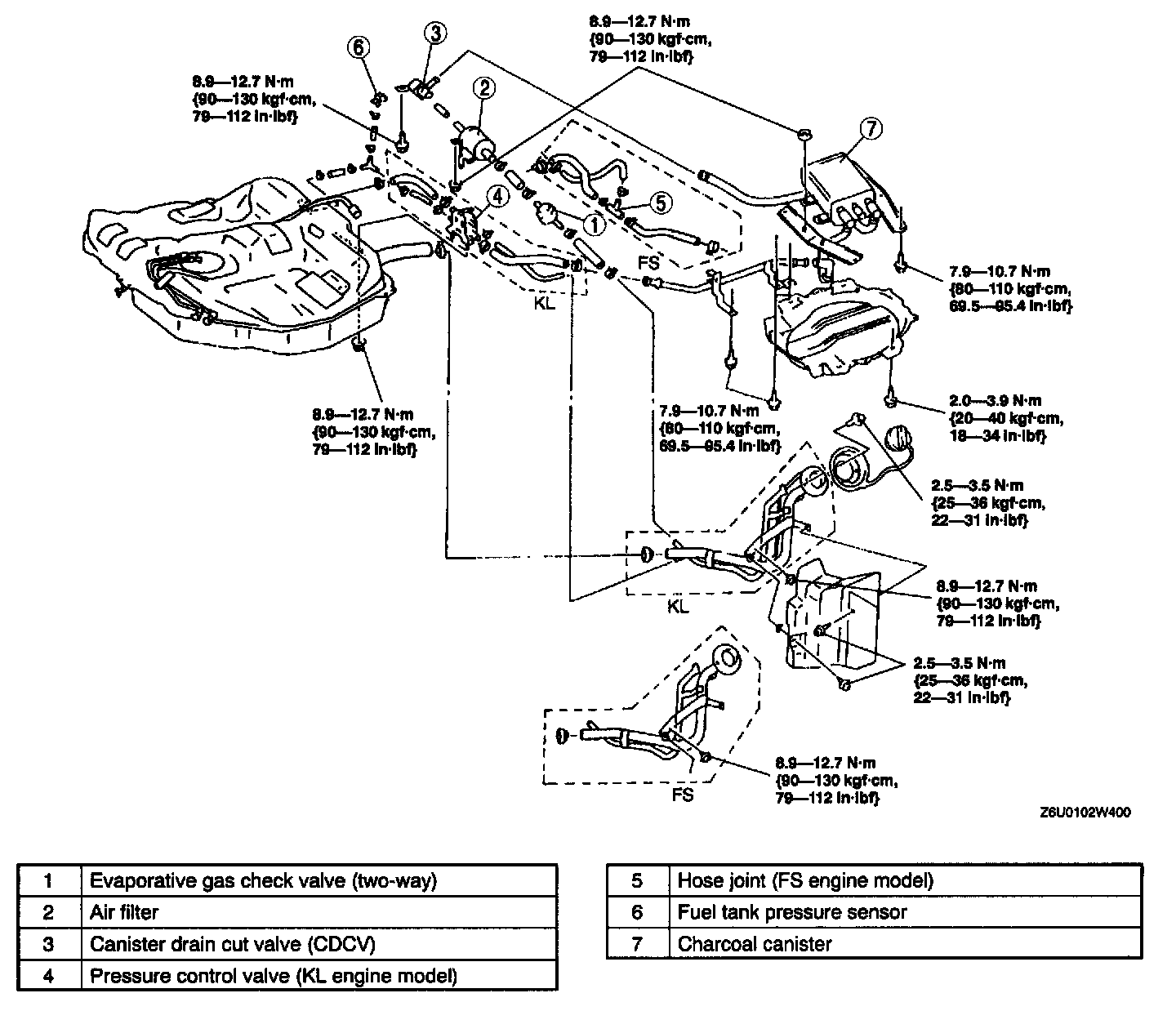

2. Remove the components indicated in the table.
3. Install in the reverse order of removal.
