B-2a

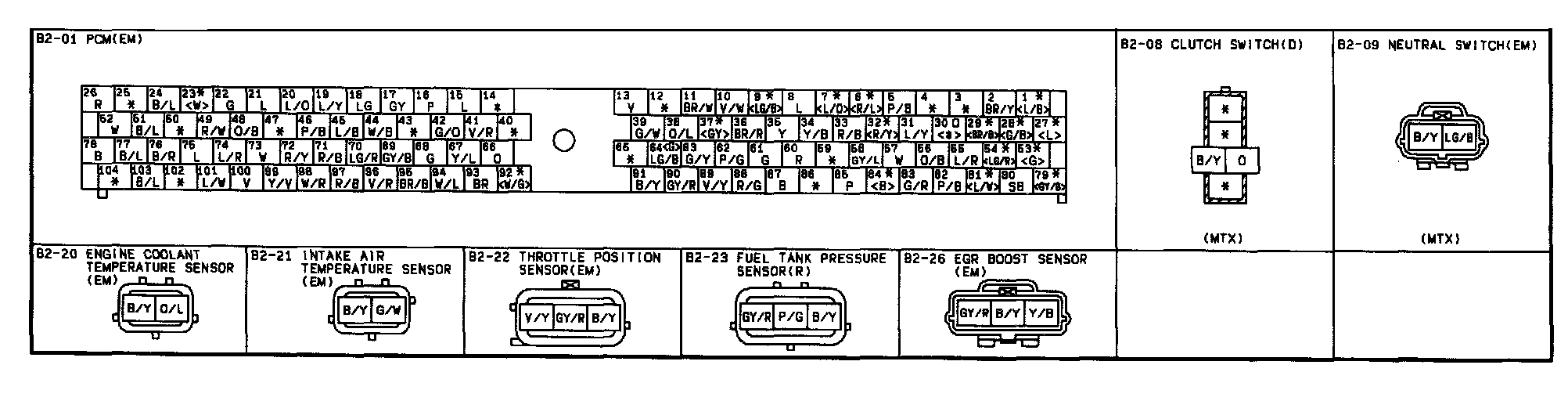

��sEB-2a - EC-AT Control System (KL) / Engine Control System (KL) Connectors:

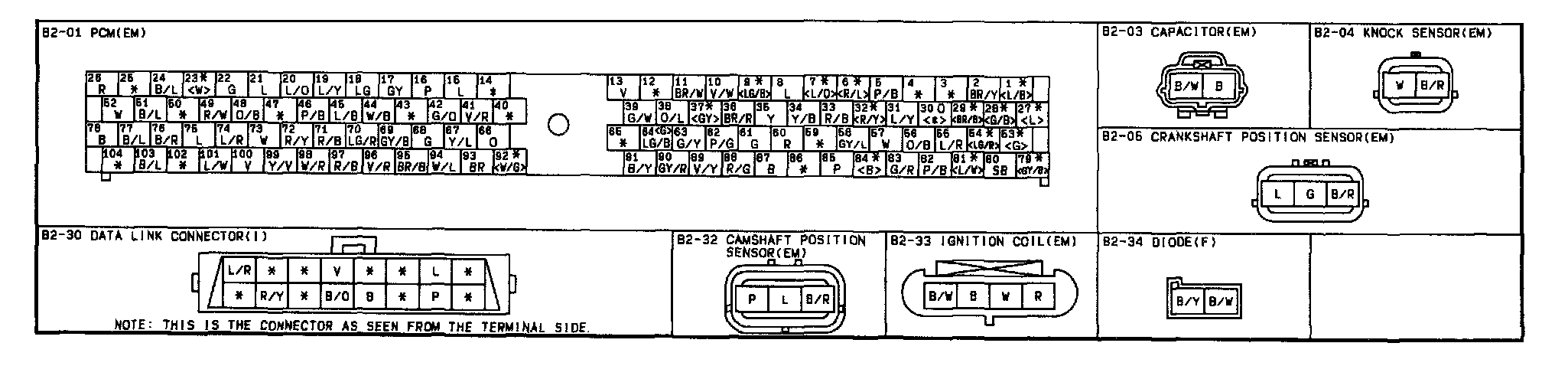

B-2b - EC-AT Control System (KL) / Engine Control System (KL) Connector:



B-2c - EC-AT Control System (KL) / Engine Control System (KL) Connector:



B-2d - EC-AT Control System (KL) / Engine Control System (KL) Connectors:



B-2e - EC-AT Control System (KL) / Engine Control System (KL) Connectors:
