Inspection of Continuity

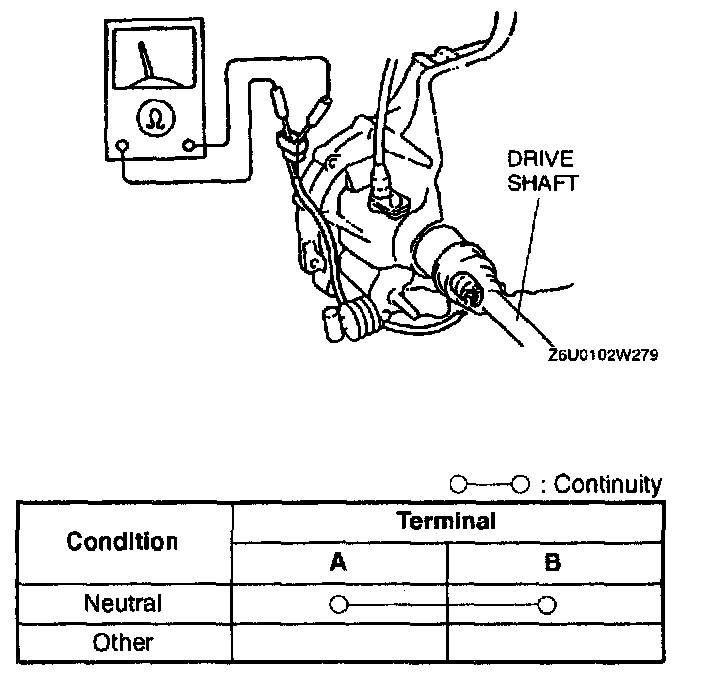

1. Disconnect the neutral switch connector.




2. Check continuity of the switch by using an ohmmeter.
- If not as specified, replace the neutral switch.
- If okay, inspect related harness and connectors.
