Home >> Mazda >> 2001 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> B-1 - EC-AT Control System / Engine Control System

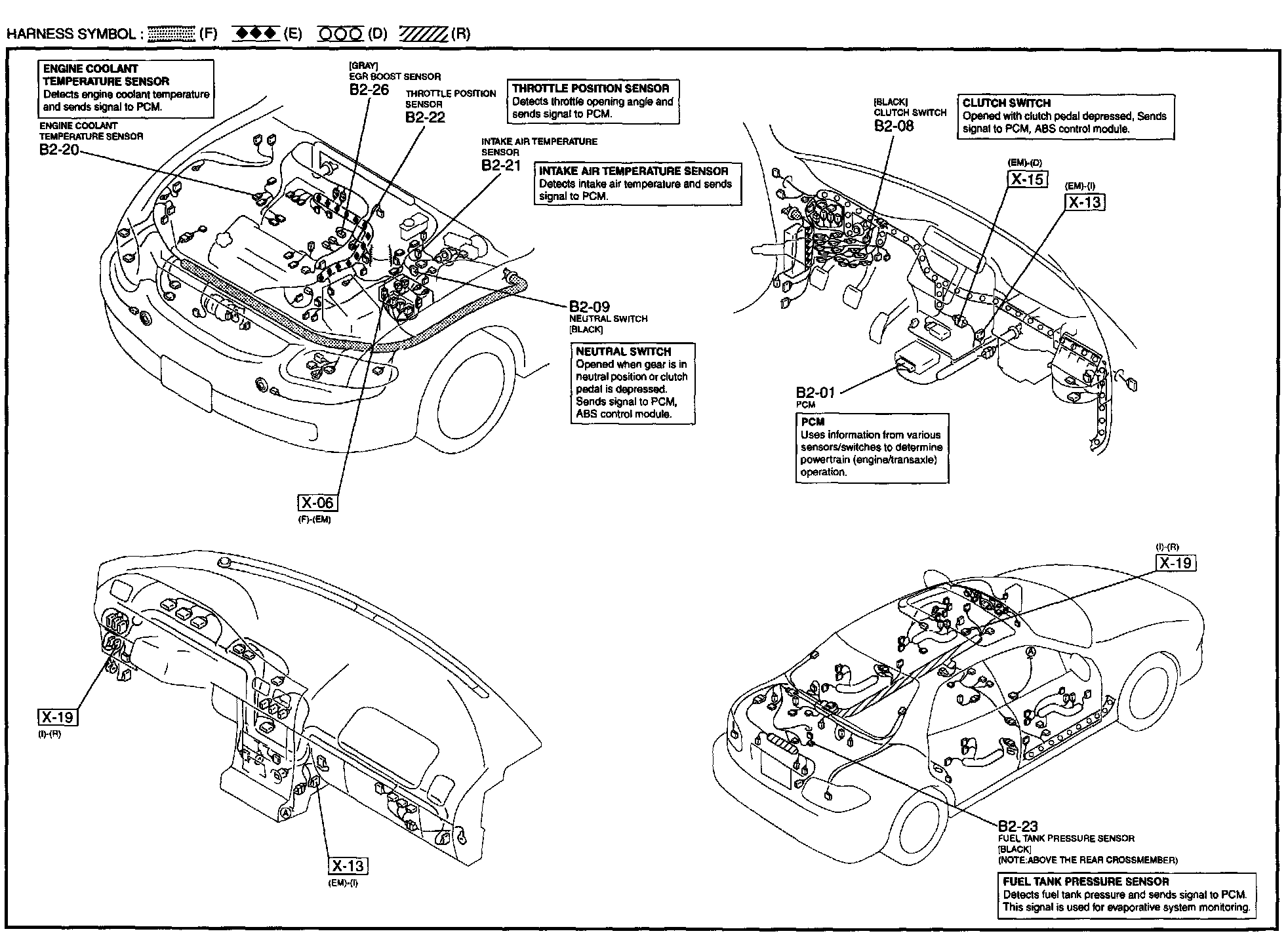

B-1 - EC-AT Control System / Engine Control System

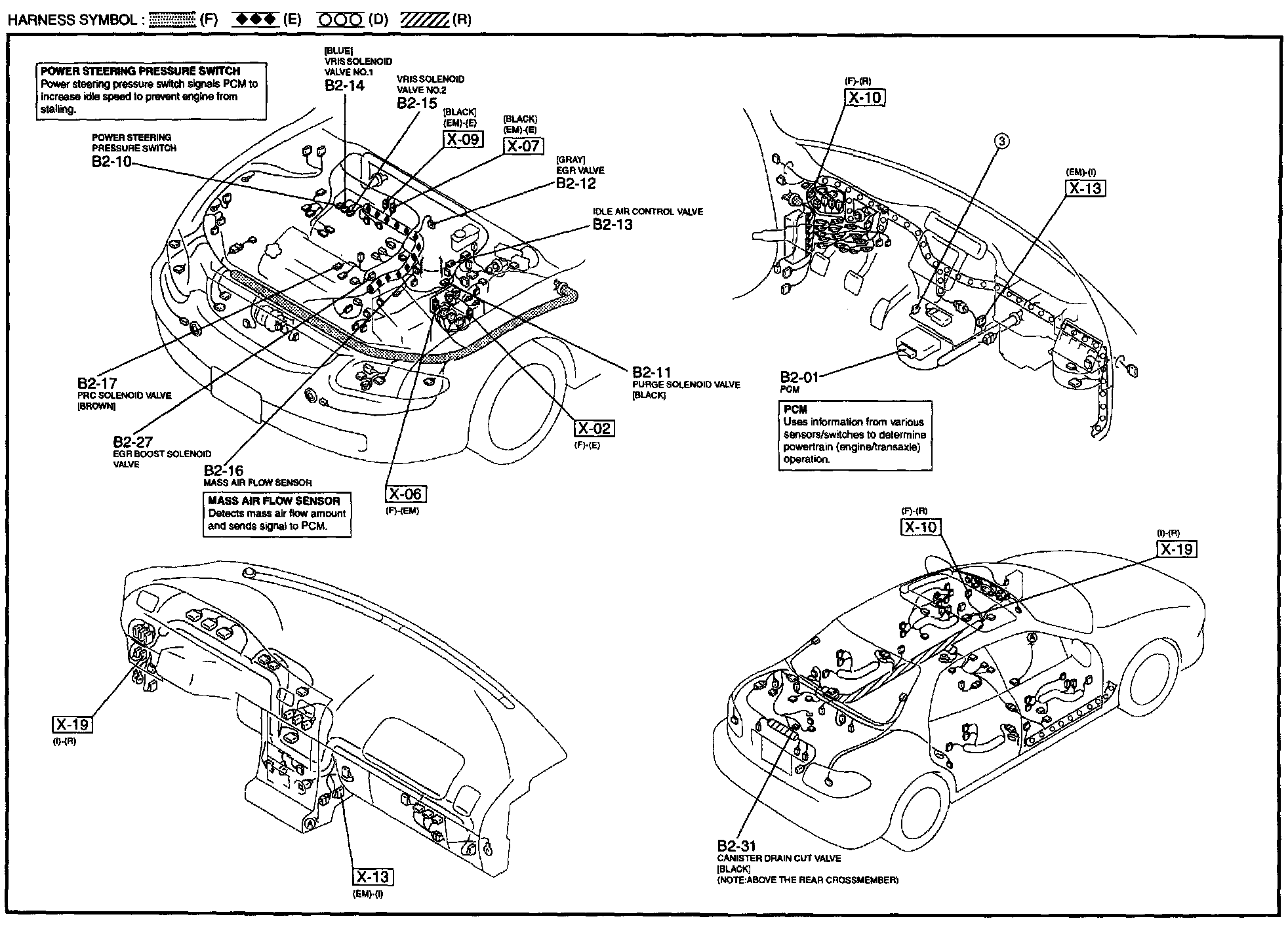

B-2a - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:

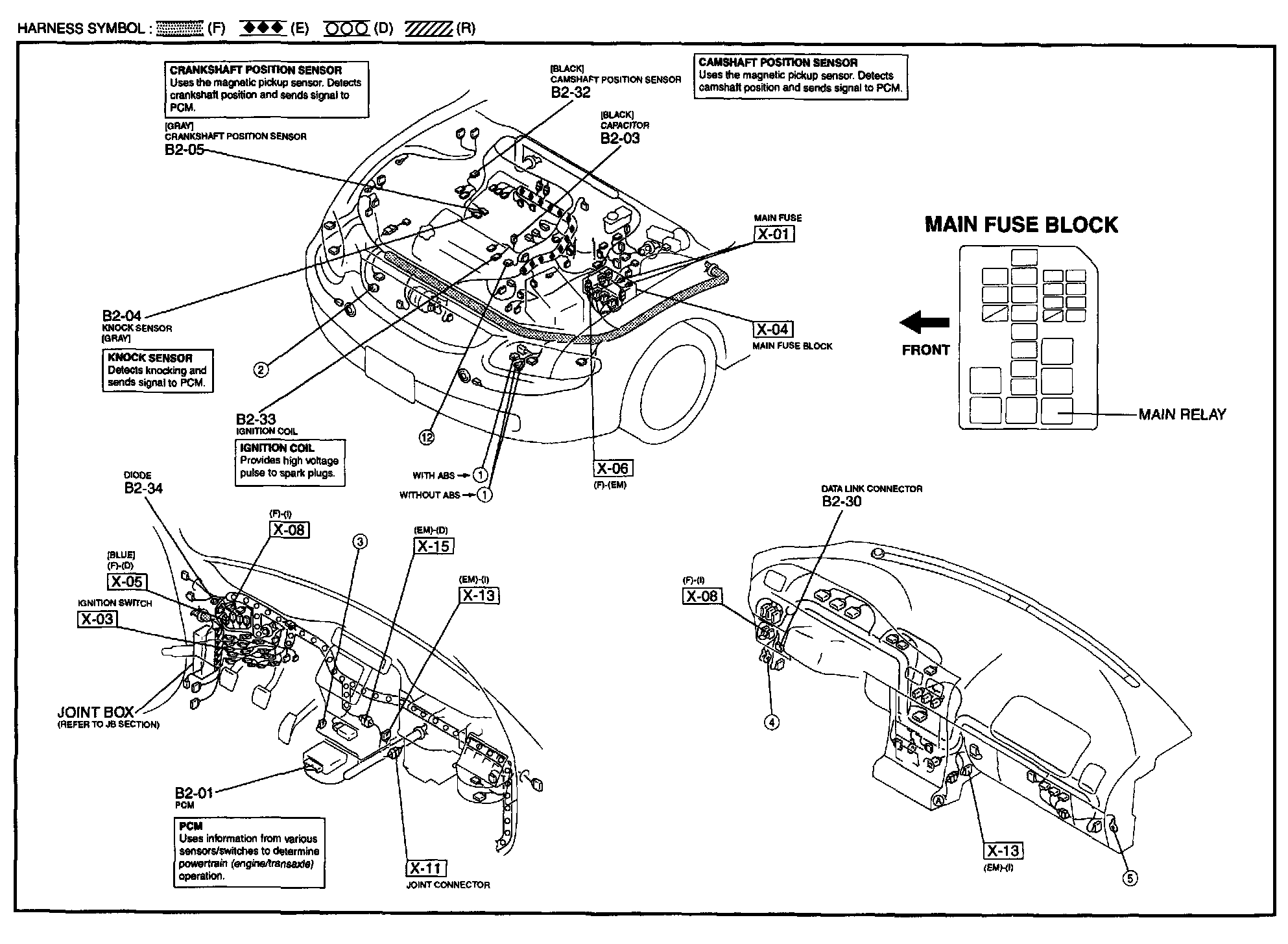

B-2b - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:

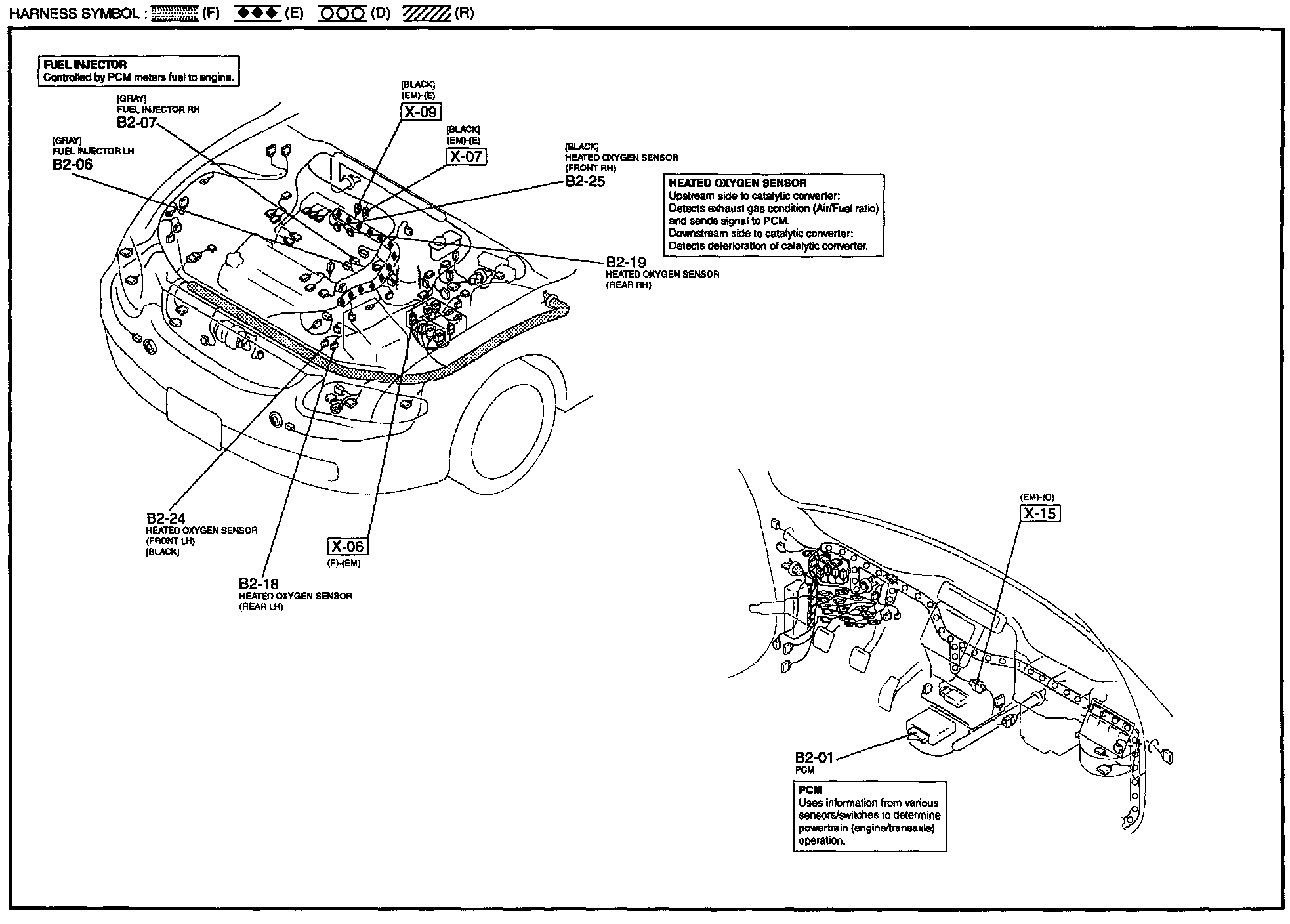

B-2c - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:

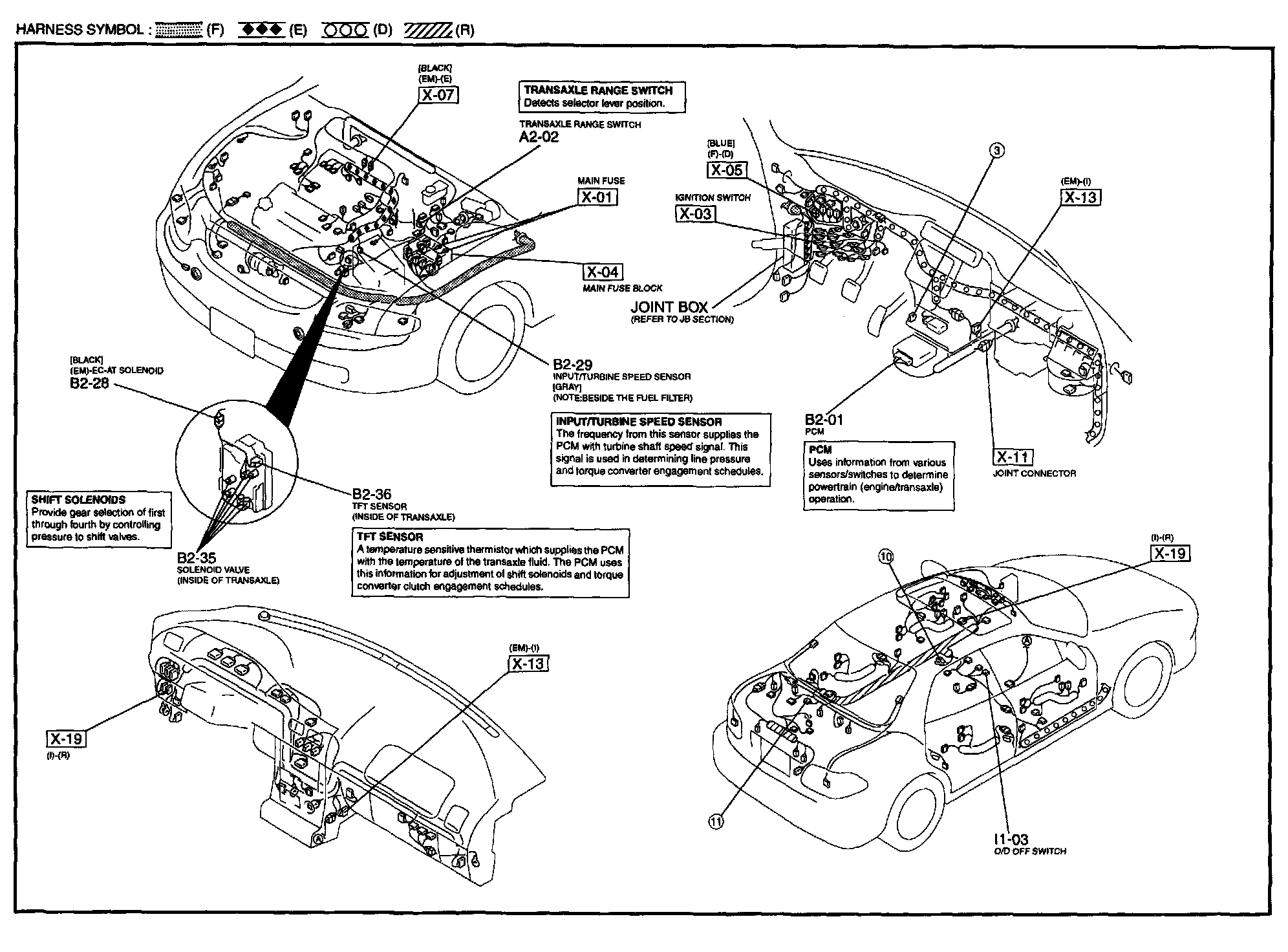

B-2d - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:



B-2e - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:
