Drive Mode Implementation Condition

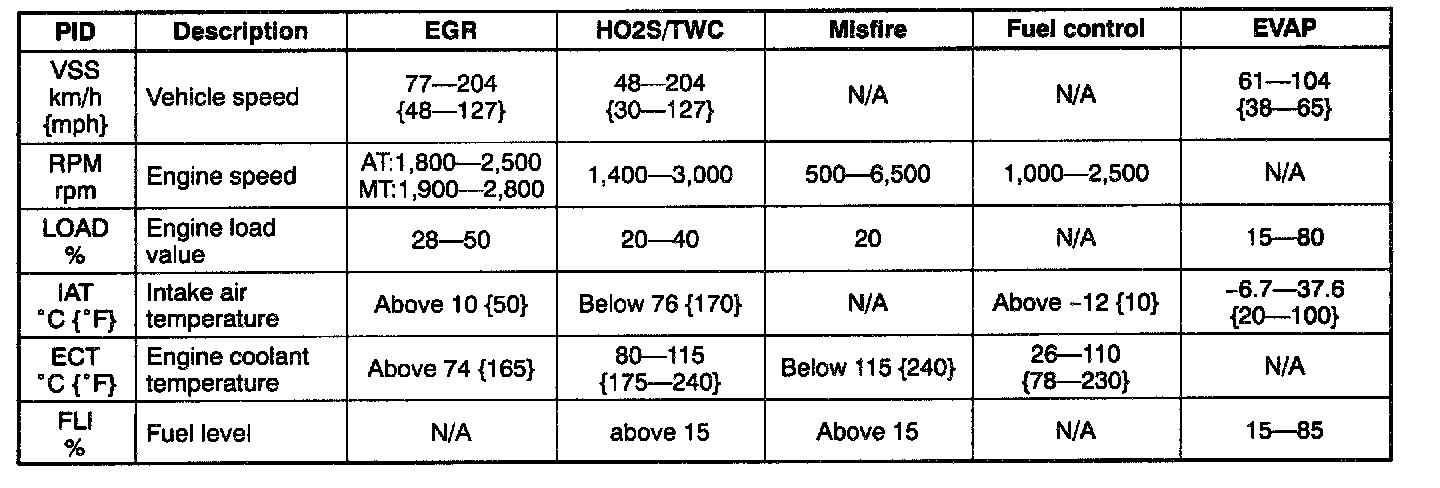

Each OBD II system is monitored (for less than 1 minute) when the specifications below are met.

NOTE:
- HO2S/TWC monitoring will begin 5 minutes after starting the engine.
- EVAP system monitoring will begin 4 minutes from engine start, and quit monitoring after 10 minutes. If monitoring is required after 10 minutes, the engine must be turned off, then restarted.
