Emission Control Systems: Locations

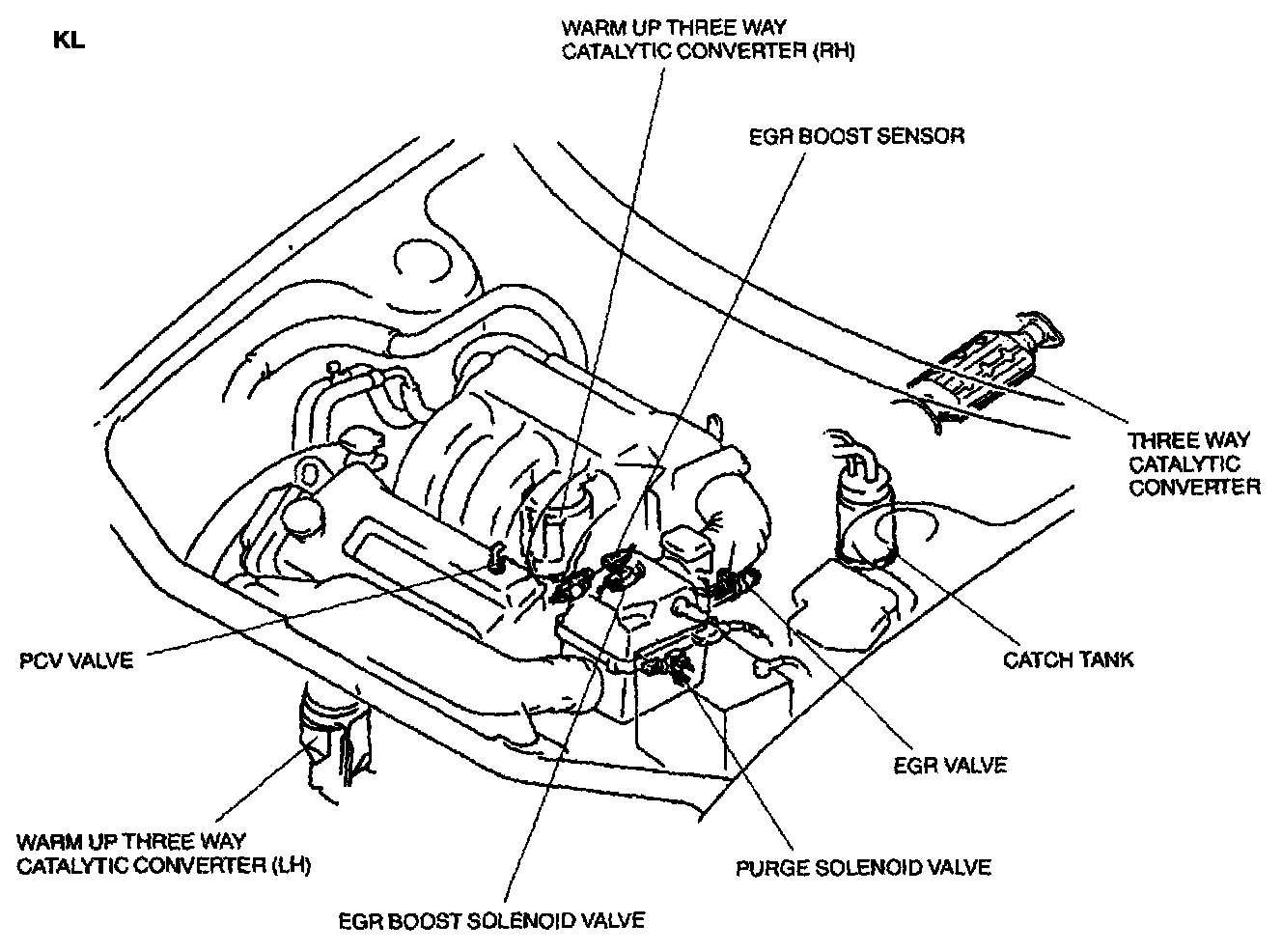

Structural View - Engine Room Side (Part 1):

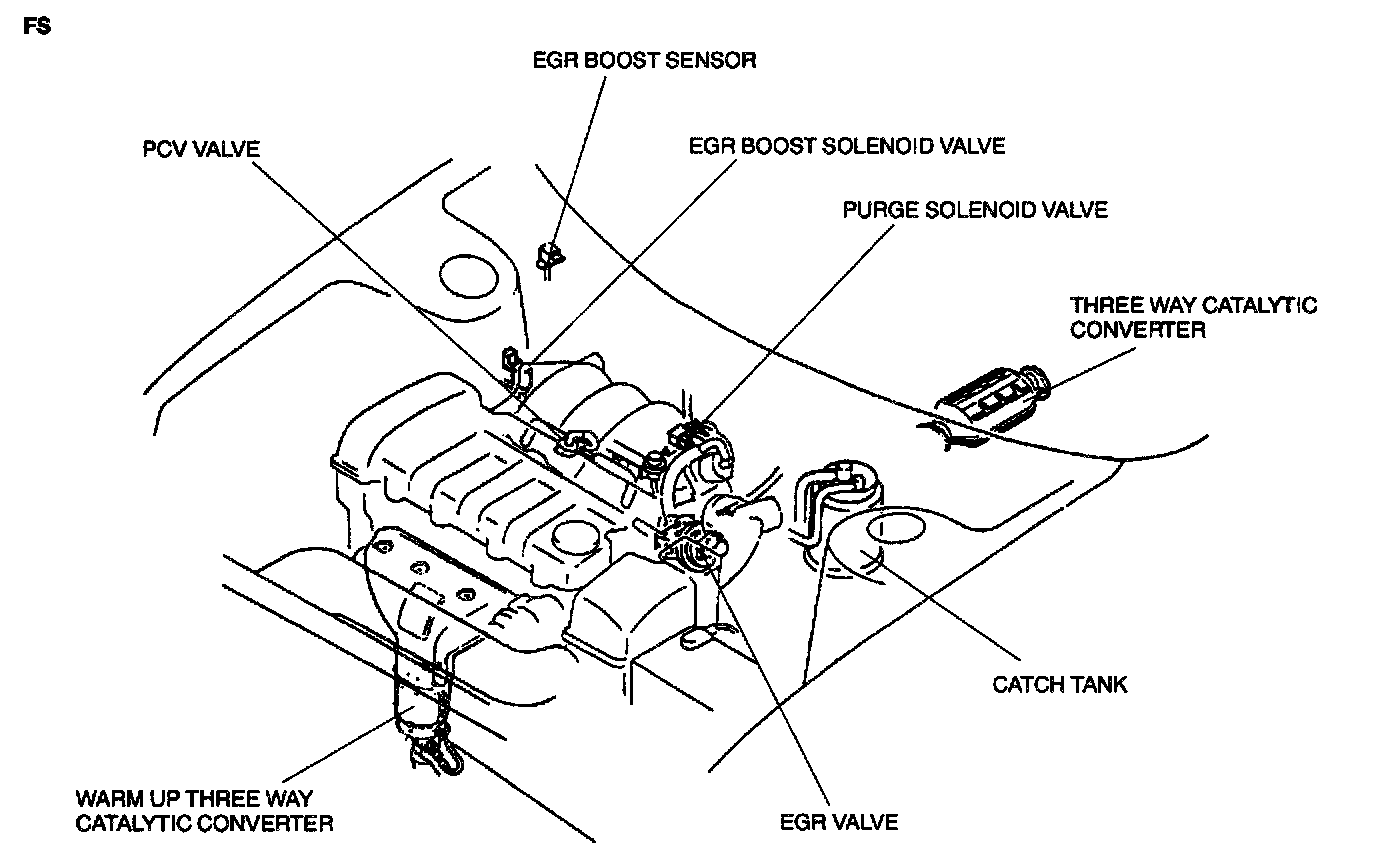

Structural View - Engine Room Side (Part 2):

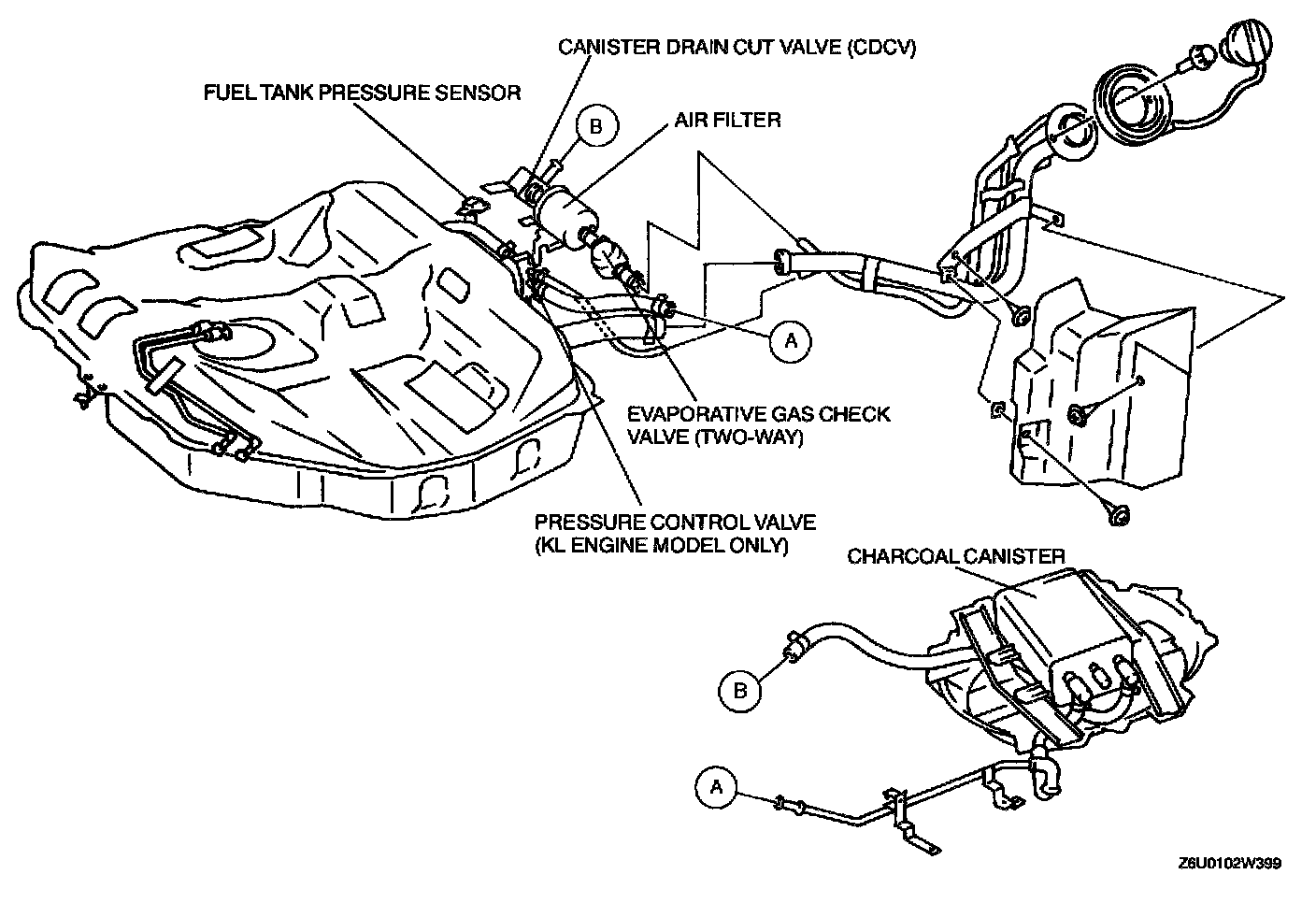

Fuel Tank Side:
