Central Control Module

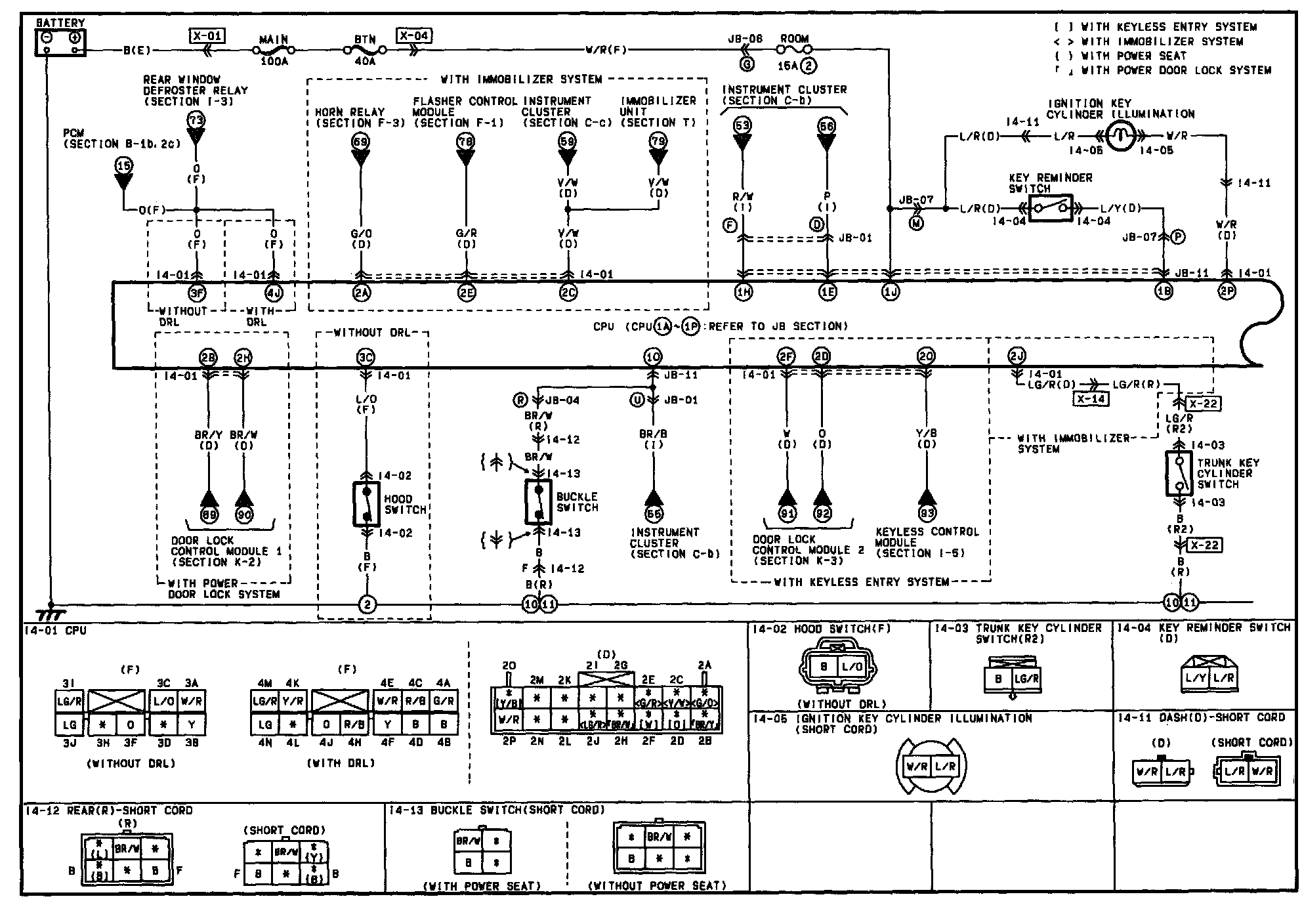

I-4a - Central Processing Unit (CPU) Circuit:

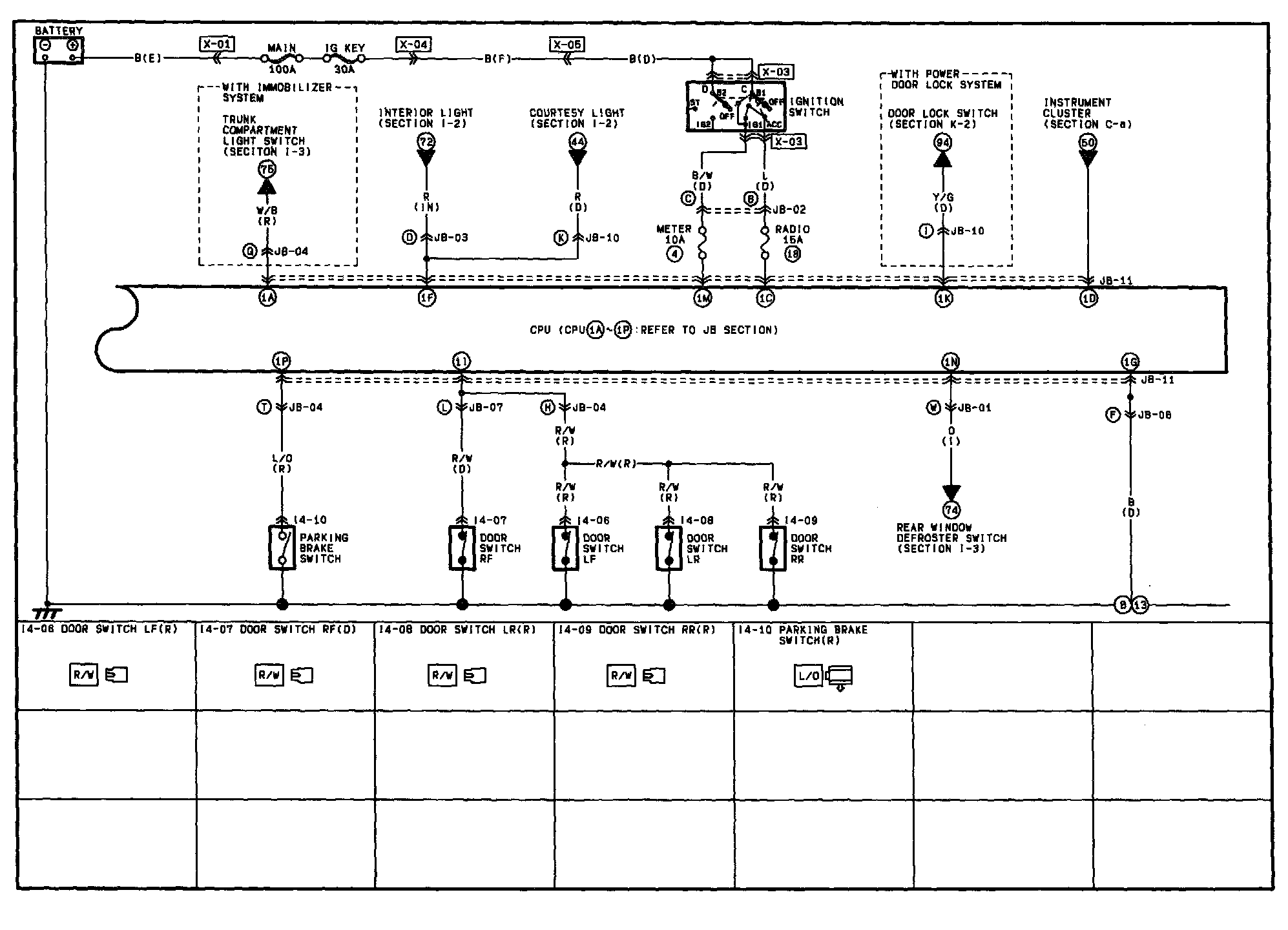

I-4b - Central Processing Unit (CPU) Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
