Control System
Control System

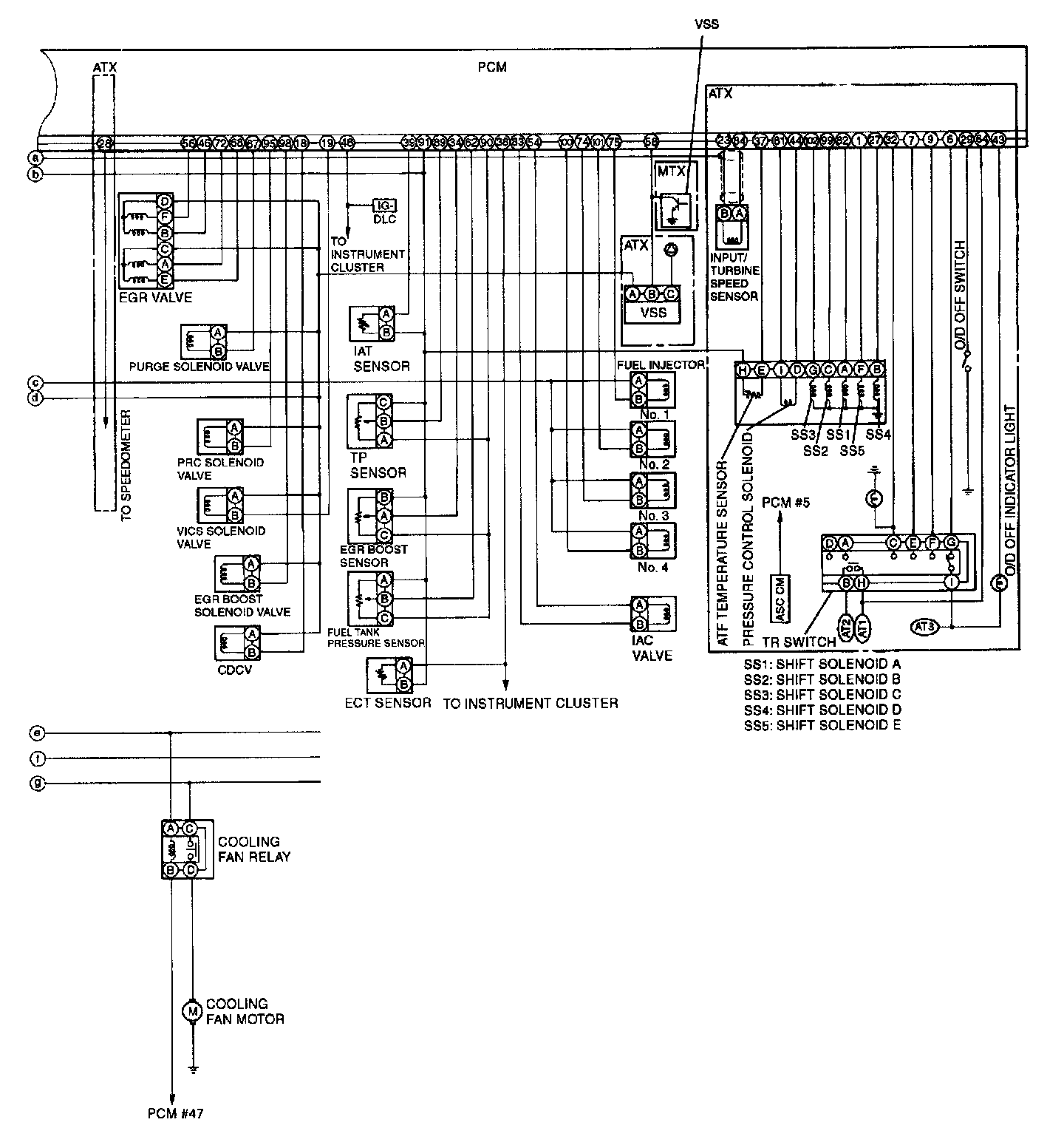

Control System Wiring Diagram (Part 1 Of 2):

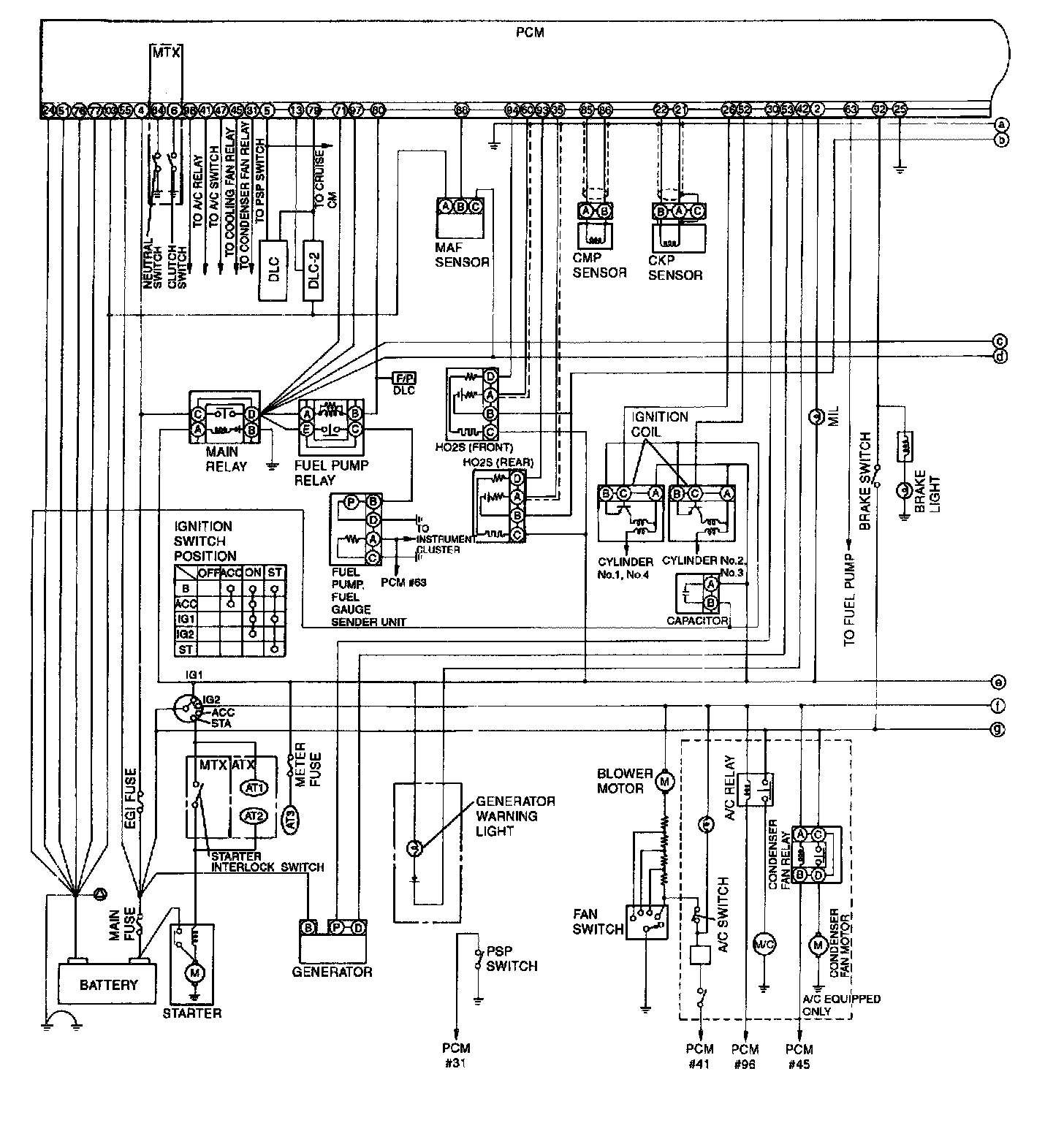

Control System Wiring Diagram (Part 2 Of 2):

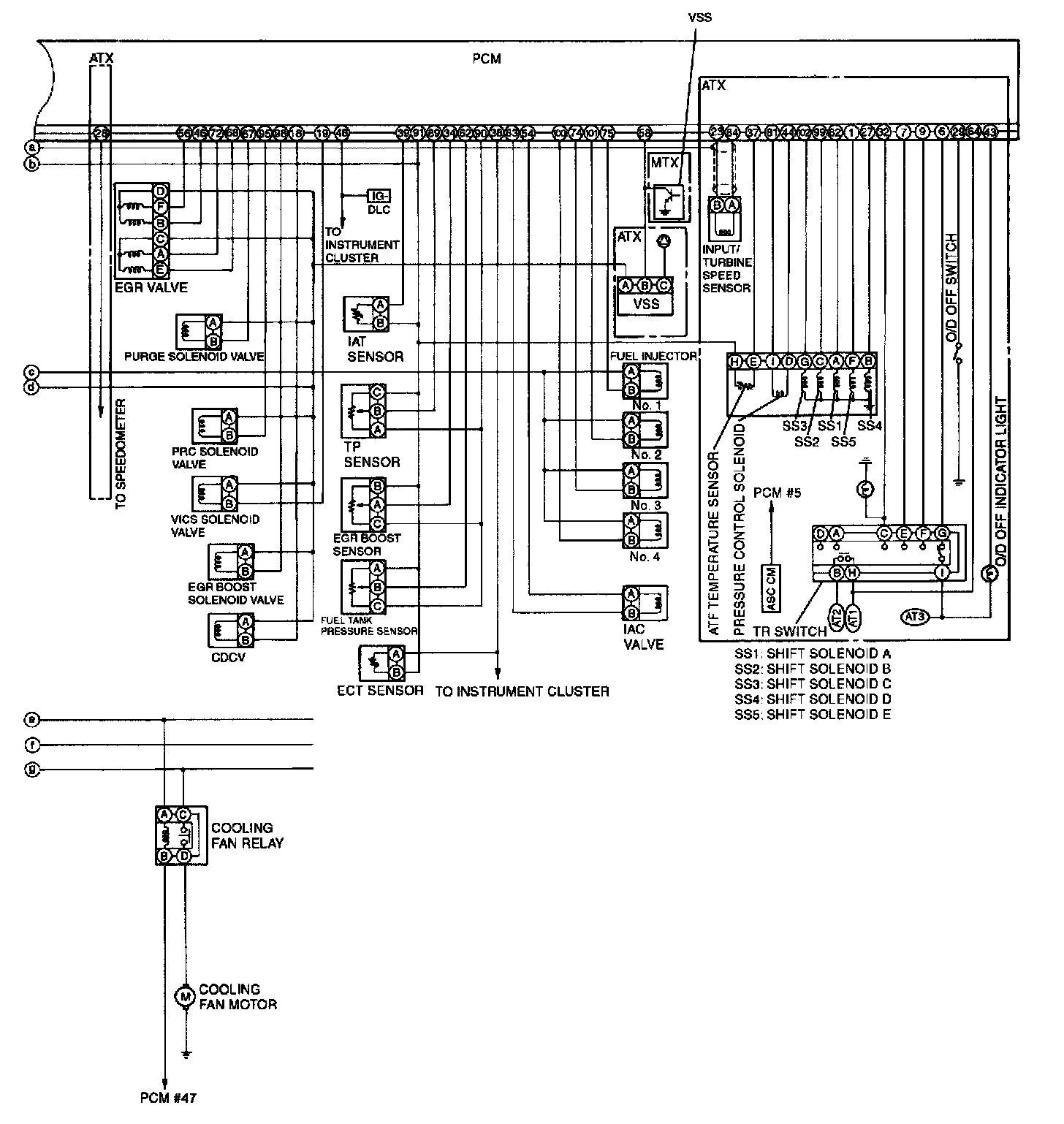

Control System Wiring Diagram (Part 1 Of 2):

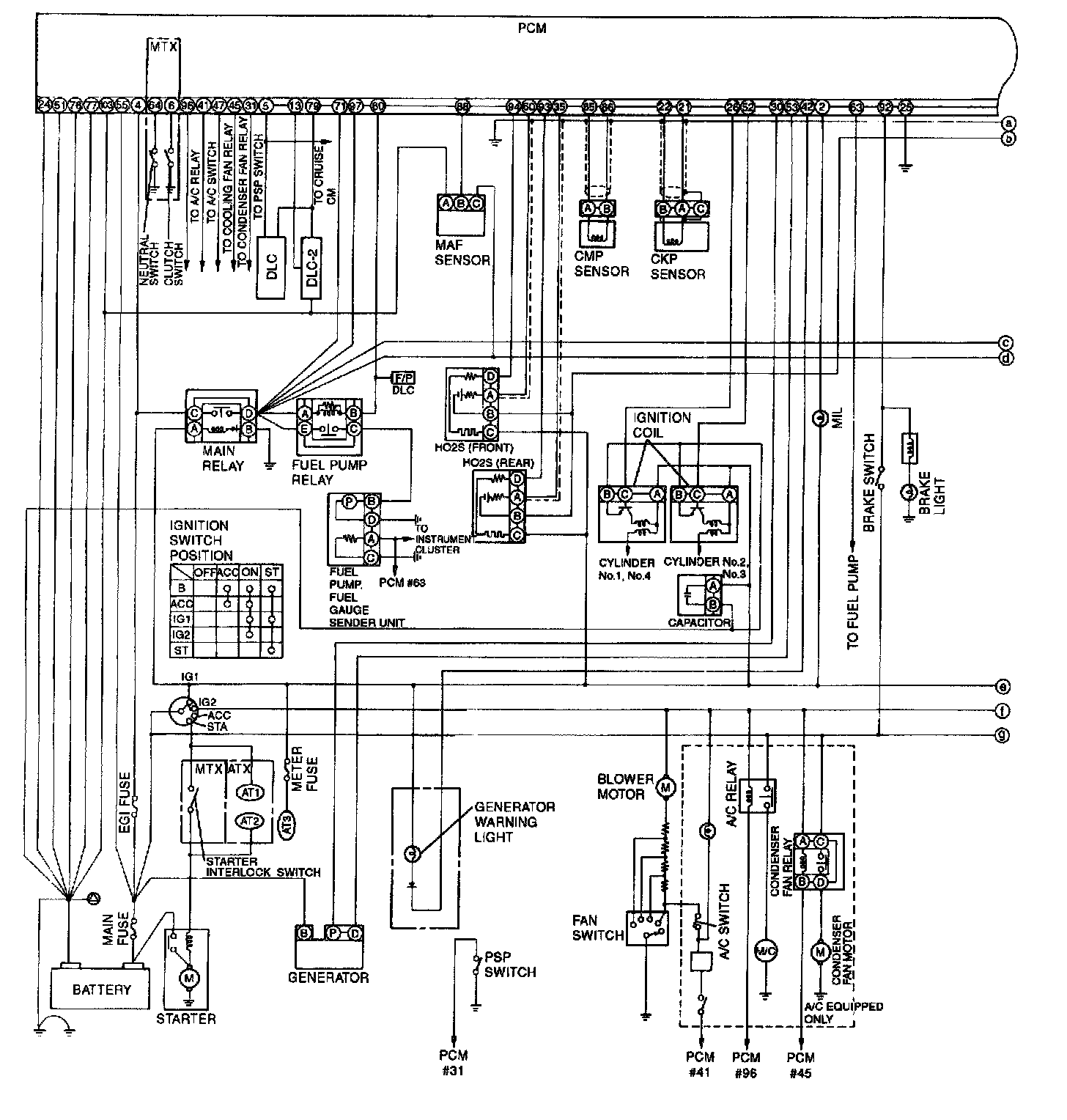

Control System Wiring Diagram (Part 2 Of 2):
