Home
>>
Mazda
>>
2000
>>
Protege DX L4-1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

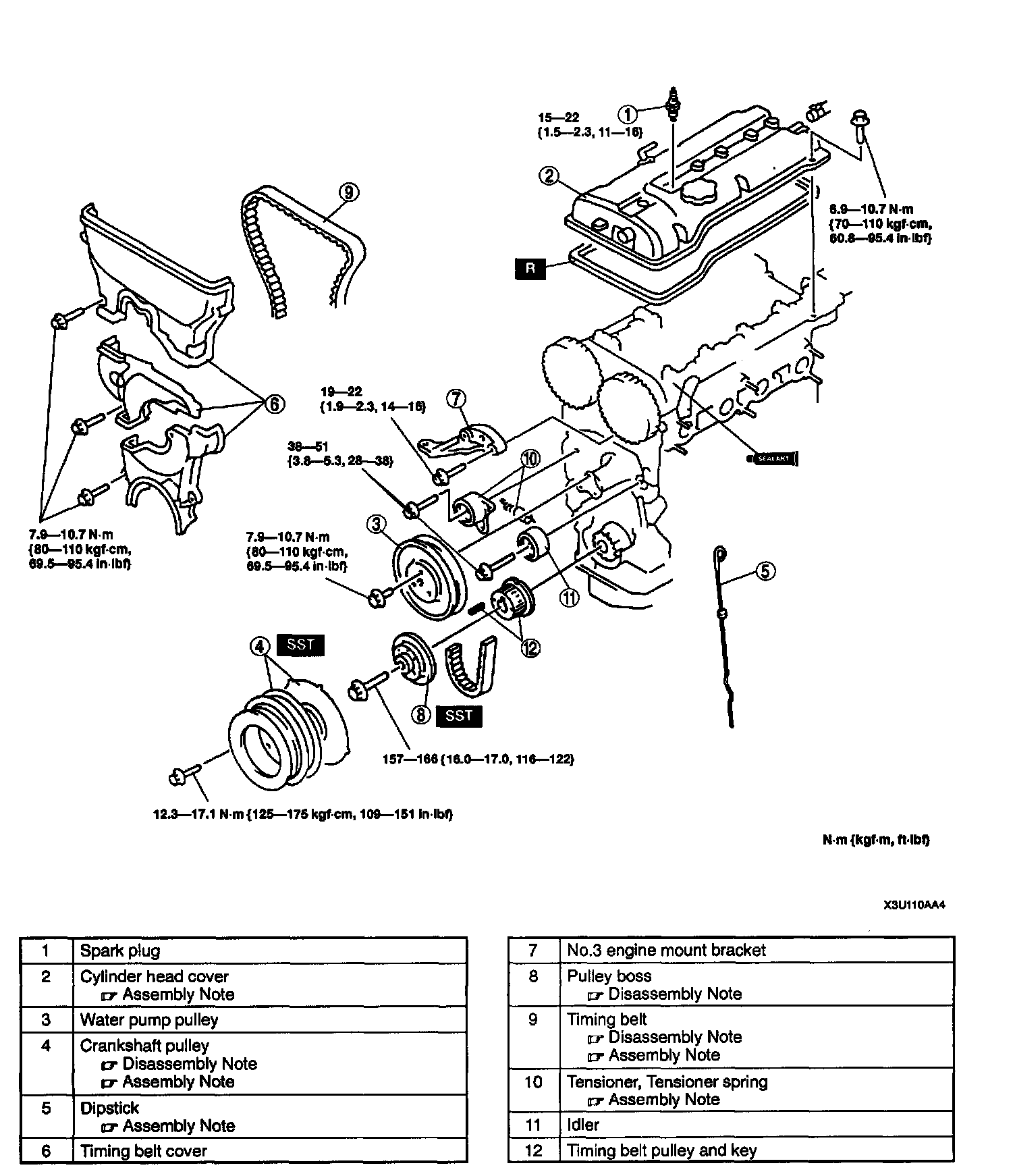

TIMING BELT
W/ RELATED COMPONENTS
CYLINDER HEAD W/ RELATED COMPONENTS
CYLINDER BLOCK W/ RELATED COMPONENTS
