Cylinder Head Assembly

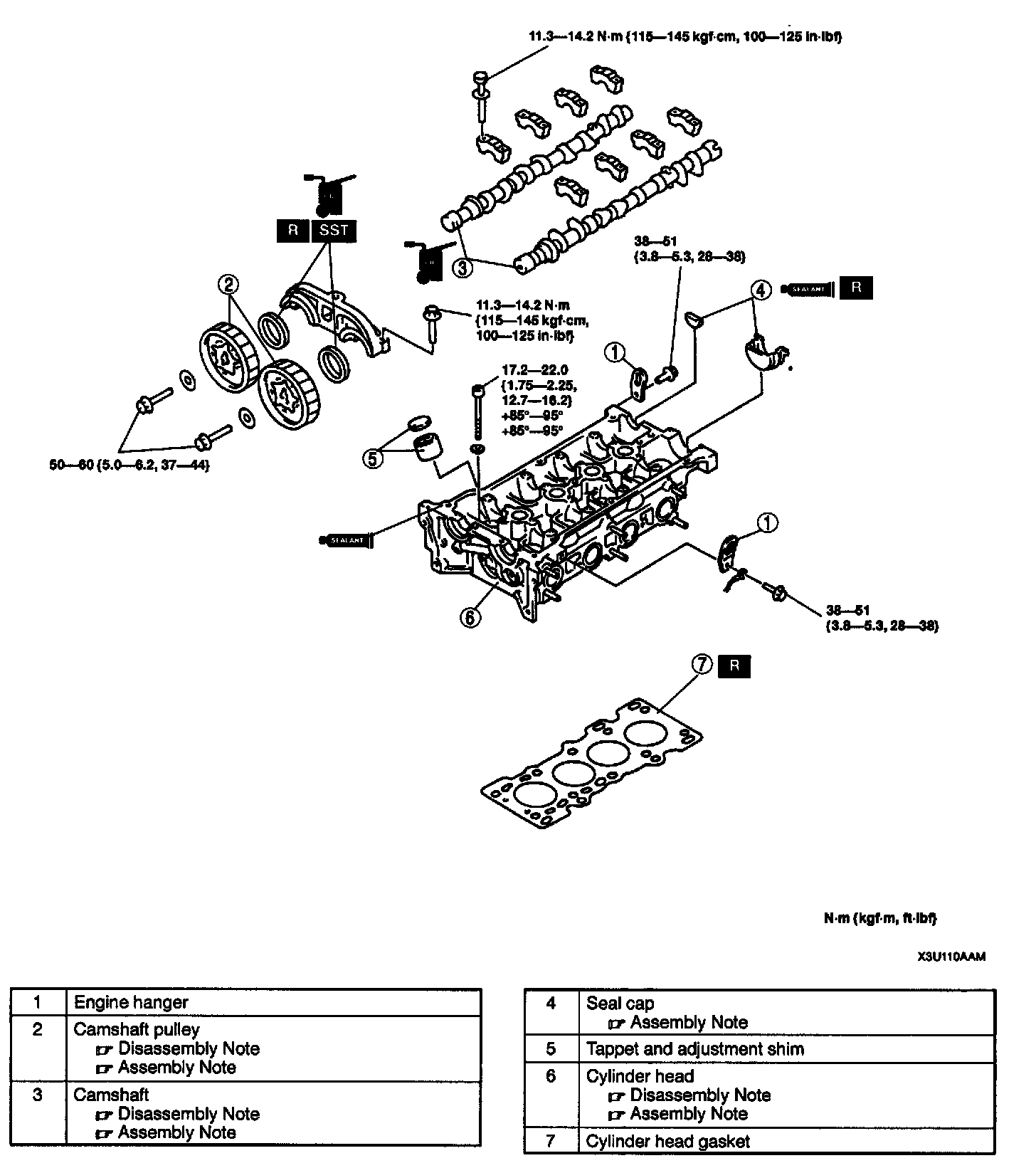

Cylinder Head (I) Disassembly/Assembly

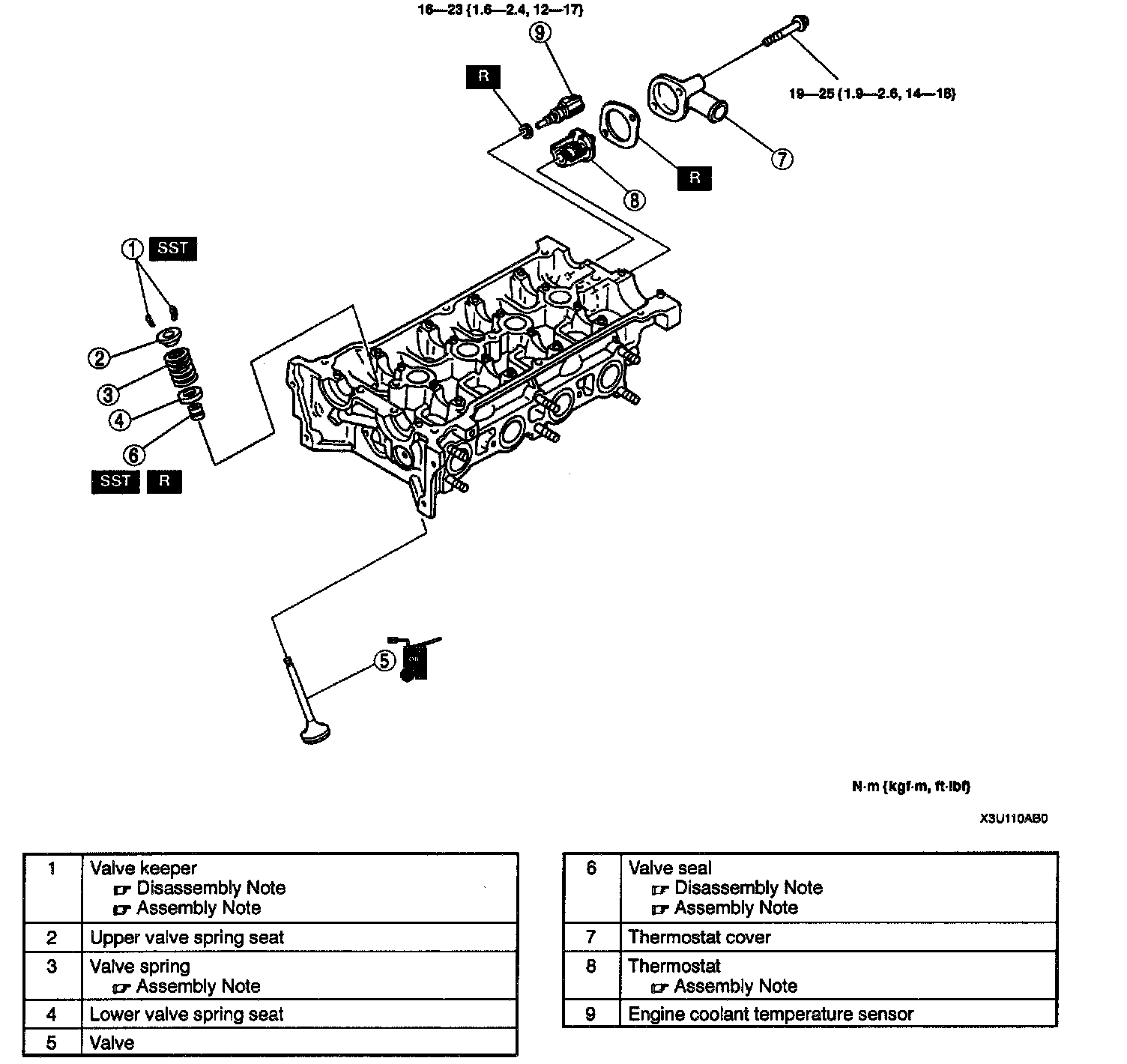

Cylinder Head (II) Disassembly/Assembly
