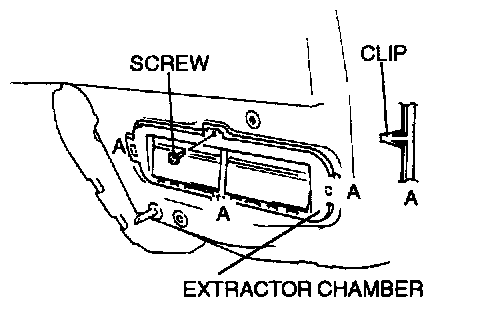

Extractor Chamber

1. Remove the rear bumper.
2. Remove the passenger-side trunk side trim.




3. Remove the screw.
4. Squeeze the clips with your fingers and remove the extractor chamber from the vehicle side.
5. Install in the reverse order of removal.
