Power Window Switch: Testing and Inspection

1. Disconnect the negative battery cable.
2. Remove the power window switch.

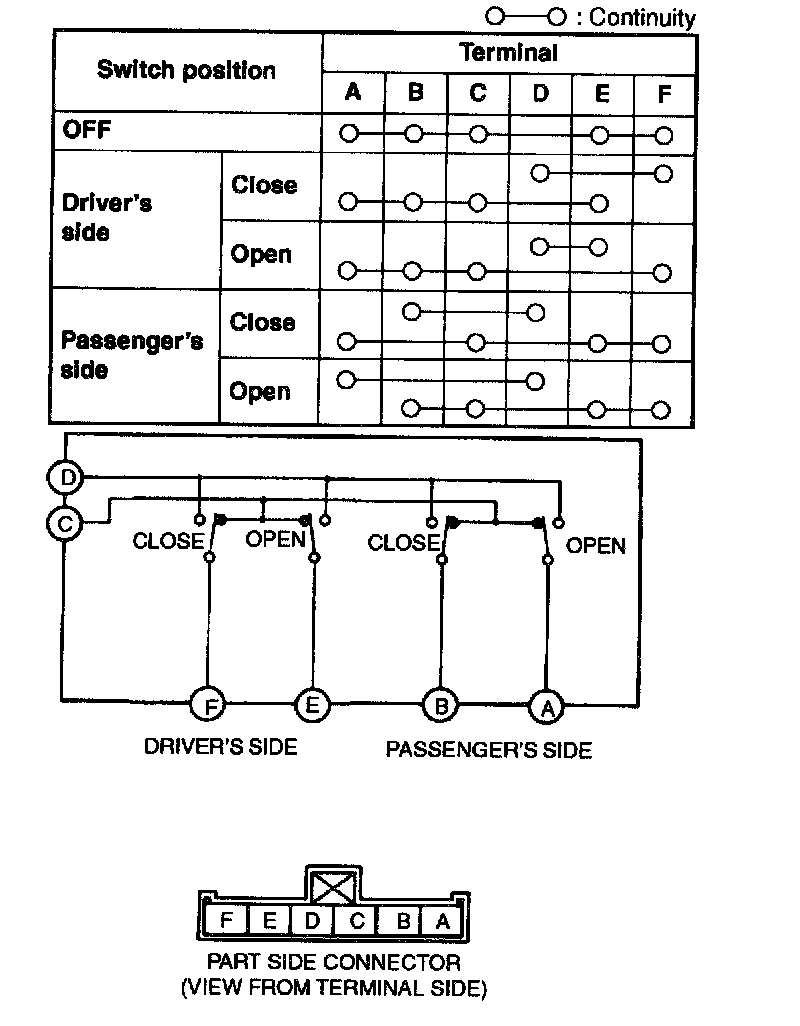

3. Inspect for the continuity between the power window switch terminals using an ohmmeter.
- If not as specified, replace the power window switch.
