System Diagram
System Diagram

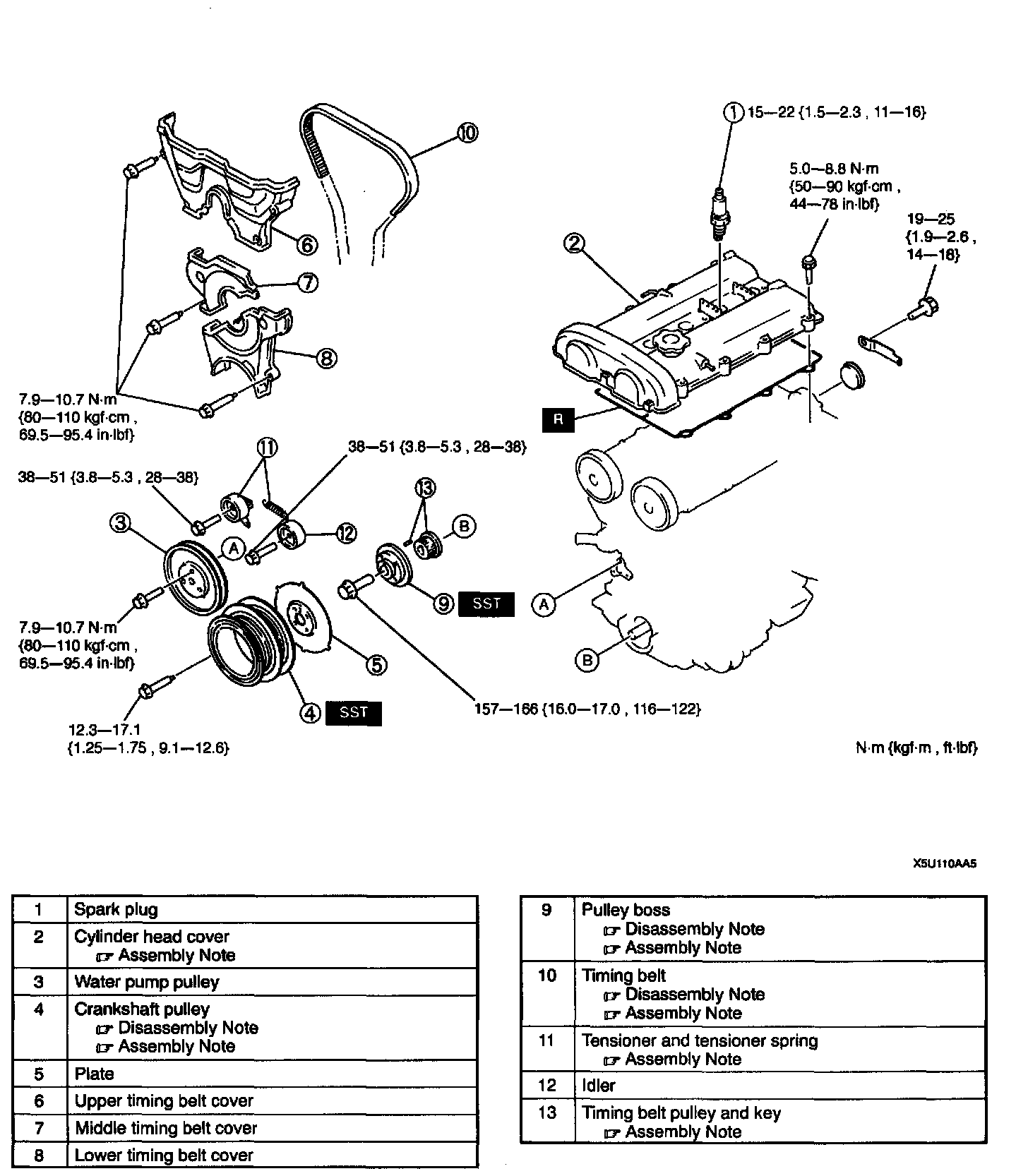

TIMING BELT
W/ RELATED COMPONENTS

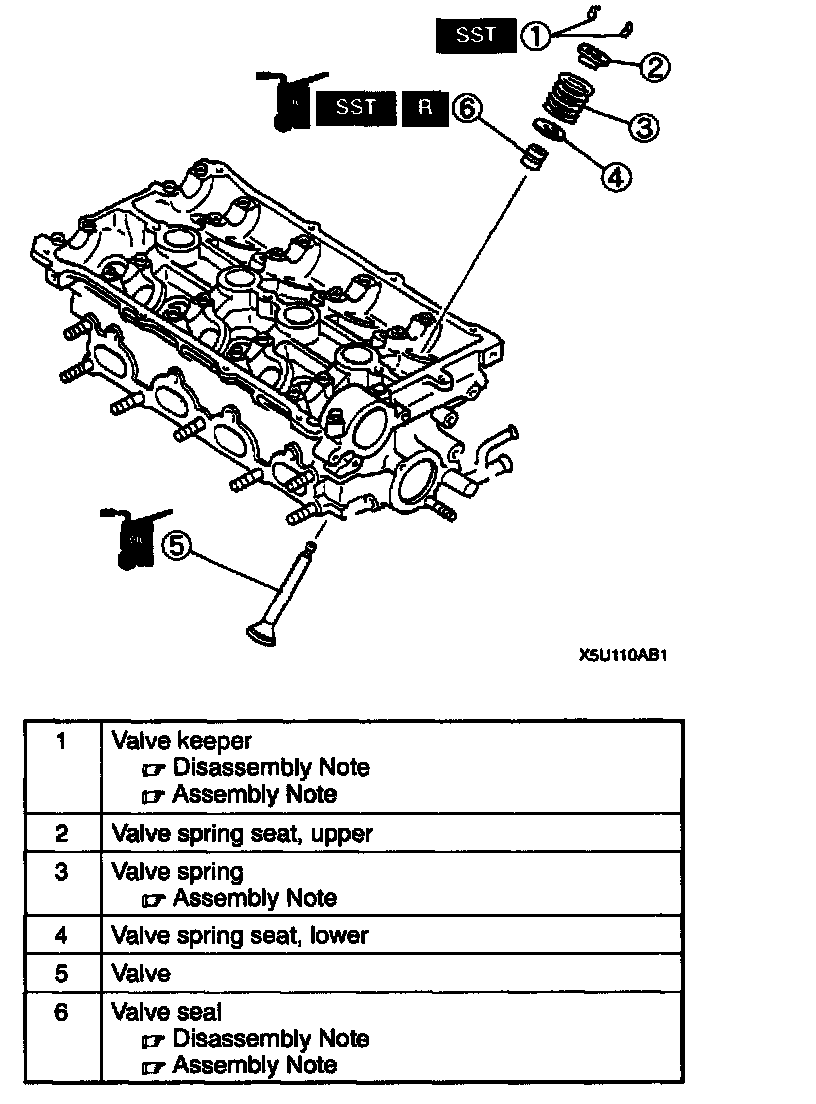

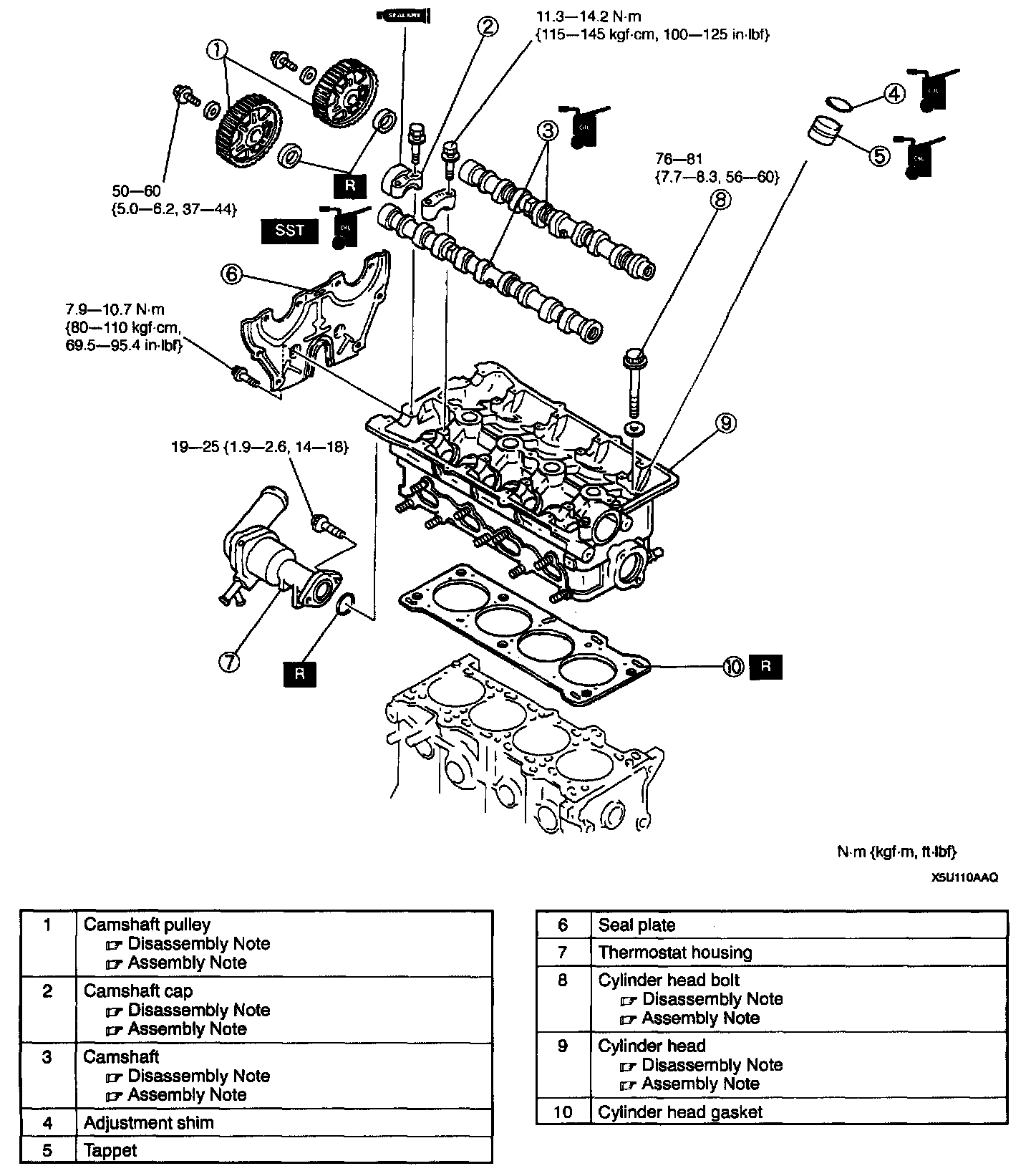

CYLINDER HEAD W/ RELATED COMPONENTS
CYLINDER BLOCK W/ RELATED COMPONENTS
