Wheel Alignment Specifications

WARNING: This page is about a different car, the 2003 Mazda MPV and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Use illustration for wheel alignment specifications. See Fig 1 .

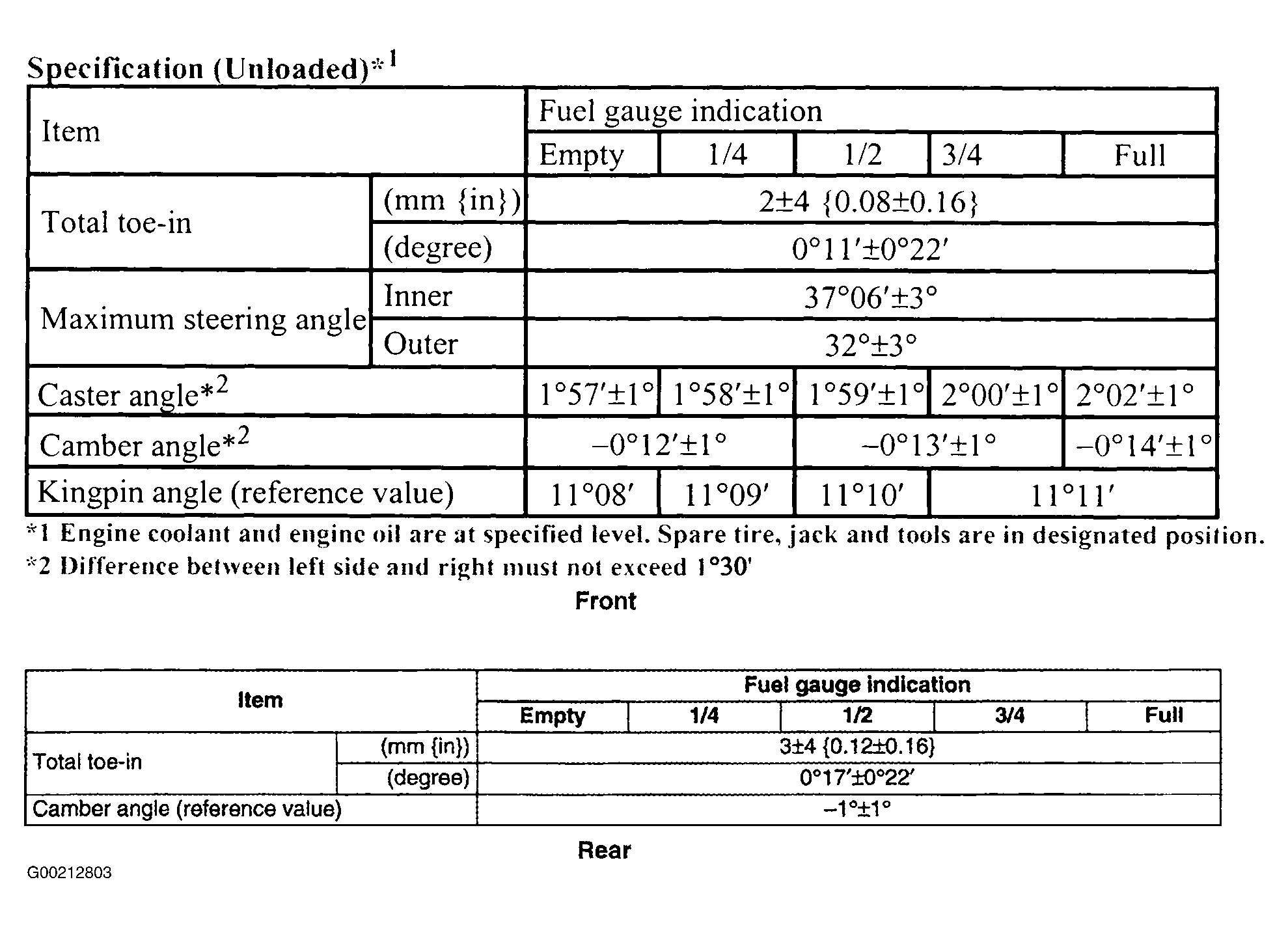

Fig 1: Wheel Alignment Specifications

Courtesy of MAZDA MOTORS CORP.
