Shift Interlock Switch: Testing and Inspection

P POSITION SWITCH (BUILT-IN SELECTOR LEVER) INSPECTION
Continuity Inspection
1. Disconnect the negative battery cable.
2. Remove the column cover.

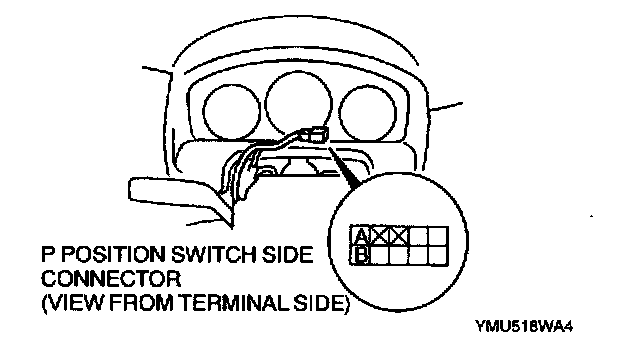

3. Disconnect the connector.

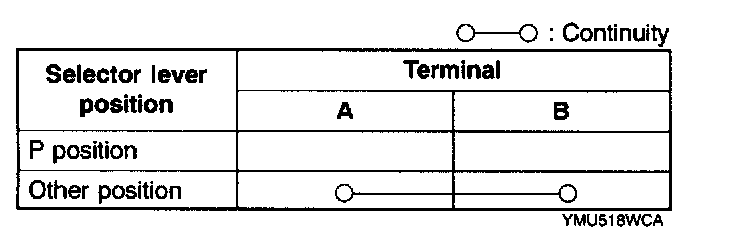

4. Inspect for continuity.
- If not as specified, replace selector lever.
5. Connect the connector.
6. Install the column cover.
7. Connect the negative battery cable.
