Home >> Mazda >> 2000 >> MPV ES V6-2.5L DOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Service and Repair >> Disassembly/Assembly

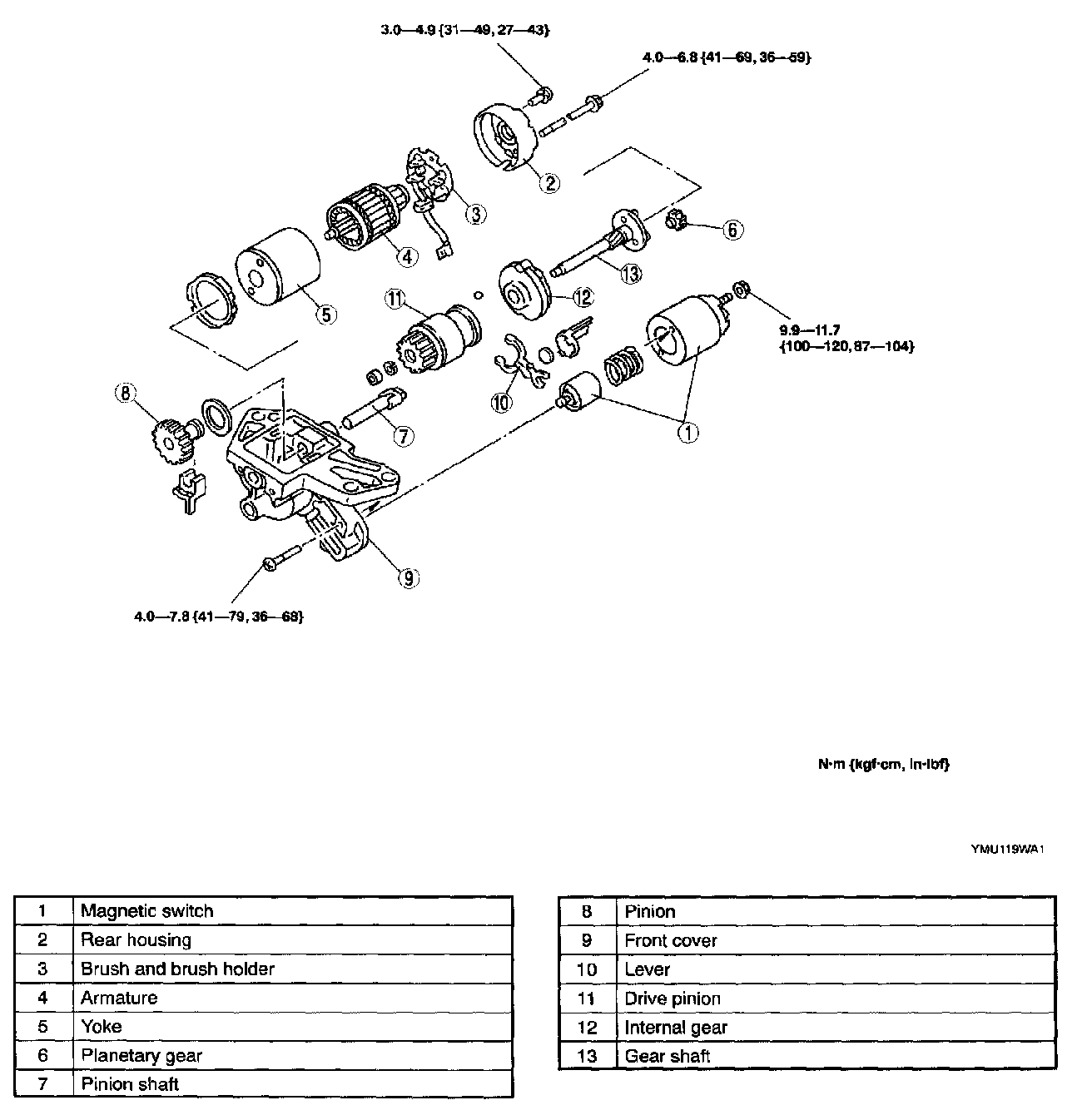

Disassembly/Assembly




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
