Mirrors: Testing and Inspection

POWER OUTSIDE MIRROR INSPECTION

1. Disconnect the power outside mirror connector.

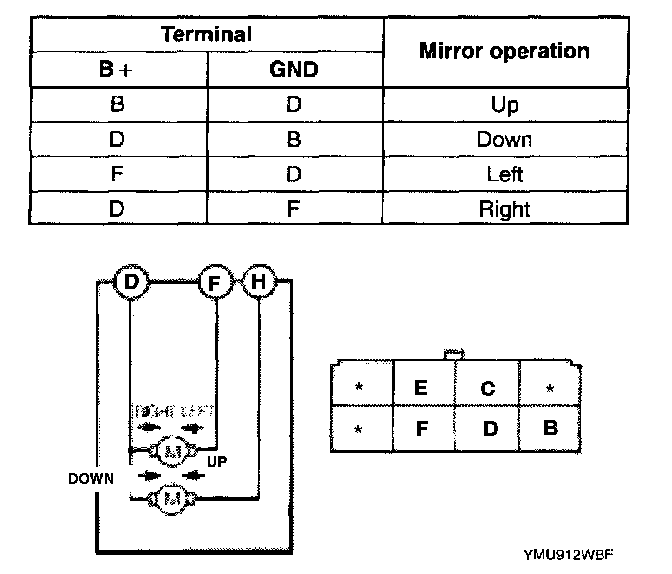

2. Apply battery positive voltage to the power outside mirror terminals and inspect the operation of the power outside mirror.
- If not as specified, replace the power outside mirror.

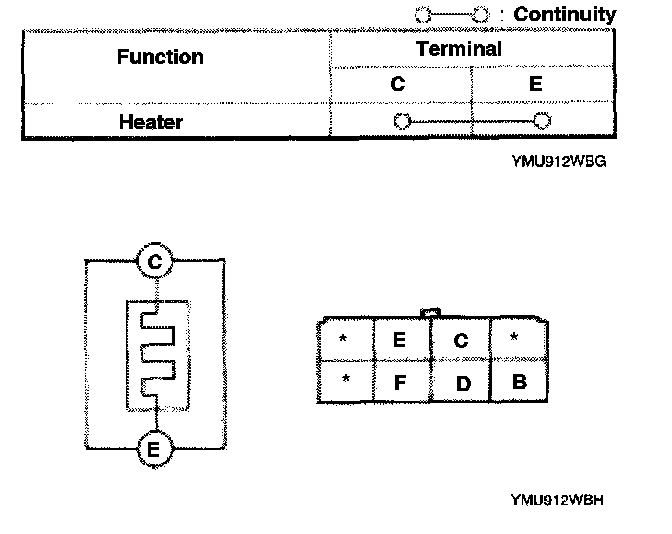

3. Inspect for continuity between the power outside mirror terminals.
- If not as specified, replace the power outside mirror.
