Differential Assembly

SPECIFICATIONS





Front Differential

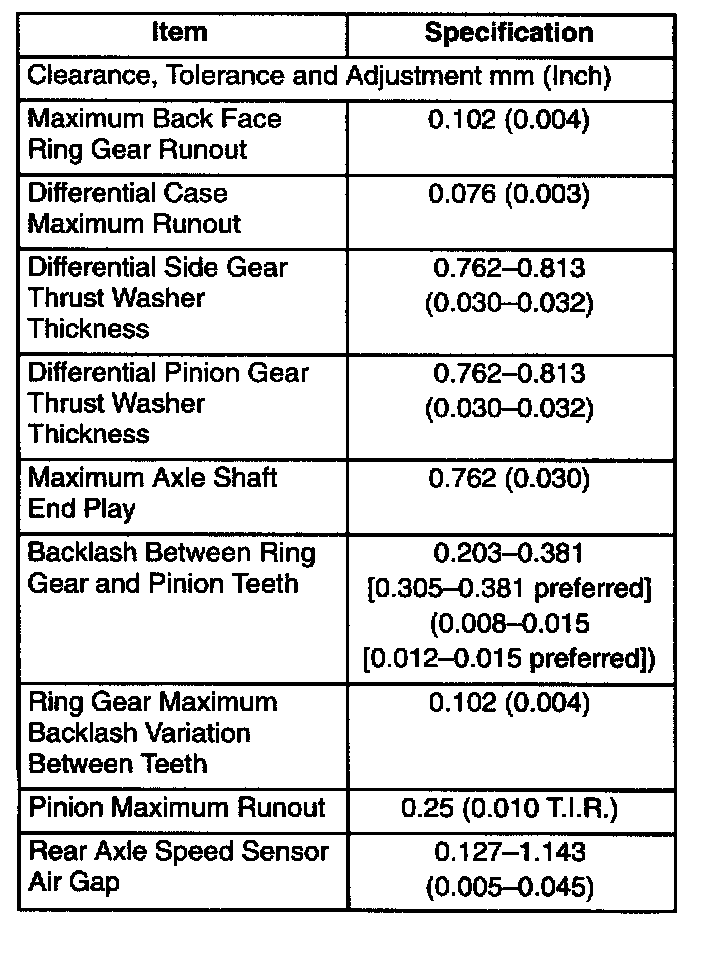

Rear Differential

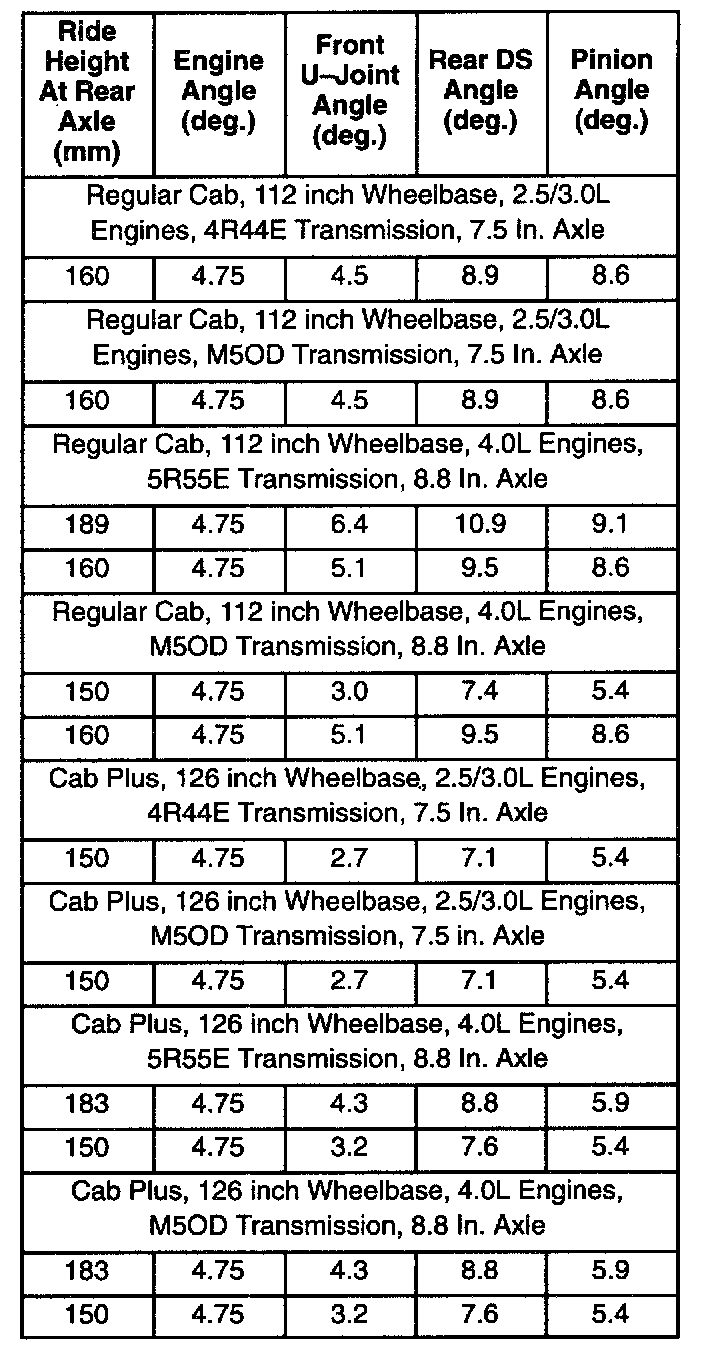

Rear Driveline Angles @ Curb (4x2)

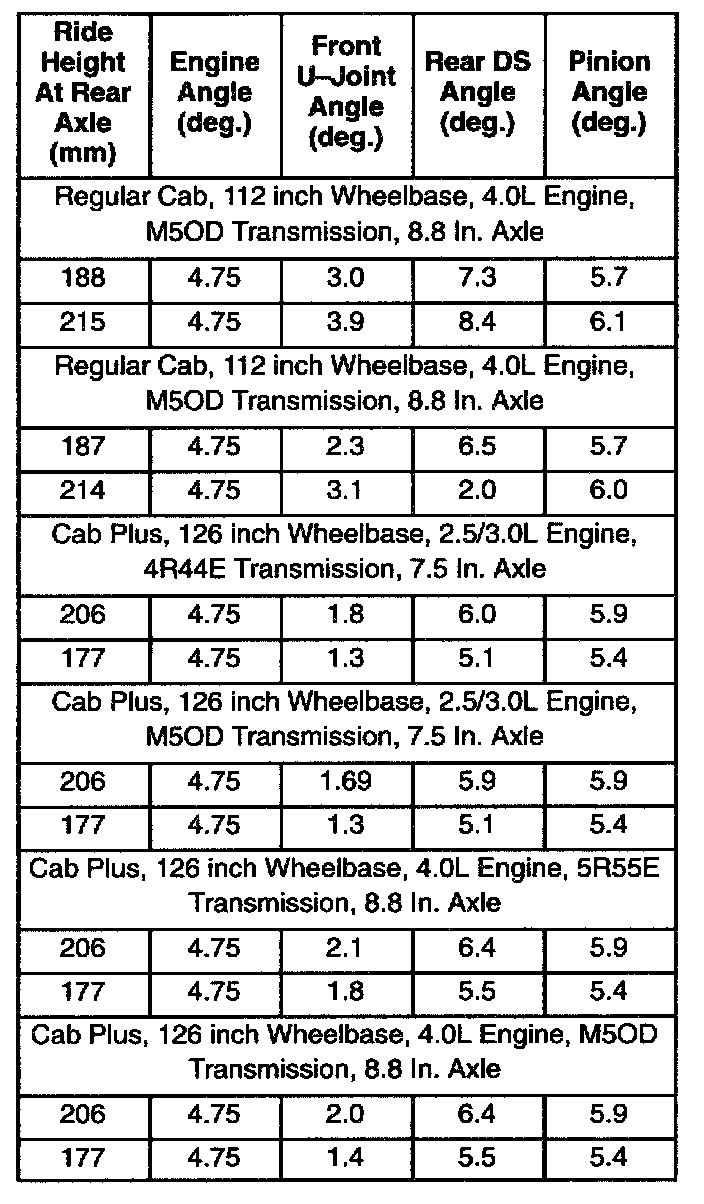

Rear Driveline Angles @ Curb (4x4)
