Brake Signal: Description and Operation

Brake Switch Description
The Brake switch detects the brake pedal depressed/released condition.

Operation

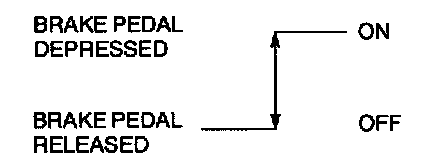

The brake switch operates according to the switch operation condition as shown.
