Compressor Relay

A/C RELAY, BLOWER RELAY, AND CONDENSER FAN RELAY INSPECTION
1. Remove the relay.

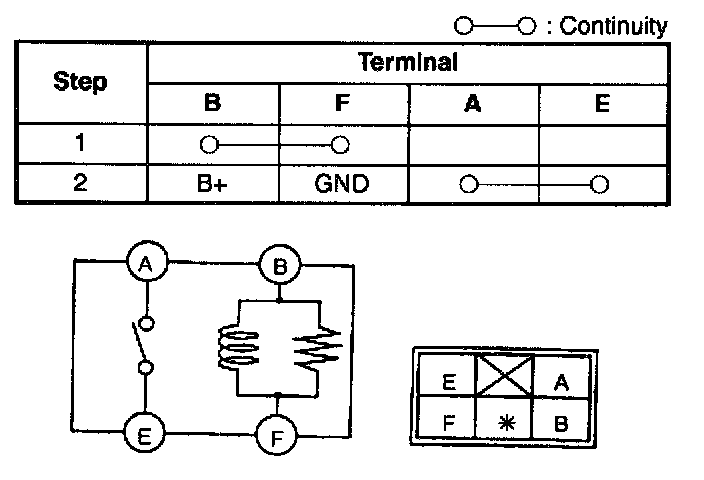

2. Check for continuity between the relay terminals by using an ohmmeter.
- If not as specified, replace the relay.
