Mazda
>>
2000
>>
626 ES V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>

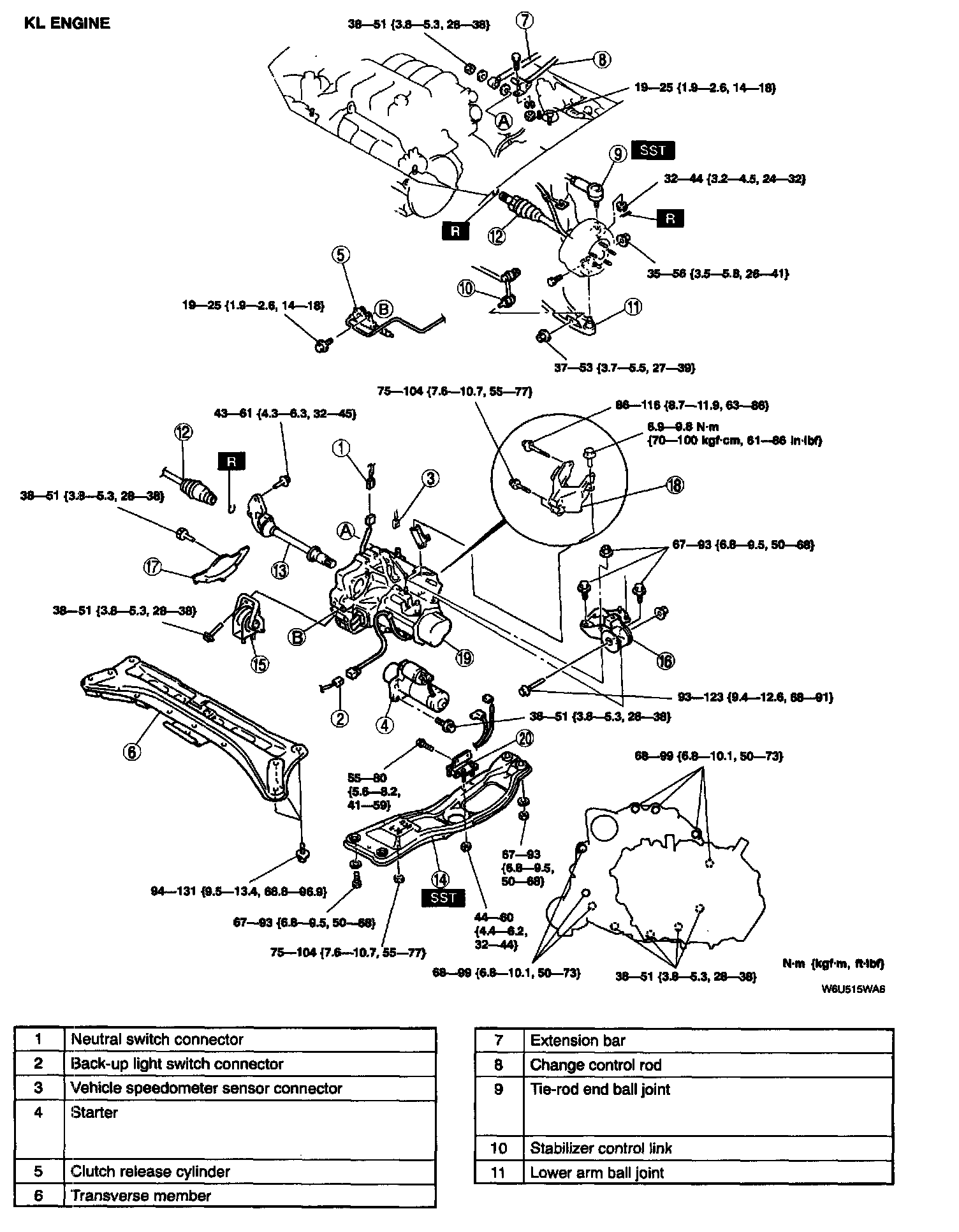

Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
System Diagram
