Clutch Switch Inspection

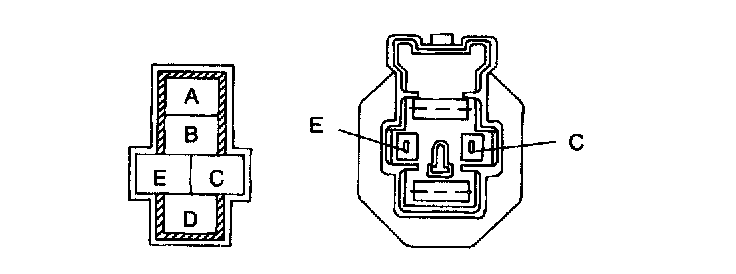

1. Disconnect the clutch switch connector.

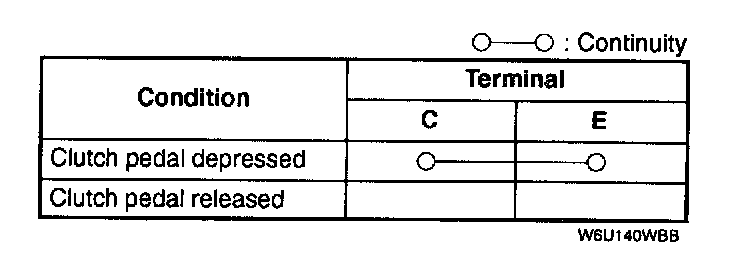

2. Check continuity of the clutch switch by using an ohmmeter.
- If okay, inspect related harness and connectors.
