Map Light: Service and Repair

1. Disconnect the negative battery cable.

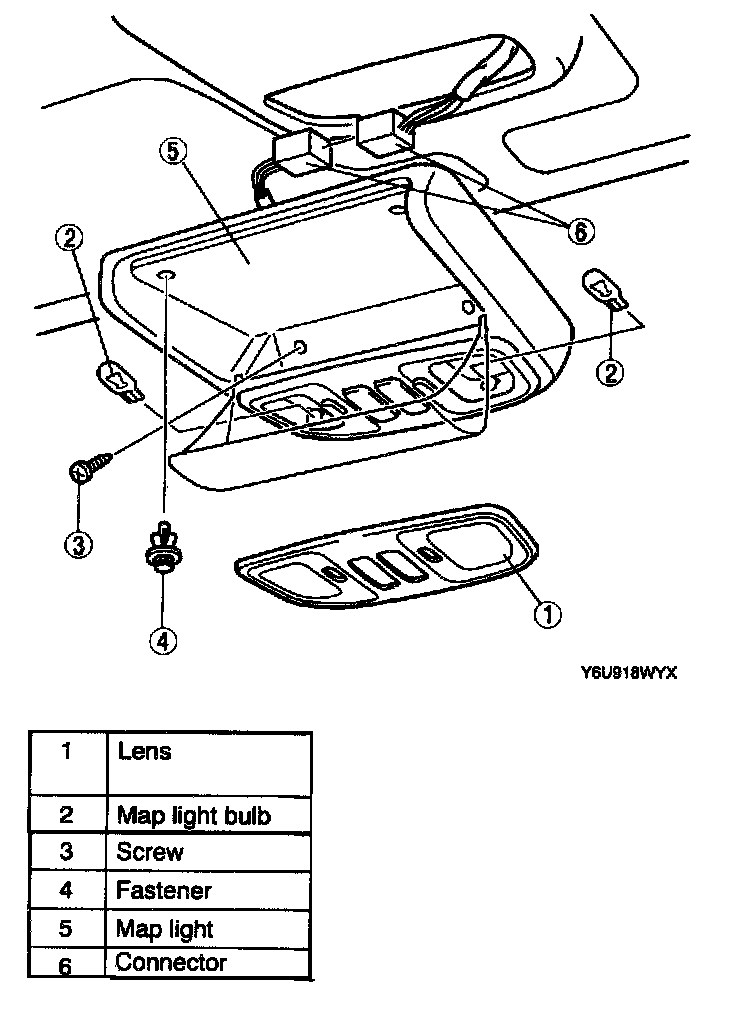

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

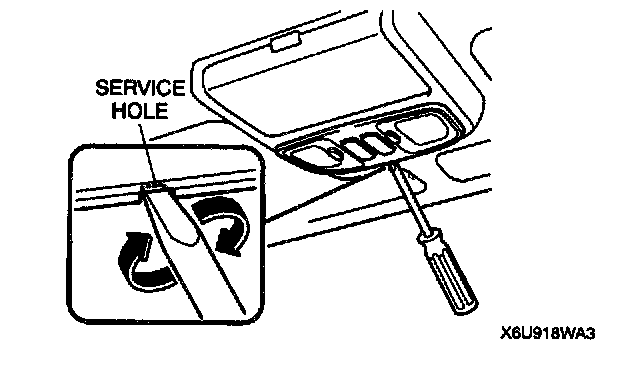

Lens Removal Note
1. Insert a tape-wrapped, flathead screwdriver into the service hole.
2. Twist the flathead screwdriver indicated by the arrow to remove the lens.
