Front Fender: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the mud guard.
3. Remove the front bumper.
4. Remove the front fender seal plate.

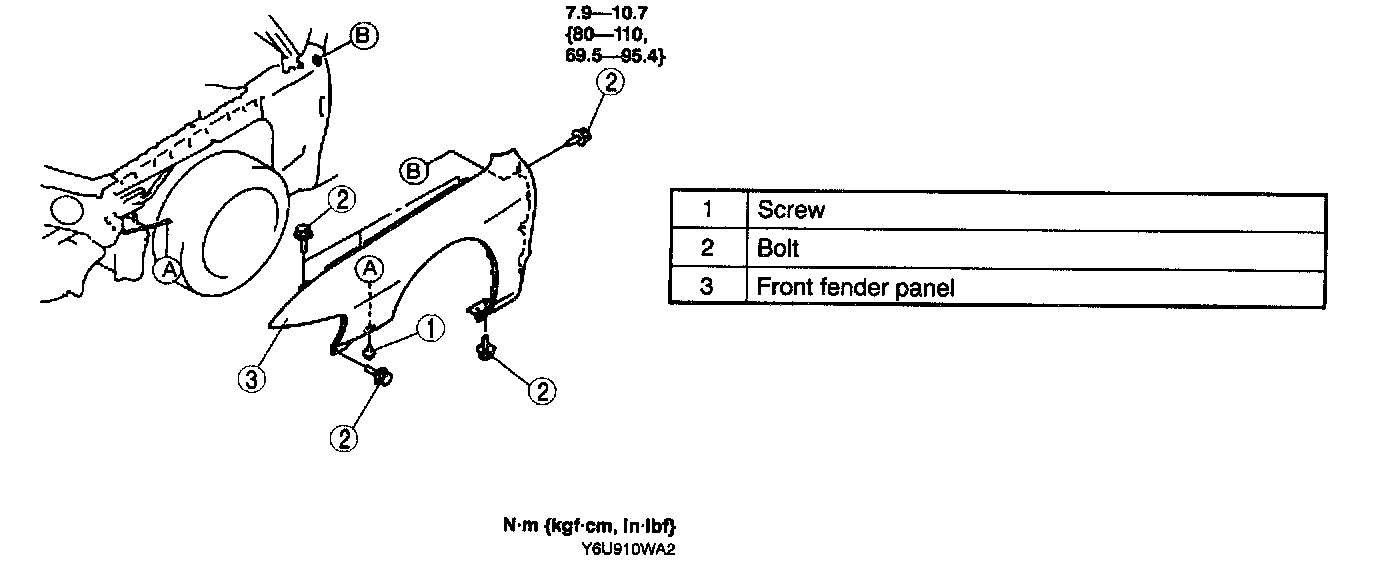

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Adjust the headlight aiming.
