Disassembly and Reassembly

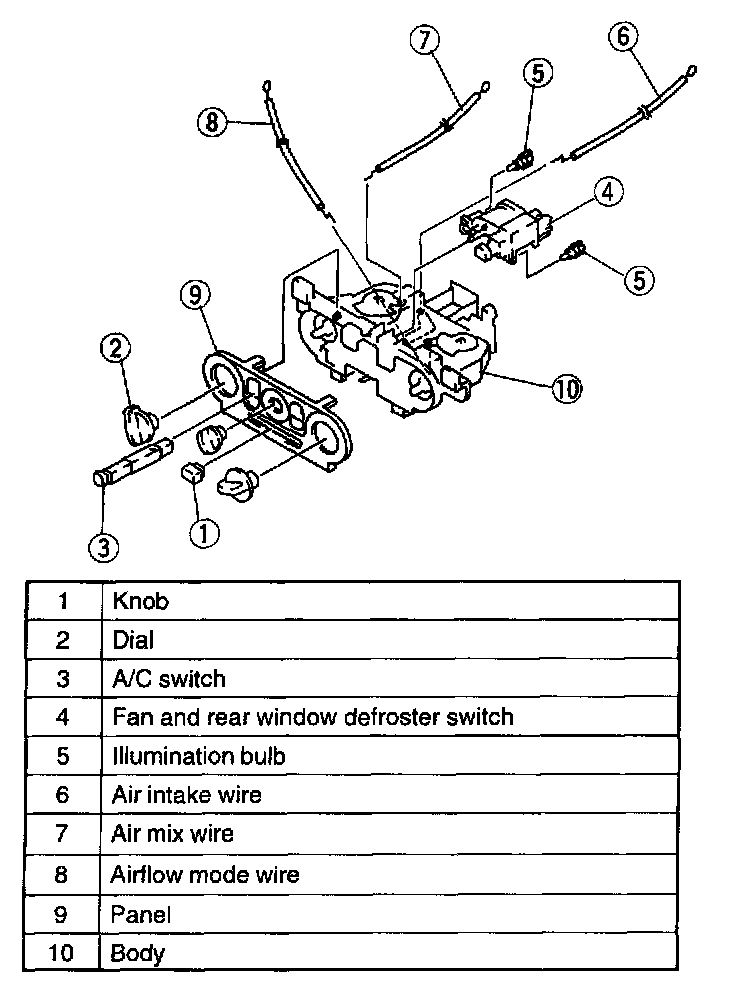

CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

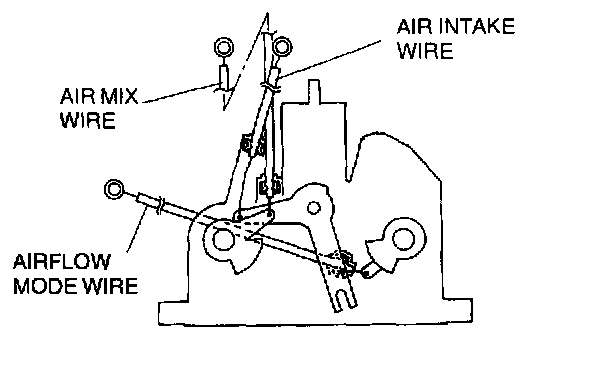

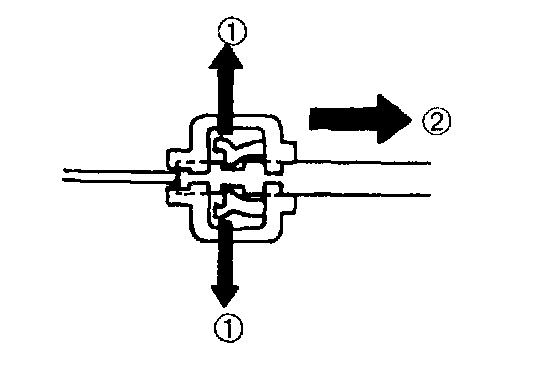

Wire Disassembly Note




1. Disassemble the wires in the order shown in the table.

Wire Assembly Note




1. Assemble the wires in the order shown in the table.
