Solar Sensor: Service and Repair

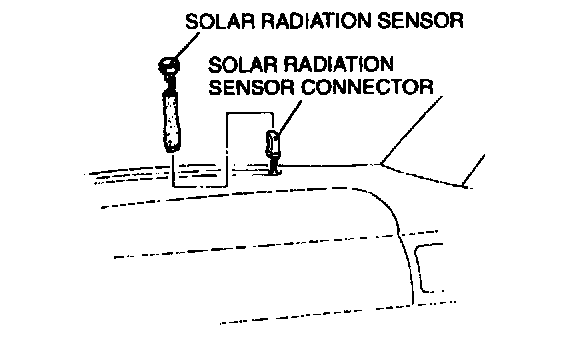

SOLAR RADIATION SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the solar radiation sensor from the dashboard by using a flathead screwdriver wrapped in tape.




3. Disconnect the solar radiation sensor connector.
4. Install in the reverse order of removal.
