Removal and Installation

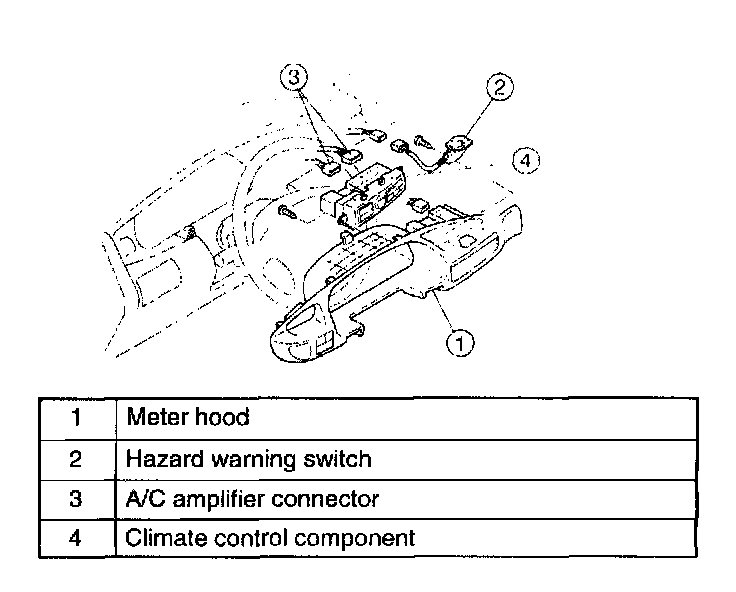

CLIMATE CONTROL COMPONENT REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
