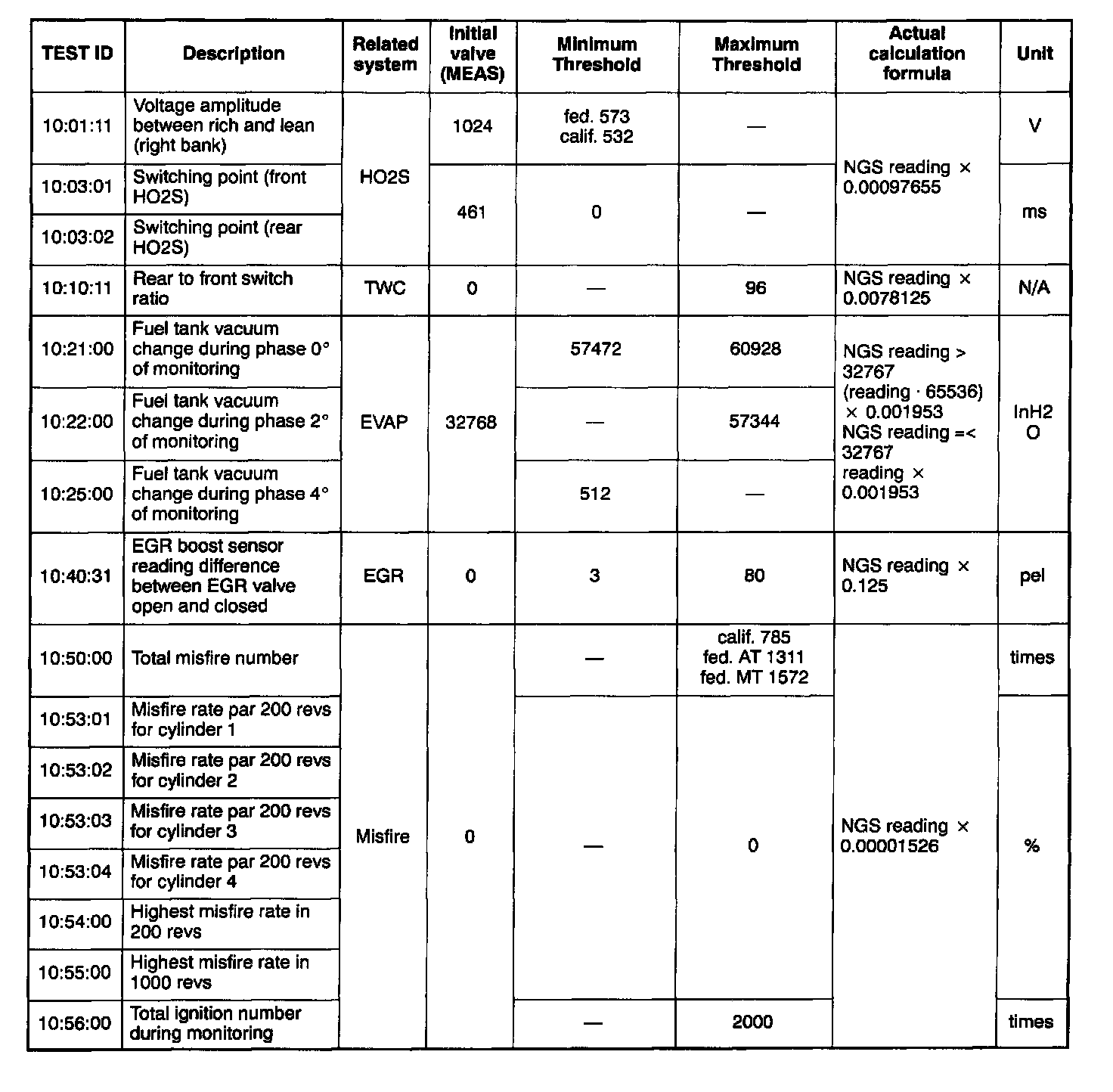

Mode 6 Data

Diagnostic Monitoring Test Result





The purpose of this test mode is to confirm the result of OBD II monitor diagnostic test results. The result values stored when particular monitor is completed are displayed. If the monitor is not completed, initial value is displayed.
